Model:
RC-31Brand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | RC-31 |
| Product Name | Magnetic Door Sensor |

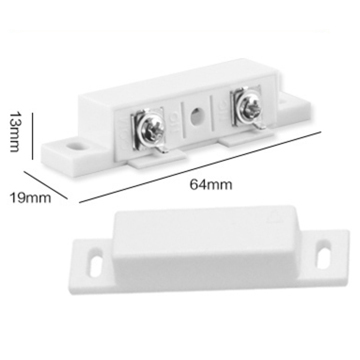

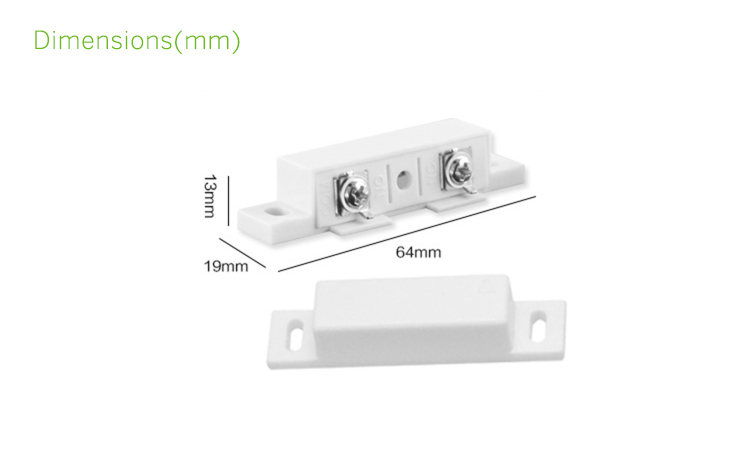

| Dimension | 64x19x13(mm) |
| Sensor Distance | 15-25mm |

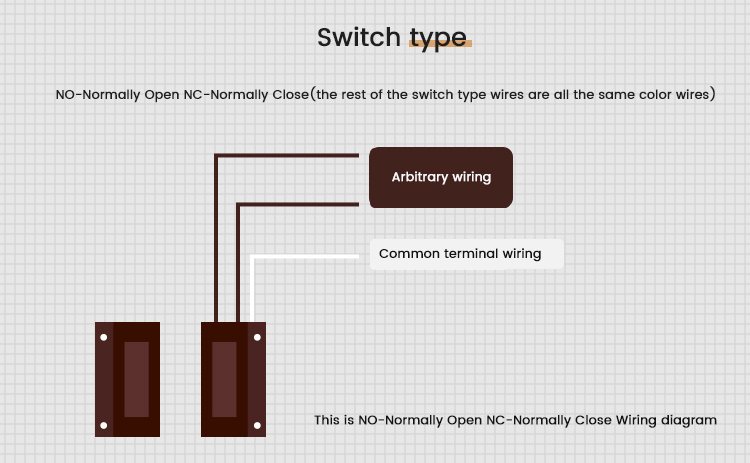

| Output | NO/COM, NC/COM, NO/NC/COM |
| Max Rating | 10W |
| Max Voltage | 100V |
| Max Current | 0.5A |
| Material | ABS, Plastic color |
| Lead | 1007UL#22AWG 260mm |
| Suit for | Wooden door |
