433MHz 1527 Wireless Magnetic Door Sensor

WDS-433_x000d_
  • Model:

    WDS-433
  • Brand:

    JINYING
  • Parameters

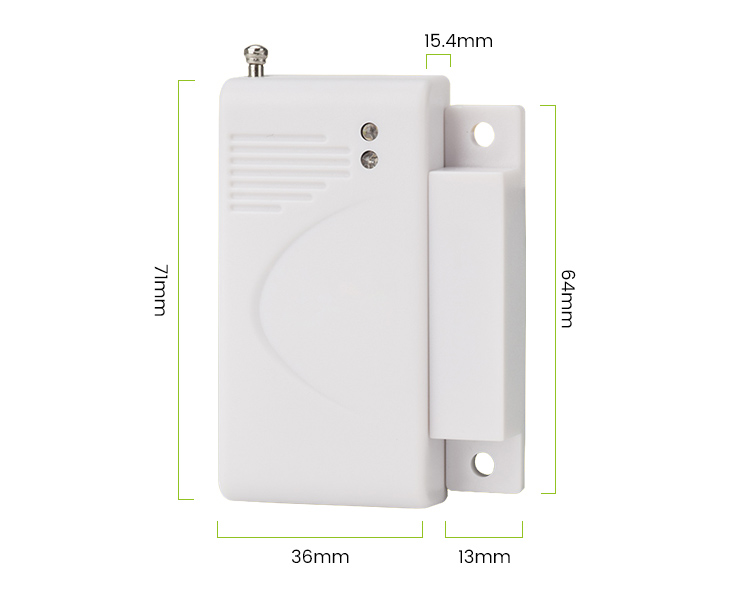

  • Dimensions
  • Diagram

Wireless Door Sensor

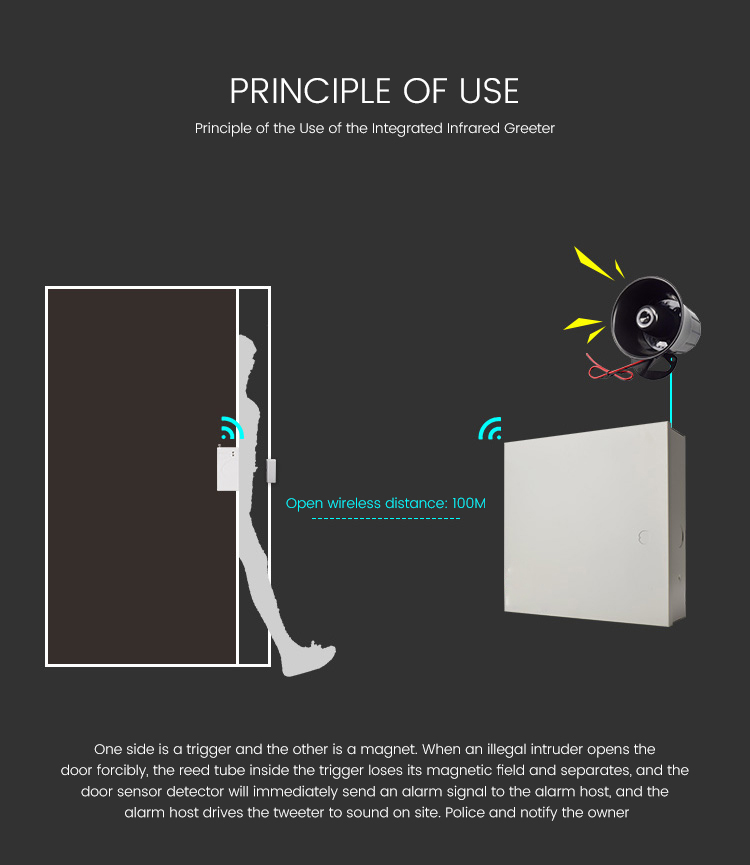

This is wireless sensor communicates with the security panel wirelessly using RF signals.

The RF signal that the door and window contact uses must be compatible with your alarm system.

Depending on your alarm system, there may be encrypted door and window sensors that you can use for an added layer of protection.


Product ParameterParameter Description
JINYINGModelWDS-433
Product NameWireless Magnetic Door Sensor


Power supply12V 23A battery
Working current≤3uA (static), ≤10mA (alarm)
Magnetron distance10mm
Transmit frequency433MHz
Wireless distanceOpen distance 100m
Operating temperature-10~50
Factory standardWireless door sensor, double-sided tape, 12V 23A battery

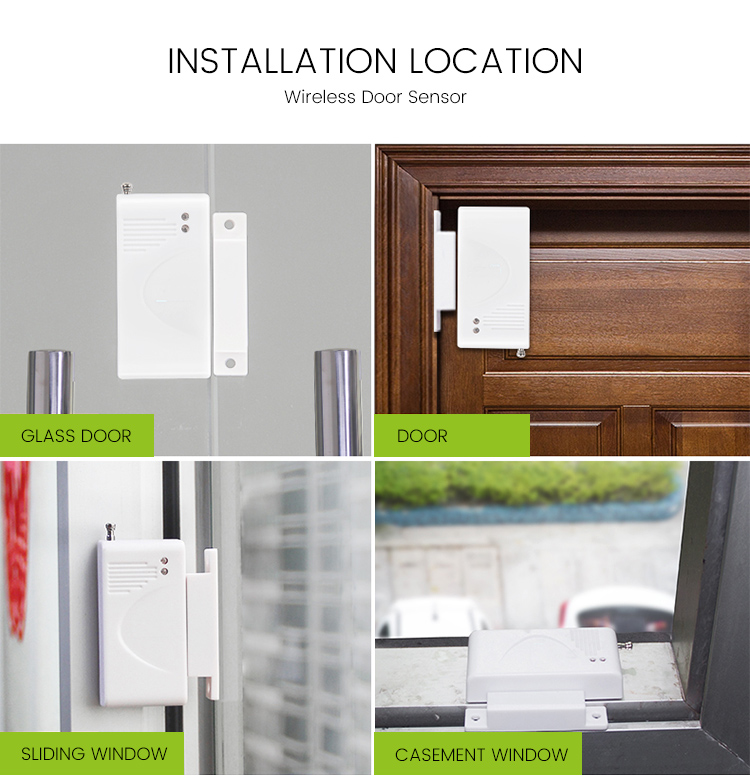

PrecautionsThe door sensor can be installed on wooden doors, aluminum alloy doors, windows and other non-ferrous doors and windows
