| Product Parameter | Parameter Description |
| JINYINGModel | B12-A |

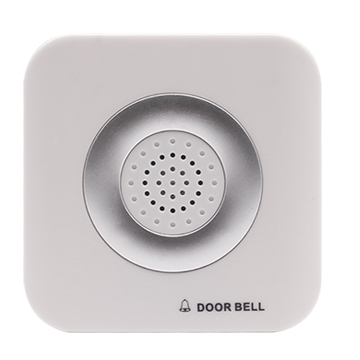

| Product Name | 12V Wired Doorbell |
| Surface Material | Fireproof ABS Material |
| Operating temperature | -10℃ ~ 80℃ |
| Working humidity | < 80% |
| Power supply | DC12V |

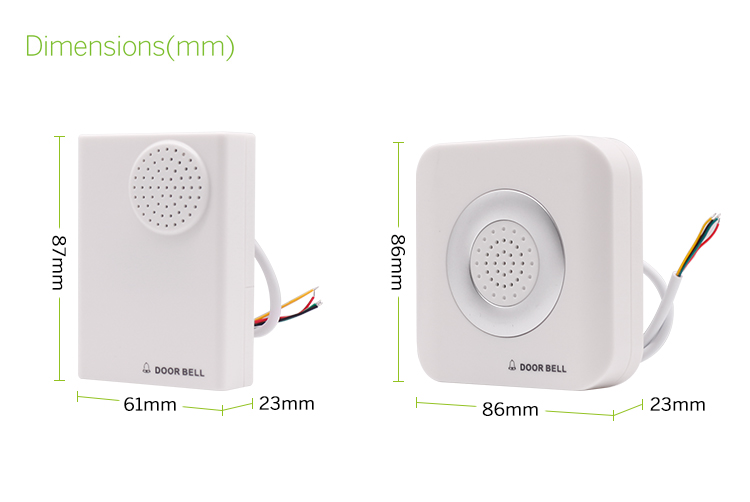

| Dimenion | 86 x 86 x 23mm |

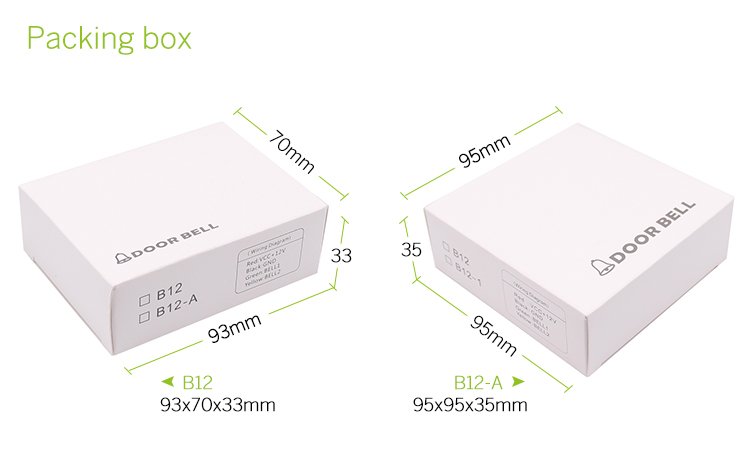

| Packing box | 95 x 95 x 35mm |
| Weight | 0.04kg |

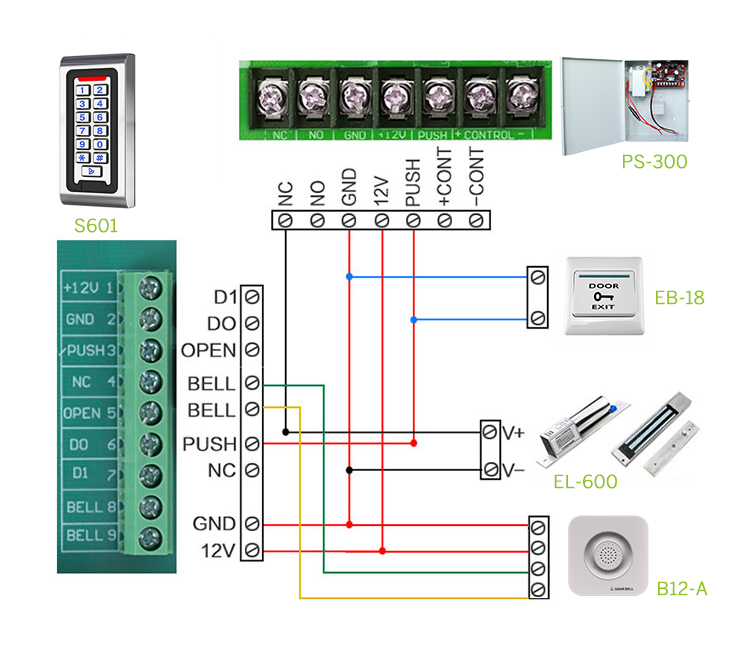

| Used Method | Work with door Bell exit button and access control |
| Application | Hotel, Office, apartment, private villa etc |
| Red | VCC +12V |
| Black | GND |
| Green | BELL1 |
| Yellow | BELL2 |
