| JINYINGModel | ABT-II-40 | ABT-II-60 | ABT-II-80 | ABT-II-100 |
| Detecting Distance | 40m | 60m | 80m | 100m |
| Usage | Perimeter Intrusion Detection | |||
| Beam | Dual Beam Active IR Beam Detector | |||
| Working Voltage | DC 12V | |||
| Working Current | 65mA max | |||
| Induction speed | 50-700ms | |||
| Alarm Output | Relay output NC / NO ;Contact capacity:AC/DC 30V 0.5A max | |||
| Anti Tamper Switch | NC,opens when cover is removed | |||
| Operating temperature | -25°C~+55°C | |||
| Certificate | CE FCC ROHS IP55 | |||
| Case Material | PC | |||

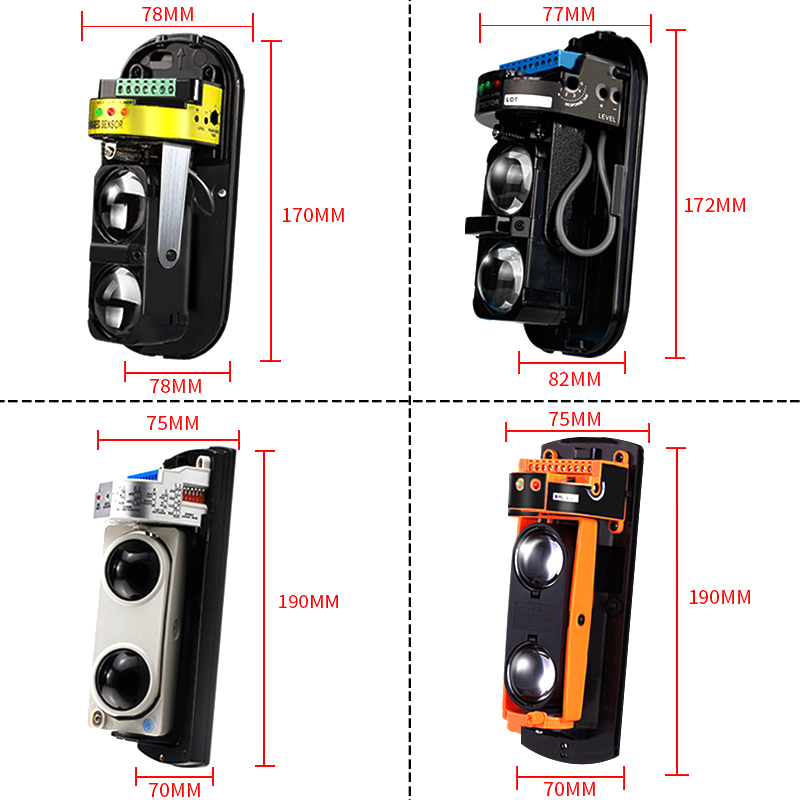

| Dimensions | 172*82*77mm | |||
