Single-Beam Infrared Barrier

BS-20
  • Model:

    BS-20
  • Brand:

    JINYING
  • Parameters
  • Dimensions
  • Diagram

Features

> Anti-glare up to 50,000LUX, built-in automatic adjustment of glare filtration system, to avoid the impact of light or car lighting

> All-weather sealed rain (fog), dust (insects) and other integrated structure designed to work in harsh environments

> Detector automatically increases sensitivity when fog or bad weather conditions (AGC circuit)

> High level of anti-RFI / EMI capability

> Unique digital filter circuit design

> High-power transmitter devices, 90% sensitivity margin High-power infrared receiver on the tube, low-power processing technology Anti-lightning circuit design

> With rain cover design

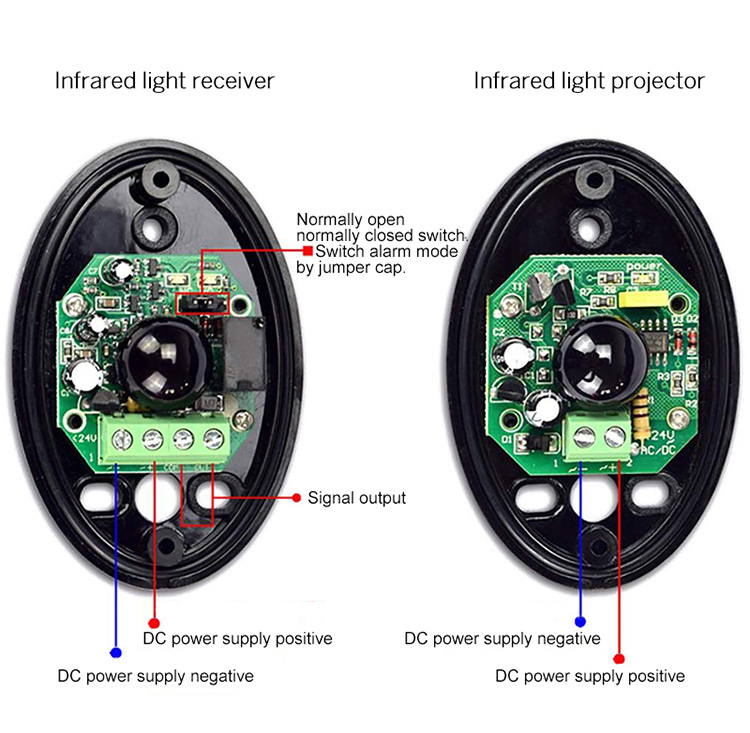

> C-type relay output

> Adjustable beam interruption period to make it more flexible and adaptable

> Professional anti-interference optical cover



Product ParameterParameter Description
JINYINGModelBS-20
Product NameSingle-Beam Infrared Barrier

ColorBlack
Wave length940nm
Operating Voltage12-24V DC

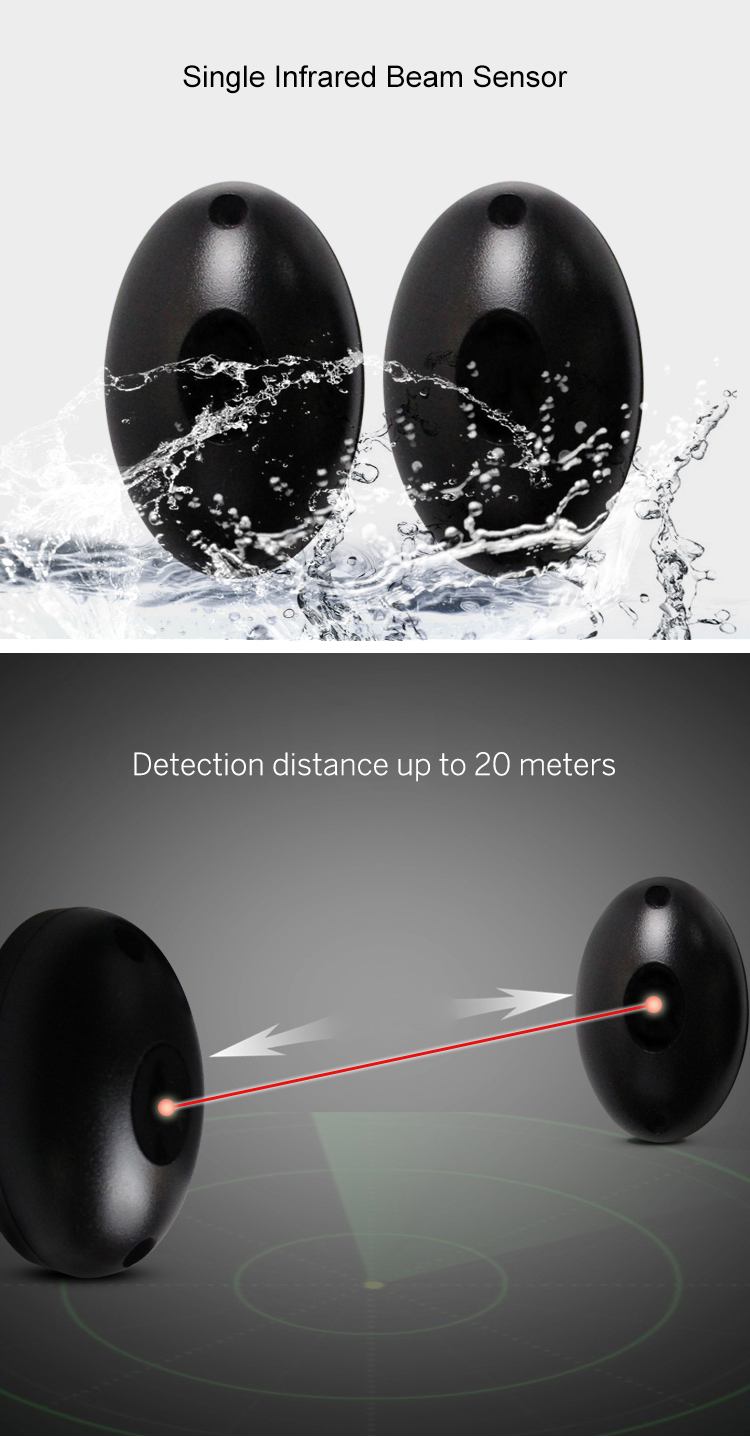

Detection distance≤20M
Frequency1.92KHz
Operating Temperature-25℃ ~ 55℃

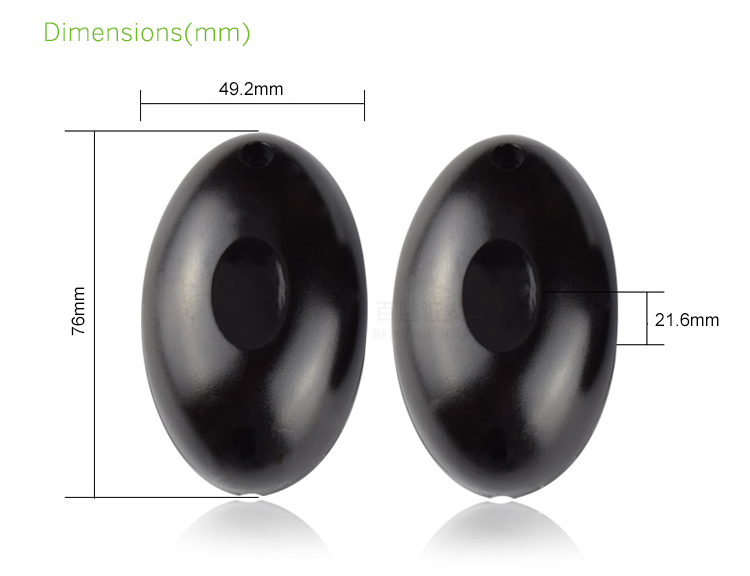

Dimensions76x49.2x21.6mm








JINYINGModelBS-20
Product NameSingle-Beam Infrared Barrier
Packing Quantity200 PCS/CTN
Packing Size49.5*45*36cm
Gross Weight30KG
