ACB-001,ACB-002,ACB-004

Access Control Board how to Setup Web Controller function:

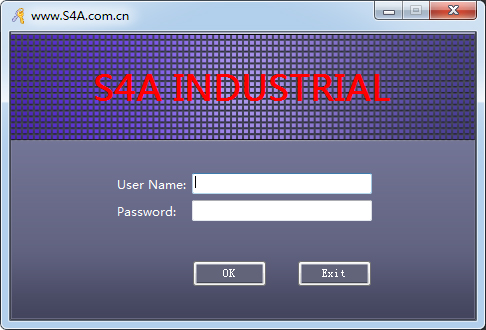

Install software,this is interface when we installed..

User Name: abc

Password: 123

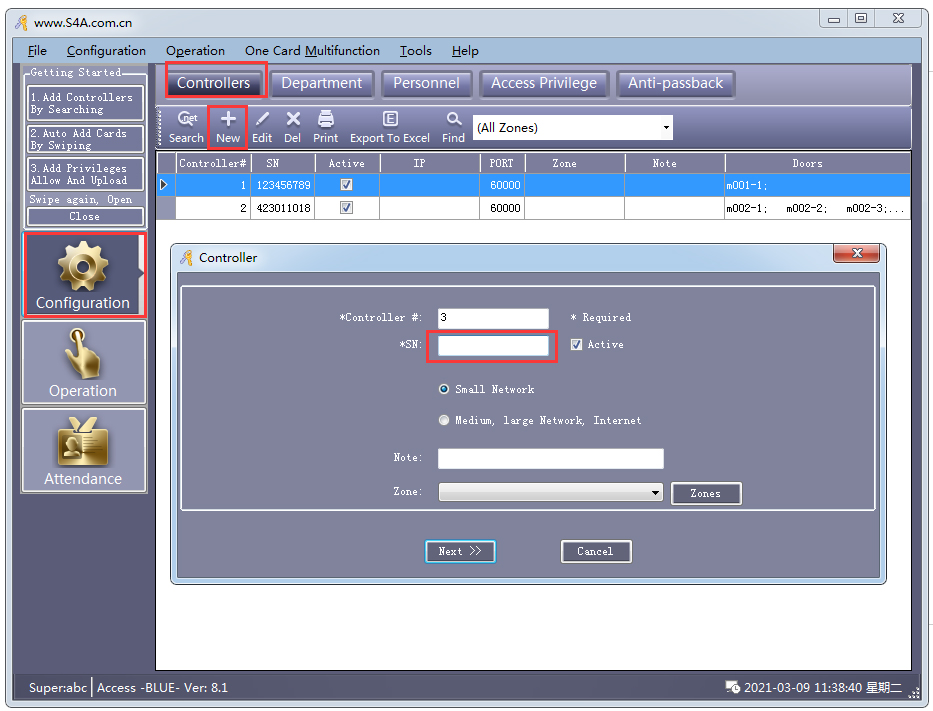

1.Add New Controller:

click  “ Configuration ” >> " Controllers " >> " New " >> Input " SN "

 each Board come with only 1 SN ( You can find in JINYINGAccess Control Board hardware )

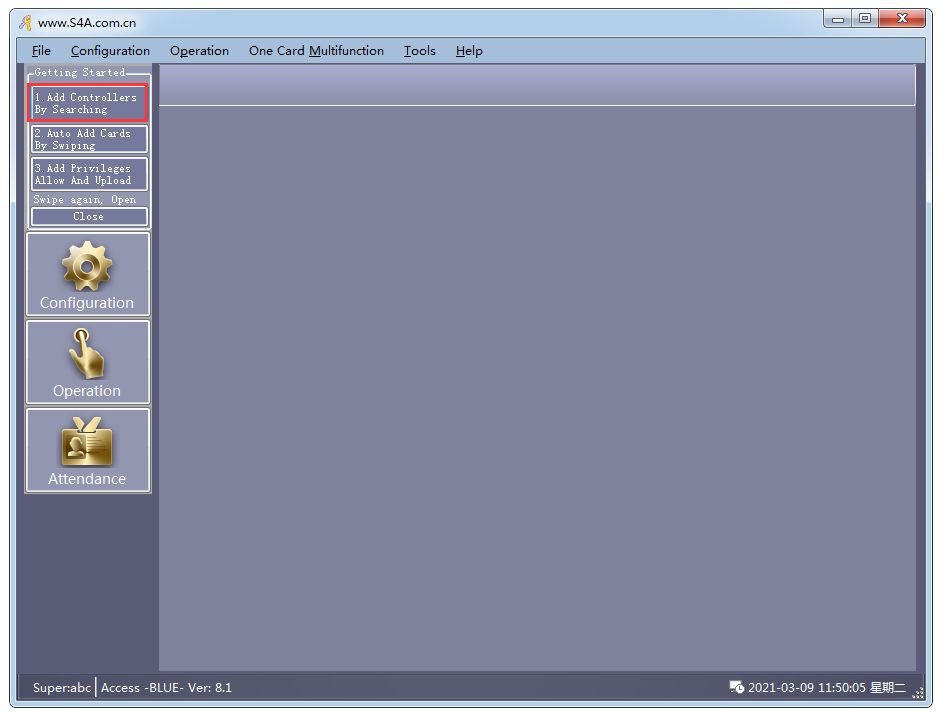

2.Click “ Add Controllers By Searching ":

3. After click,it will has this interface:

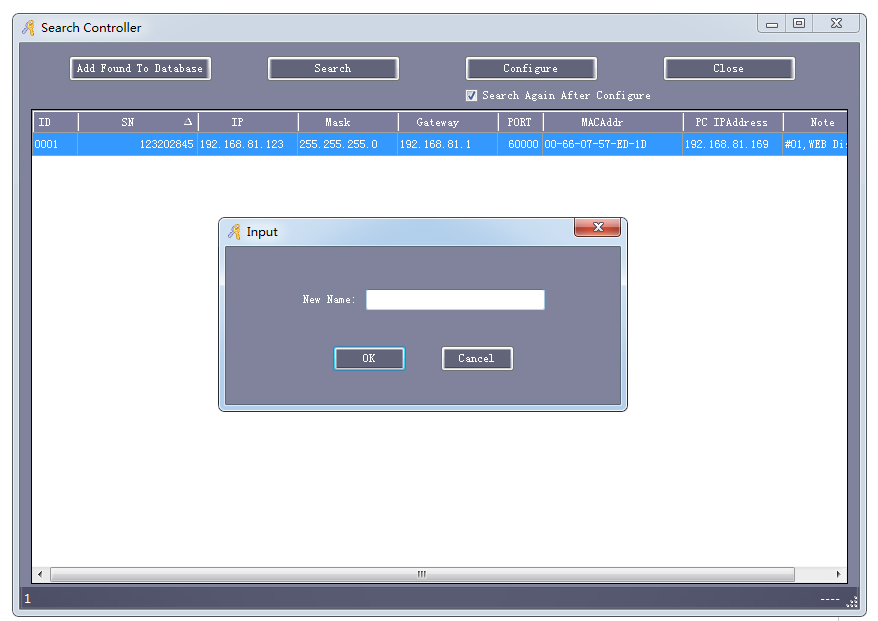

4. Please click blank space...click CTRL+SHIFT+Q. it will has this interface.

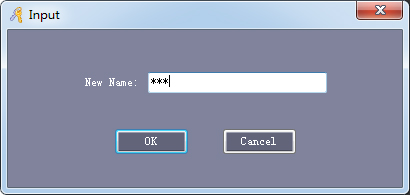

5: New Name: Please input web, then finished as below:

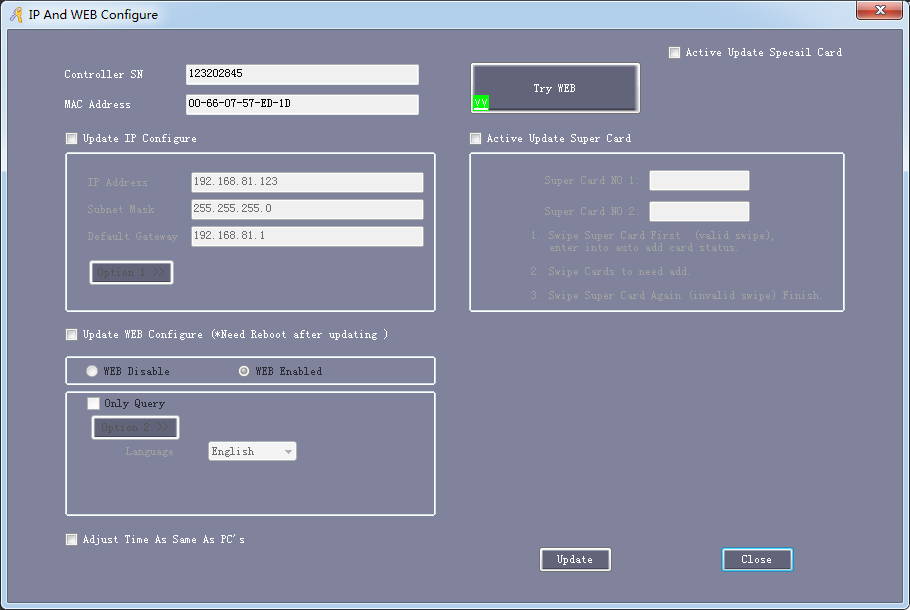

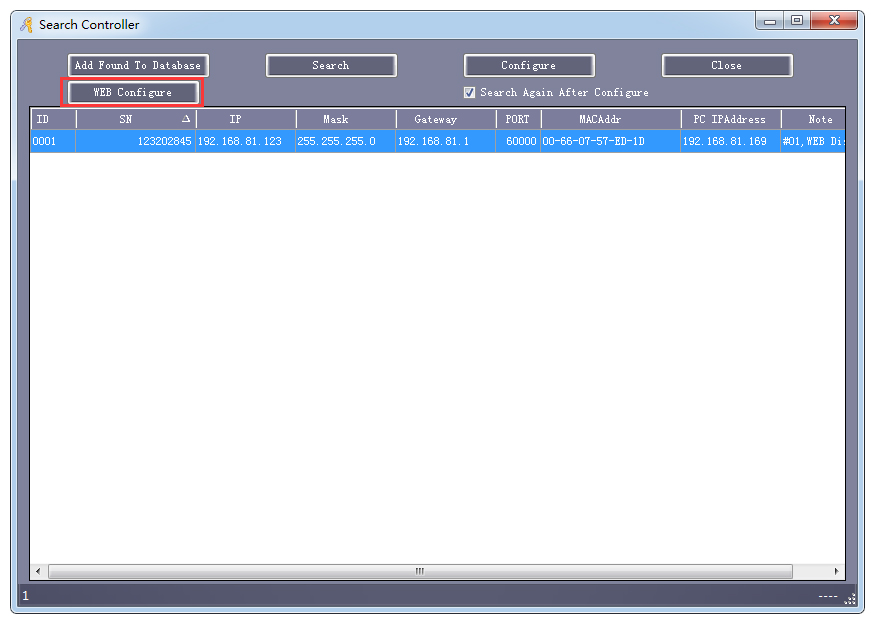

6. IP And WEB Configure:

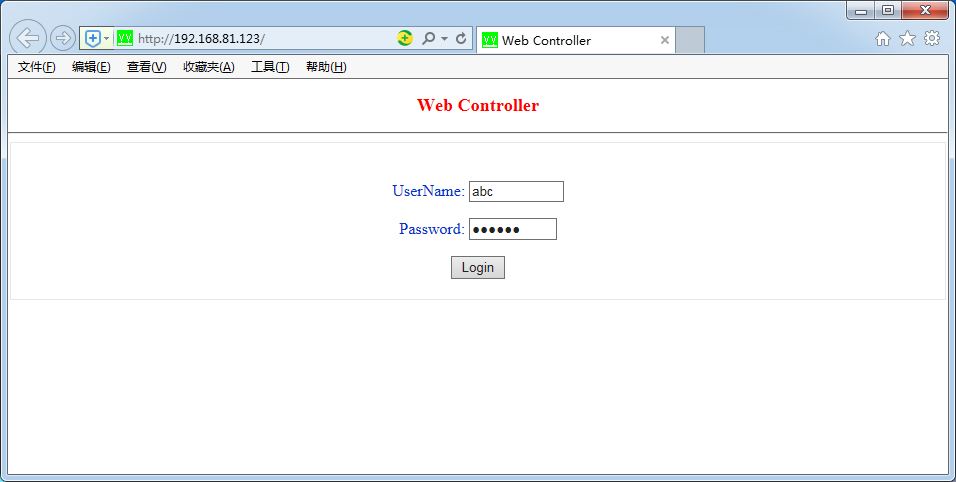

7. Click " Try WEB ", You can check Web Controller function as below

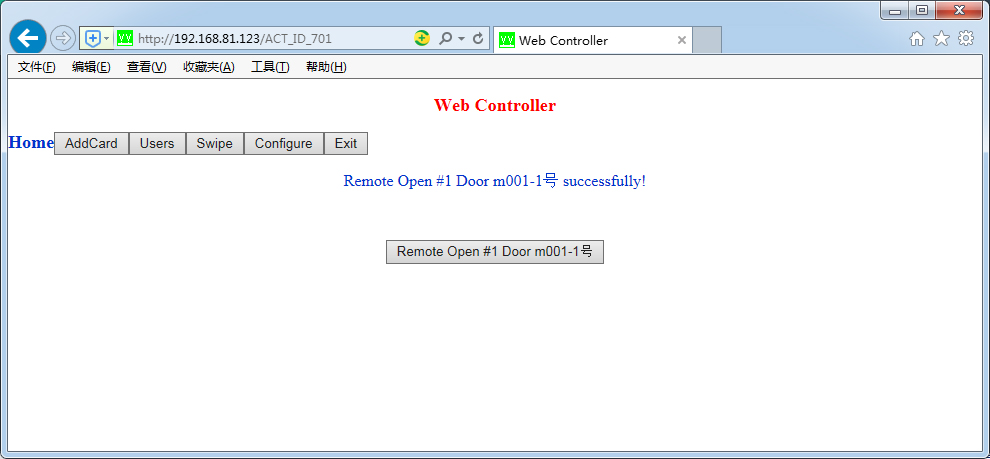

Remote Open Door

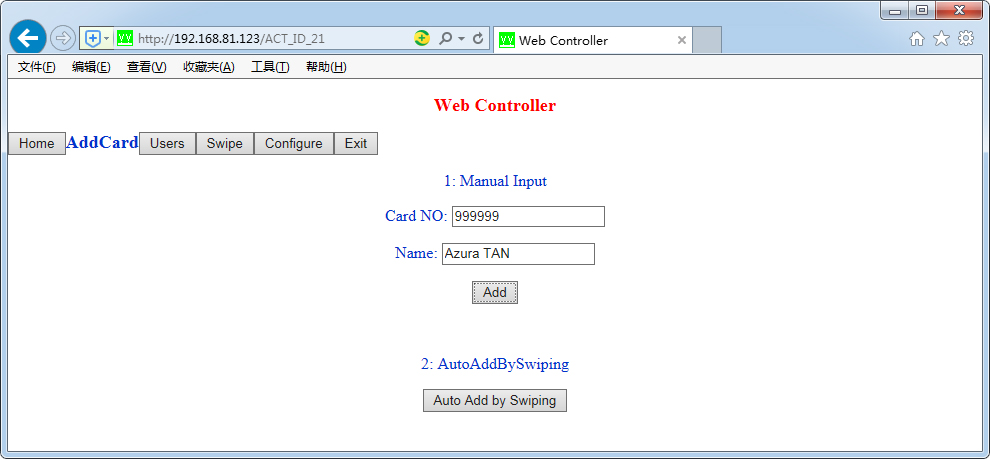

Add Card

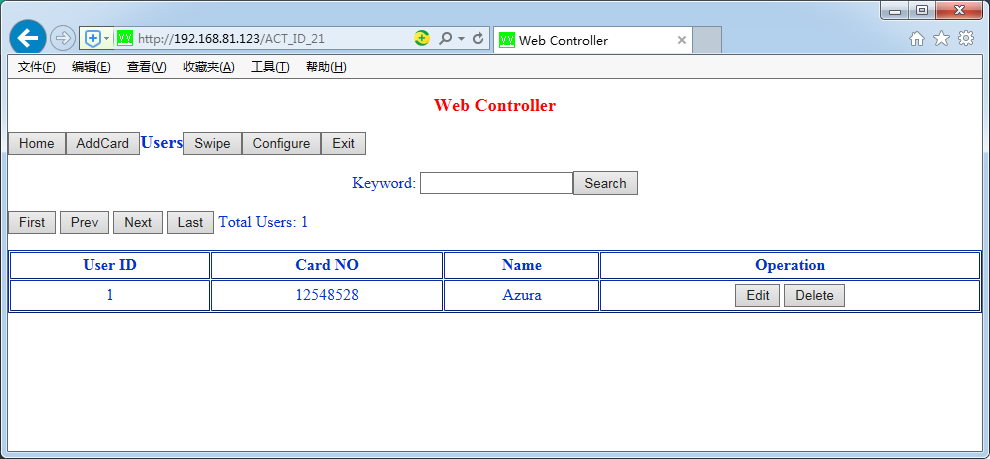

Users

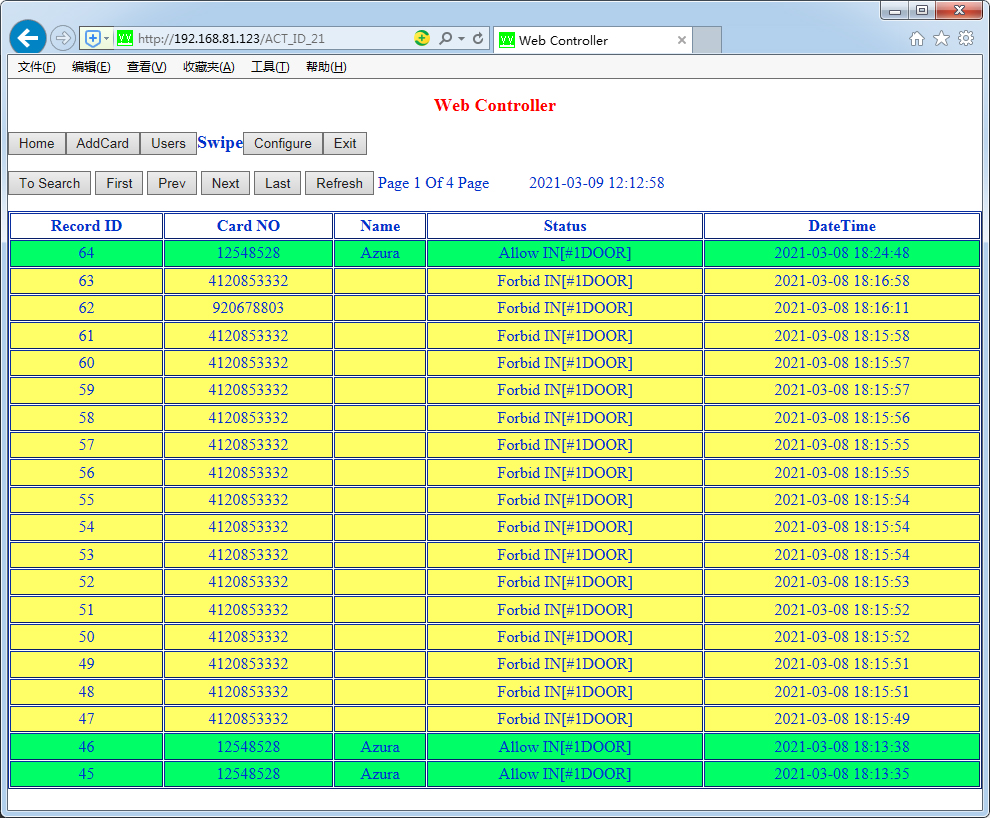

Swipe Record

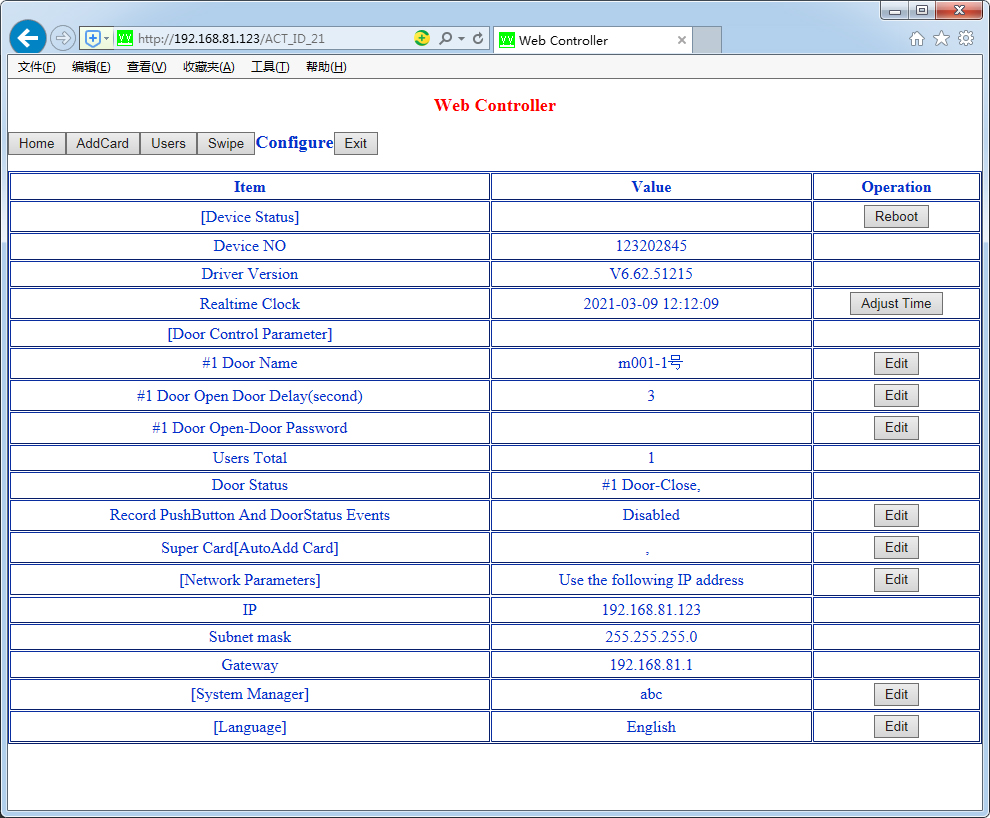

Configure

Any inquires, pls contact JINYINGTeam..Thanks!
