| Product Parameter | Parameter Description |
| JINYINGModel | CB-90C |
| Product Name | 12V Electric Cabinet Lock |
| Working Mode | Fail-Safe Mode |
| Voltage | DC12V/0.3A (default ); DC24V/0.2A ( option ) |

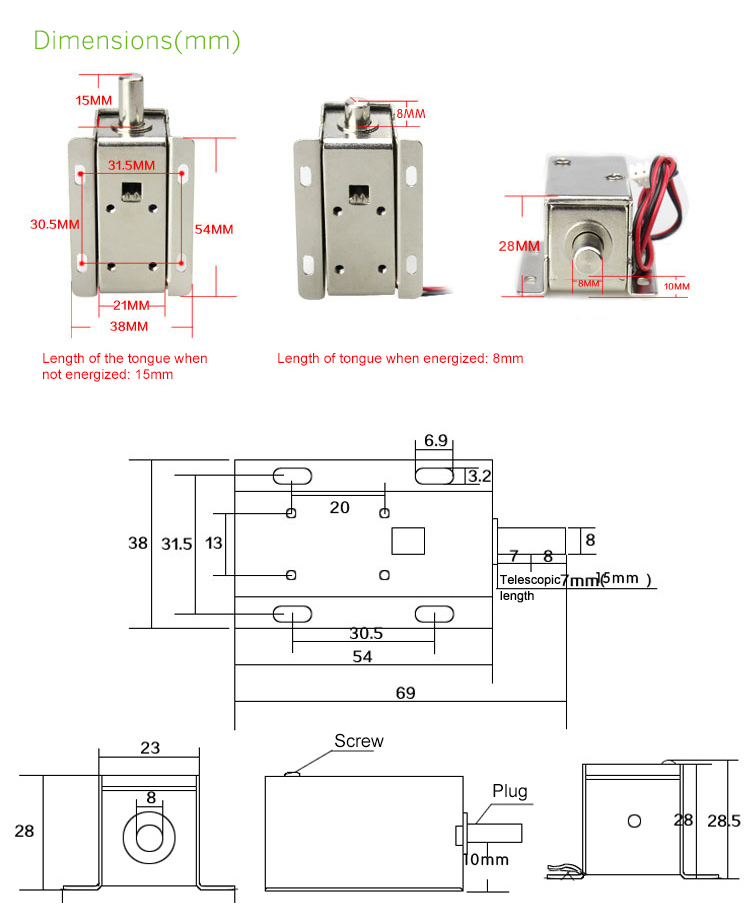

| Lock size | 55*23*28mm |
| Power On | Support Power on all the time |
| Tongue holding force | <=0.5N (50G) |
| Tongue Length | 7mm |
| Temperature | -40℃~+50℃ |
| Suitable for | File Cabinet ,Disply Cabinet |
| Weight | 0.18KG |
