Model:
EL-200Brand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel No. | EL-100 |

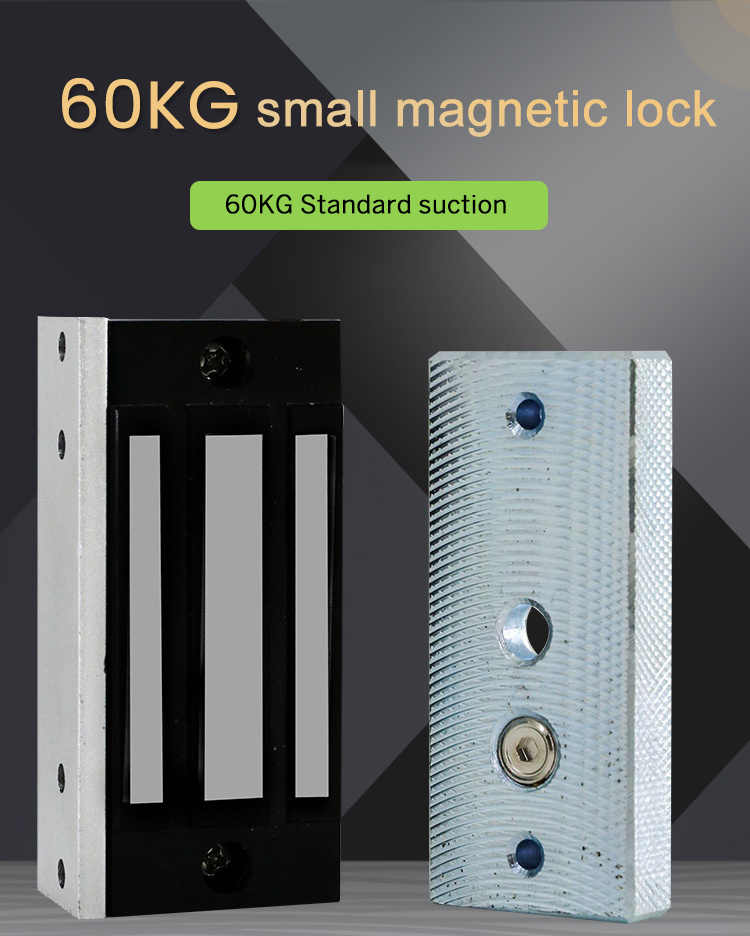

| Product Name | 60KG Mini Electromagnetic Lock |

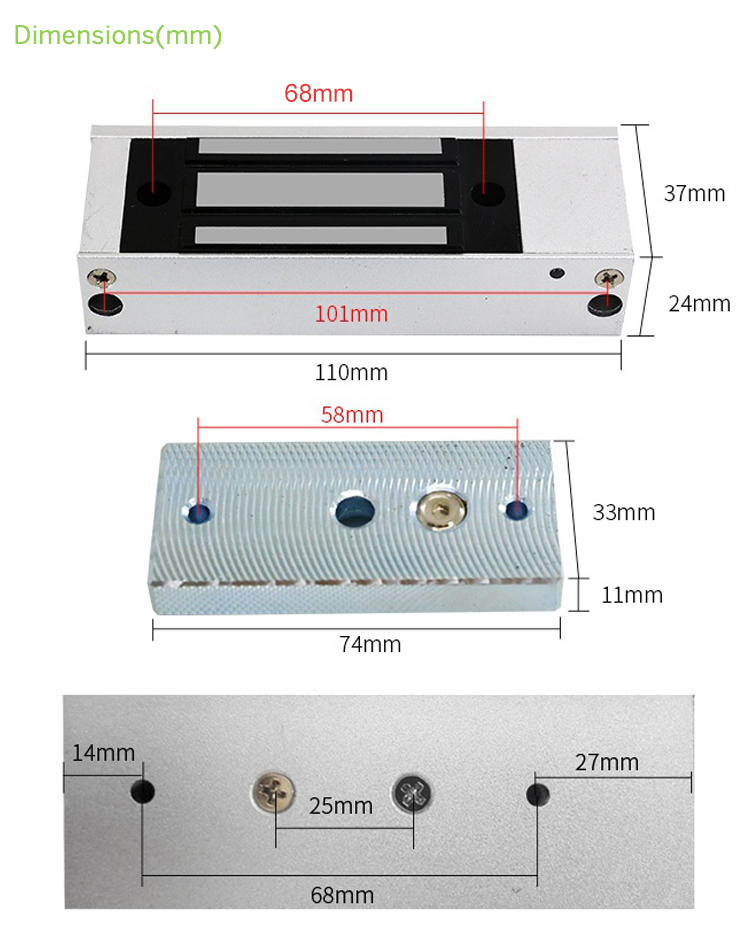

| Lock Size | 110Lx37Wx24H(mm) |
| Armature Plate Dimension | 74Lx33Wx11H(mm) |
| Input Voltage | DC12V (Option DC24V) |
| Current | 12V/160mA(±10%);24V/240mA(±10%) |
| Maximum pull | 60kg linear pull |
| Lock body treatment | electroplating treatment |

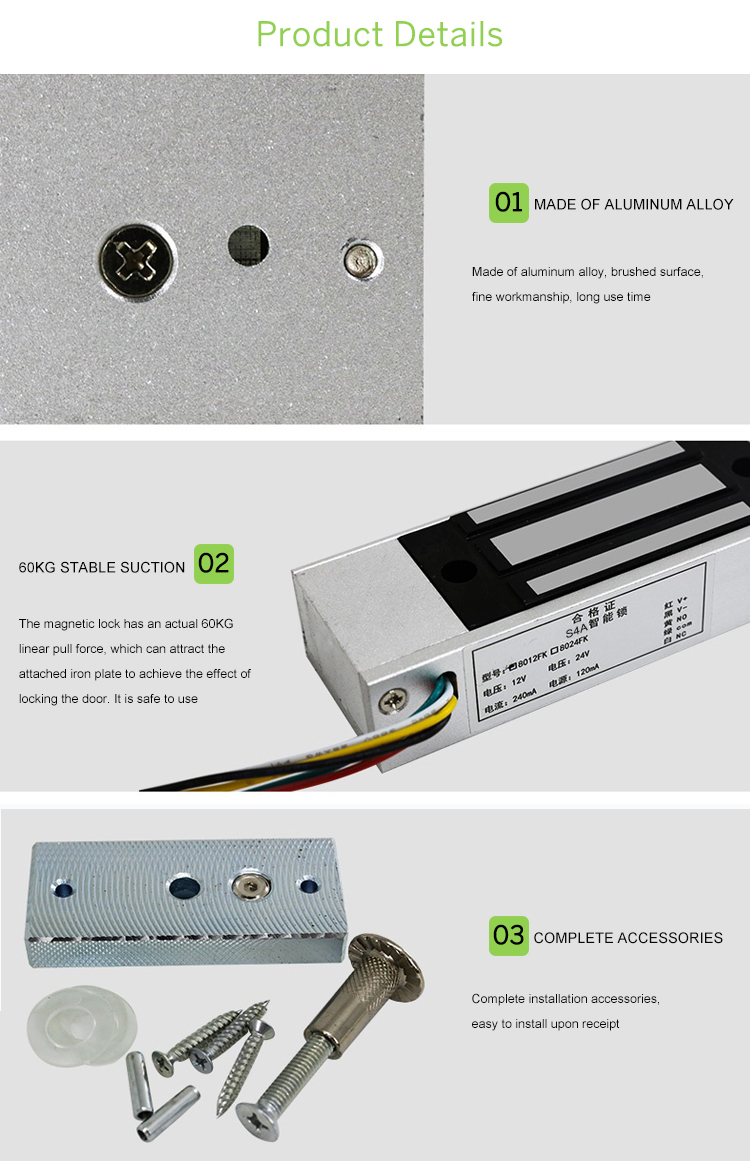

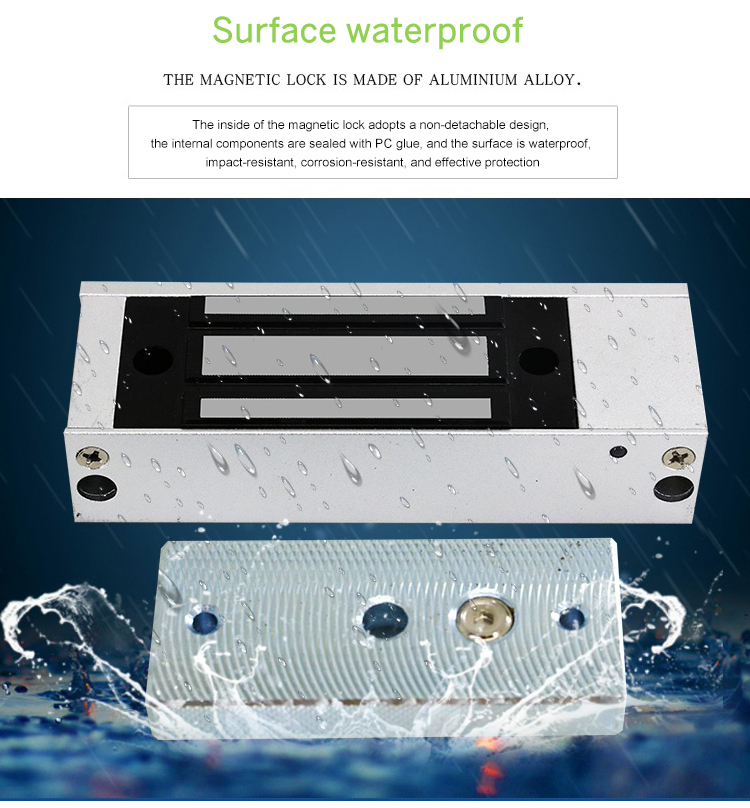

| Shell material | aluminum alloy shell |
| Suitable | File Cabinet ,Display Cabinet |
| Surface Temp | ≤+20℃ |
| Operating Temp | -20℃~+55℃(-4—131°F) |
| Humidity | 0~90%(non-condensing) |
| Safety type | power on to close the door and power off to open the door |
| Applicable door types | drawers, sliding doors, cabinet doors, etc. |
| Protection performance | built-in reverse breakthrough protection function |
