| Product Parameter | Parameter Description |
| JINYINGModel | F20 |
| Product Name | Fingerprint Access Control |
|
| hardware platform | ARM9 |
| fingerprint collector | Fingerprint sensing optical Blu ray fingerprint collector |
| Screen | 2.4 inch TFT-LCD widescreen HD color LCD |
| Fingerprint Capacity | 1000(standard),Can be extended to 3000,5000 |
| Record Capacity | 100000 |
| Communication Modes | USB. RS485, TCP/IP |
| U disk Function | Support upload and download |
| ReadCard module | The standard 125K HZ RFID and optional 13.56MHZ Mifare |
| Wiegand | In&out |
| Recognition Speed | <1s |
| LED | Red&Blue |
| Alert Tone | Buzzer |
| Alarm Function | Anti-dismantle.Force to open door. Open door overtime |
| Language Choice | English |
| Temperature of use | －25℃～45℃ |
| Work humidity | 20%～80% |
| Power supply | +12V |

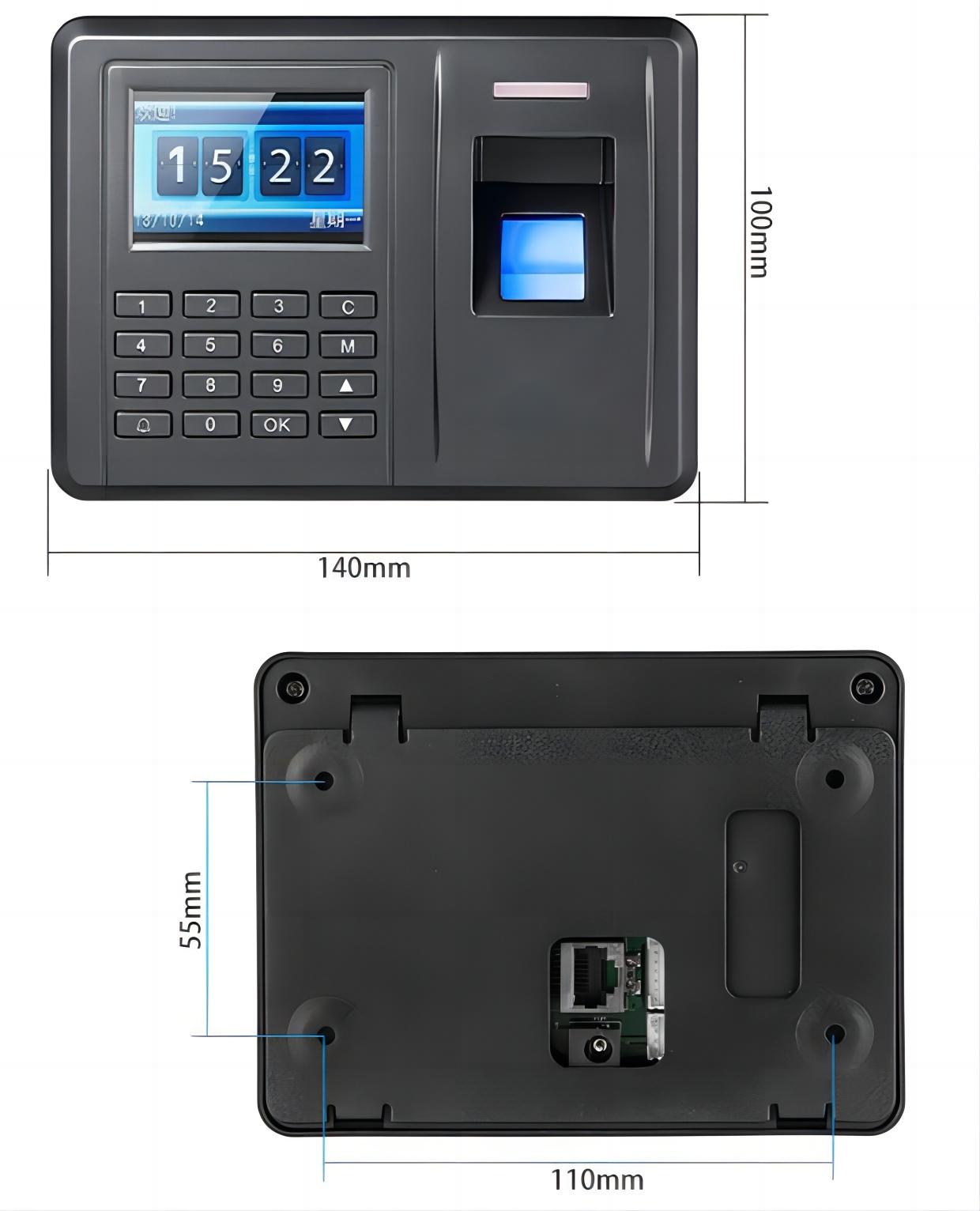

| Size | 140x100x35mm |
