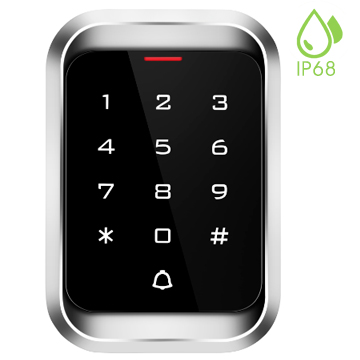

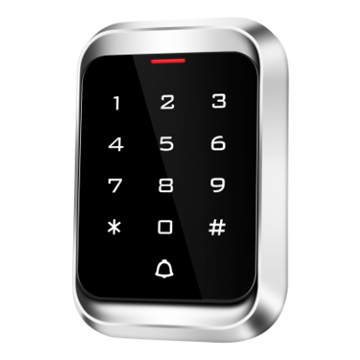

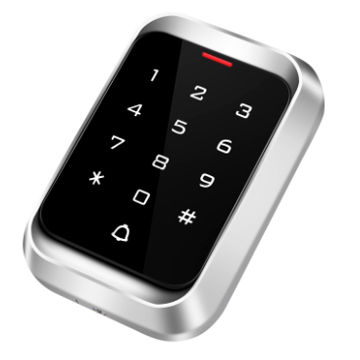

T1302 Professional Direct Factory Price Digital Keypad Touch Screen Door Access Control RFID Card Reader System

Inquiry now

Parameters

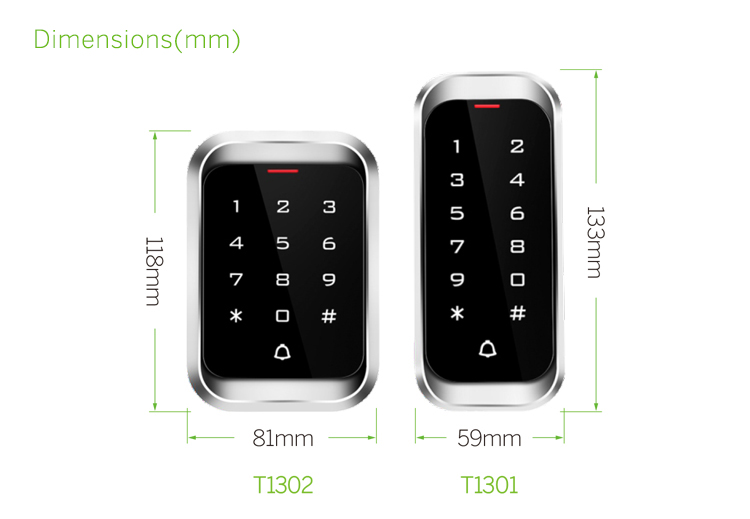

Dimensions

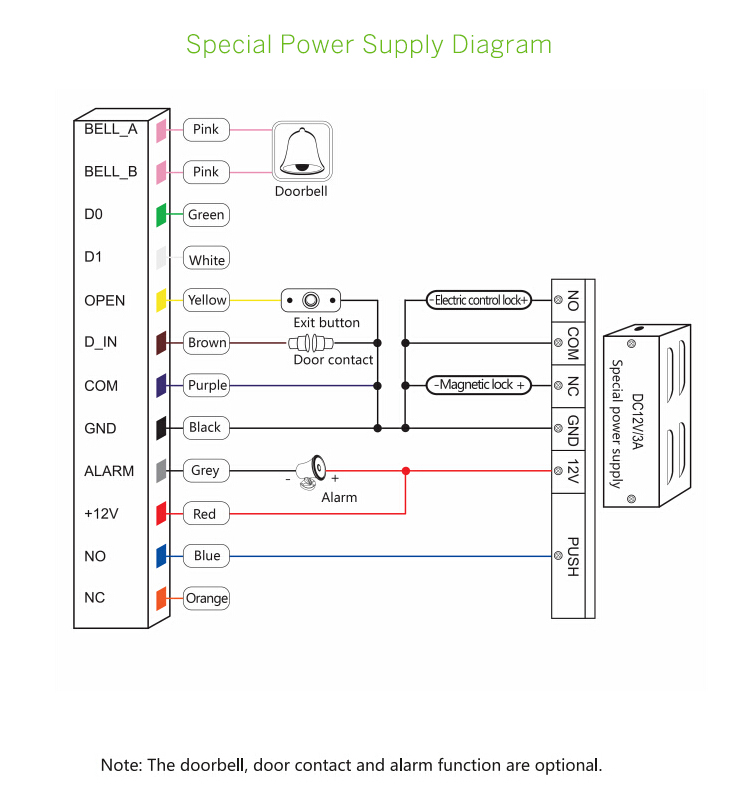

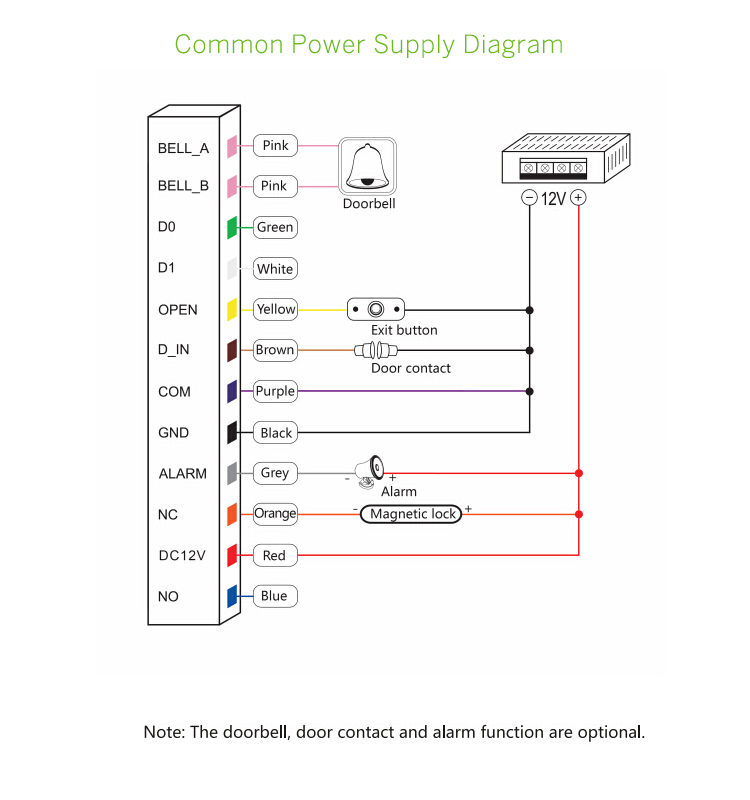

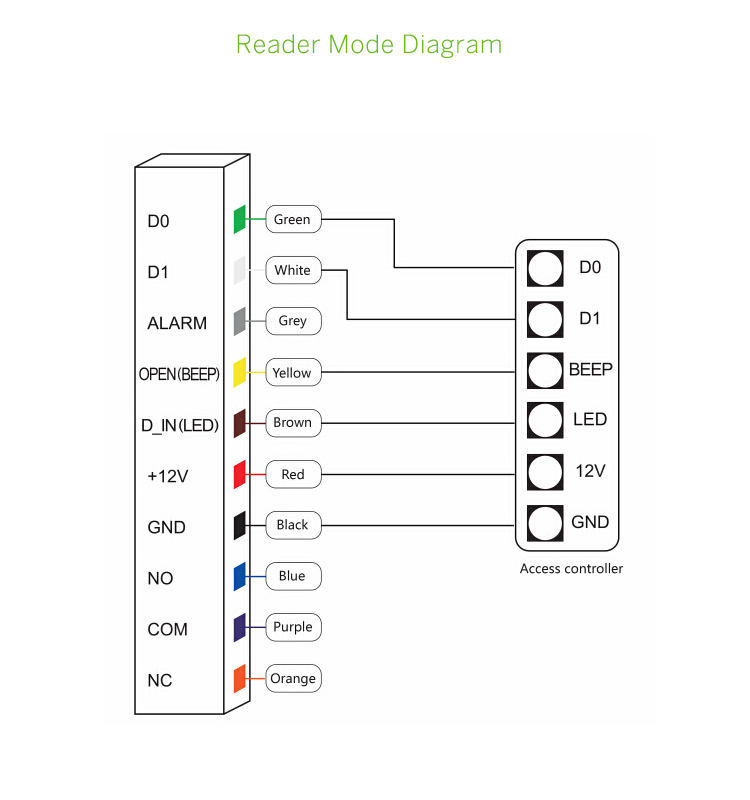

Diagram

Product Feature

> Metal case, anti-vandal

> Digital backlit touch keypad

> Multi-function standalone access controller and reader,

> WG interface: WG26 Input / output

> Capacity: 2000 cards / codes

> Three accesses: card, pin, card + pin

Product Parameter	Parameter Description
Model	T1302
Name	Touch Screen Standalone Access Controller

Card type	EM
Waterproof degree	IP68
Working voltage	DC12-24V
Static electricity	≤35mA
Reading range	2 ~ 5cm
Ambient temperature	-40～60℃
Humidity	10%～90%
Electric lock output	≤1A
Short-circuit protect	≤100μS
Relay output delay time	0-99 s
Dimension	1188121mm

Unit Weight	0.38KG
Standard Package	54PCS
Carton Weight	21.5KG
Carton Size	564041cm
