Model:
EB-NT86ABrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | EB-NT86A |

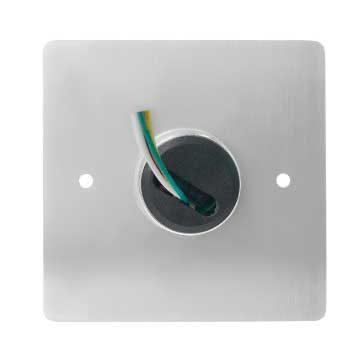

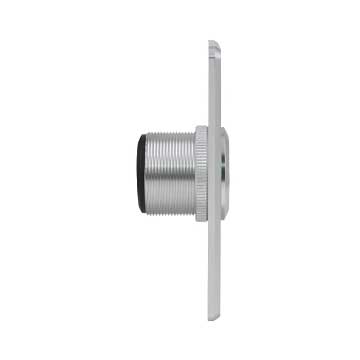

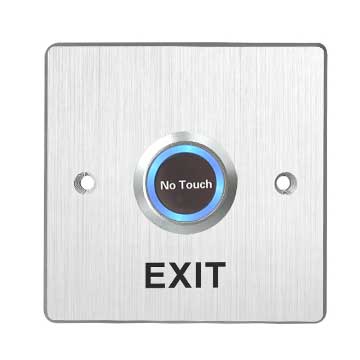

| Product Name | Infrared Sensor Exit Button |
| Material | 4mm Thick Aluminium Alloy (CNC) |

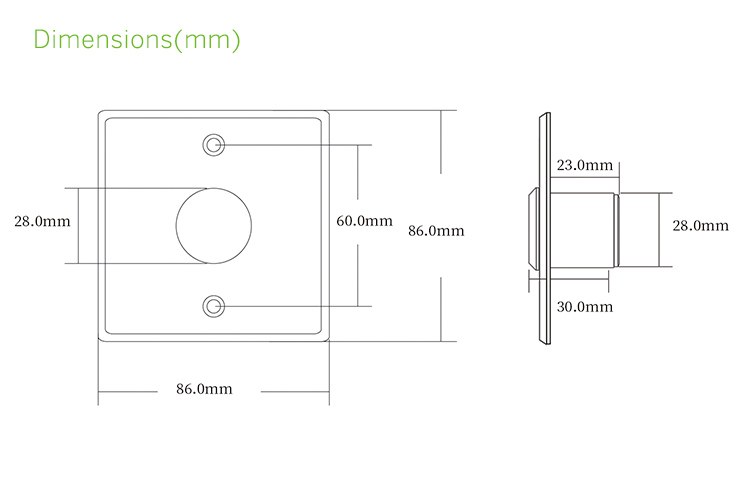

| Dimensions | 86Lx86Wx25H(mm) |
| Contact Rating: | 12-24V,3A |
| Power | 12VDC & 24VDC |
| Sensor distance | 5-10CM |
| Output | NO/NC/COM/+12/GND |
| Mechanical Life | 500,000 Tested |
| Operating Temp | -20℃~+55℃(14-131F) |
| Operating Humidity | 0-95%(relative humidity) |
| LED Indicator | Blue LED Indicator (Standby) |
| Green LED Indicator (Sensation) | |
| Suitable for Door | Hollow Door |
| LOGO | JINYINGcustomizable |
| Unit Weight | 0.12KG |
| Standard Package | 100PCS/carton |
| Carton Weight | 12.5KG |
| Carton Size | 51*45*24cm |
