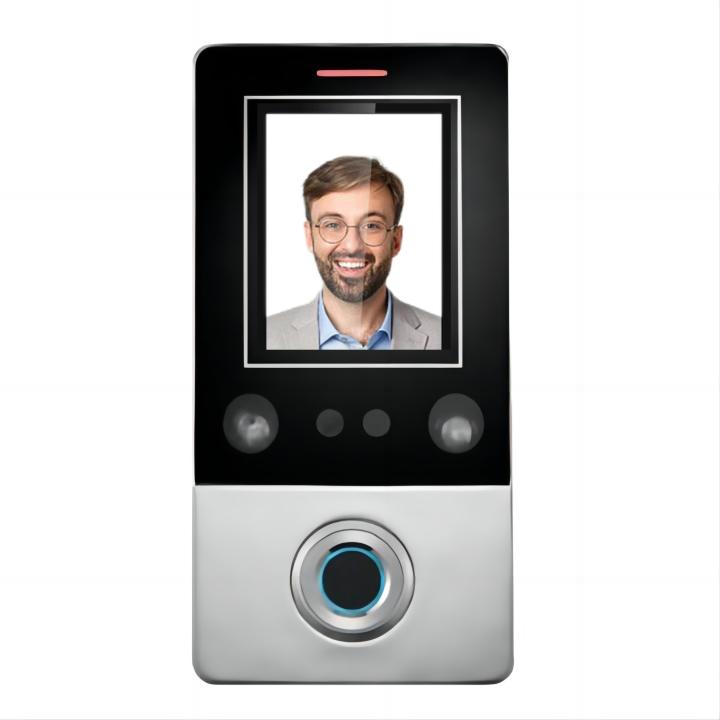

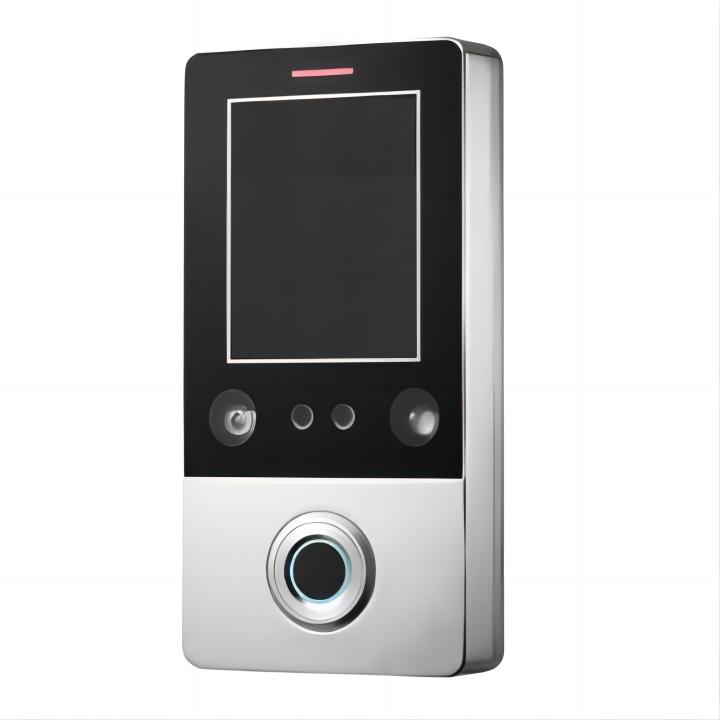

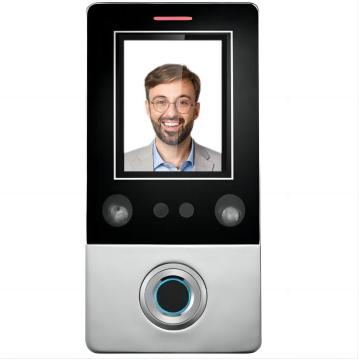

CF1 Metal Facial Standalone Controller

Facial + Finger + ID

Inquiry now

Parameters

Dimensions

Diagram

CF1 is a new generation of multi-function facial recognition Standalone Access Controller and Reader,

Which utilizes the new powerful, stable and reliable ARM core 32-bit microprocessor design.

It can be used as a Weigand reader, or as a Standalone Access Controller/Reader.

And is suitable for access control applications in offices, residential communities, villa, banks and prisons.

JINYINGModel:

> CF1EM: Metal Facial & Fingerprint Access Control Support RFID Cards

> CF1MF: Metal Facial & Fingerprint Access Control Support Mifare Cards

Features:

> Support card, facial recognition , fingerprint, card + fingerprint, Card + facial recognition

> Can read 125KHz EM Card(Optional)

> Can read 13.56MHz Mifare card (Optional)

> Support Infrared remote controller operation.

> Can operate as a reader. The transmission format could be adjusted by users.

> Support admin card, admin fingerprint (add/delete)

> Can hold 10,000 card users,1000 facial users and 600 fingerprint users

Specification:

Product Parameter	Parameter Description
JINYINGModel	CF1
Product Name	Facial Recognition Access Control

Card type	EM or MF
User Capacity	10,000 card users
Facial Capacity	1000 facial users
Fingerprint Capacity	600 fingerprint users
Operating Voltage	DC12V
Standby Current	≤180mA
Operation Current	≤300mA
Operating Temperature	-40℃～60℃
Operating Humidity	0%～95%
Dimensions	139x70x22mm
Access mode	Fingerprint, card, facial recognition, or multiple combinations

CF1 Metal Facial and Fingerprint Access Control.jpg

JINYINGModel	CF1
Product Name	Metal Facial & Fingerprint Access Control

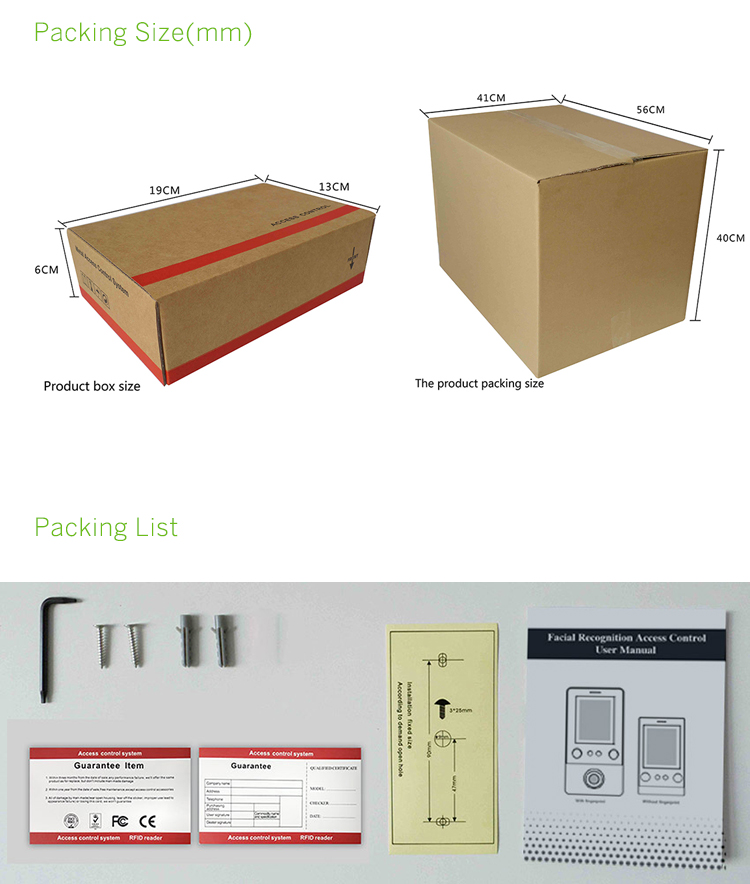

Packing Quantity	54 PCS/CTN
Packing Size	55.539.940cm
Gross Weight	28KG

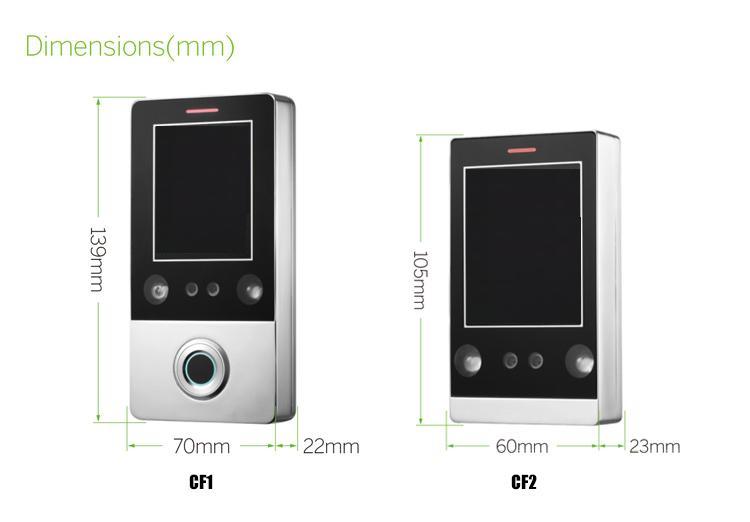

cf1 cf2 Size.jpg

Facial Access Control Packing list.jpg

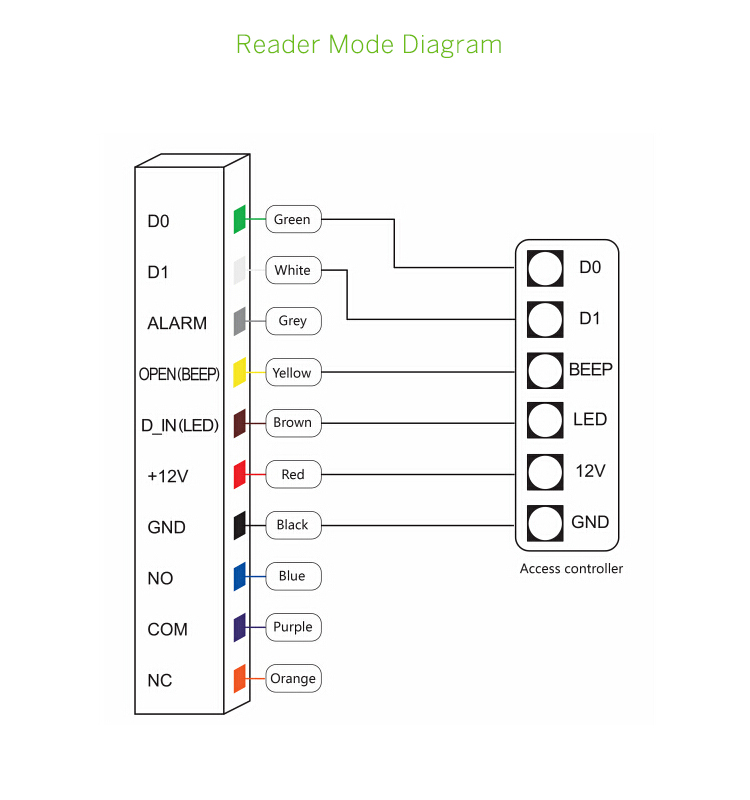

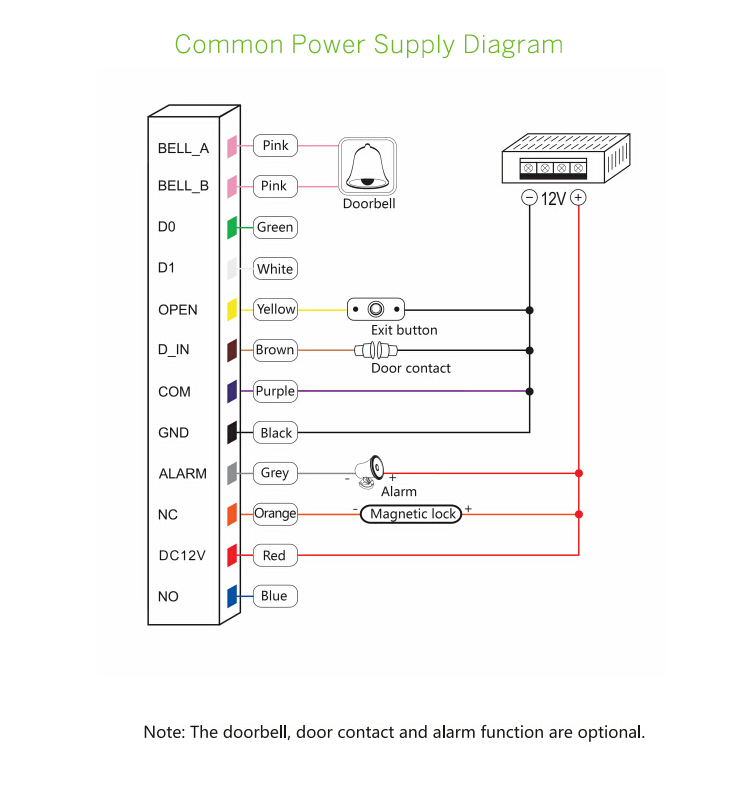

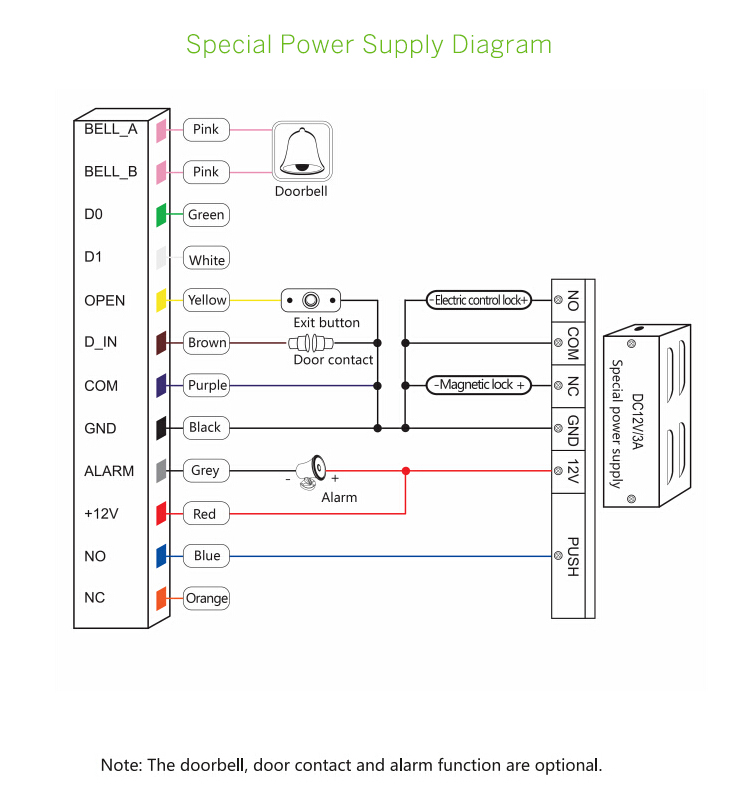

No.	Color	Marlu	Description
1	Orange	NC	Relay NC
2	Purple	COM	Relay COM
4	Blue	NO	Relay NO
6	Black	GND	Negative power supply end
7	Red	+12V	Positive power supply or AC power supply end
8	yyiow	OPEN	Exit button input end
9	White	D1	Wiegand Input (only when used as a reader)
10	Green	DO	Wiegand input (only when used as a reader)
