Infrared Touchless Sensor

Trigger state ( 0.5 ~ 20 sec ) or toggle mode output_x000d_ N.C & N.O output

Inquiry now

Parameters

Dimensions

Diagram

Product Parameter	Parameter Description
Product Name	Infrared Touchless Sensor
JINYINGModel	SI-10	SI-12	SI-15	SI-18

Dimensions	19mm	19mm	22mm	38mm
Maximum current DC24V	30mA	30mA	35mA	45mA
Weight	10g	21g	24.5g	50g
Case	Polycarbonate fireproof	Polycarbonate fireproof + Stainless Steel
Power input	DC 12 ~ 24V ± 10%
Contact Load	0.5A @ AC120V / 1A @ DC24V
Range	4 ~ 375px ( ± 25% )
Output State	Trigger state ( 0.5 ~ 20 sec ) or toggle mode output N.C & N.O output
Output delay time	0.5 ~ 20 Seconds, set 20 sec as toggle mode
Water resistant IP	IP65
Lift time	Relay mechanical lifespan: 1000,000
Infrared Sesnsor	100,000 hours
State Indicator	Red and Green Double-colored LED light
Operation Temp.	-10℃~ 70℃

Unit Weight	0.16KG
Standard Package	50PCS/carton
Carton Weight	8KG
Carton Size	453224(cm)

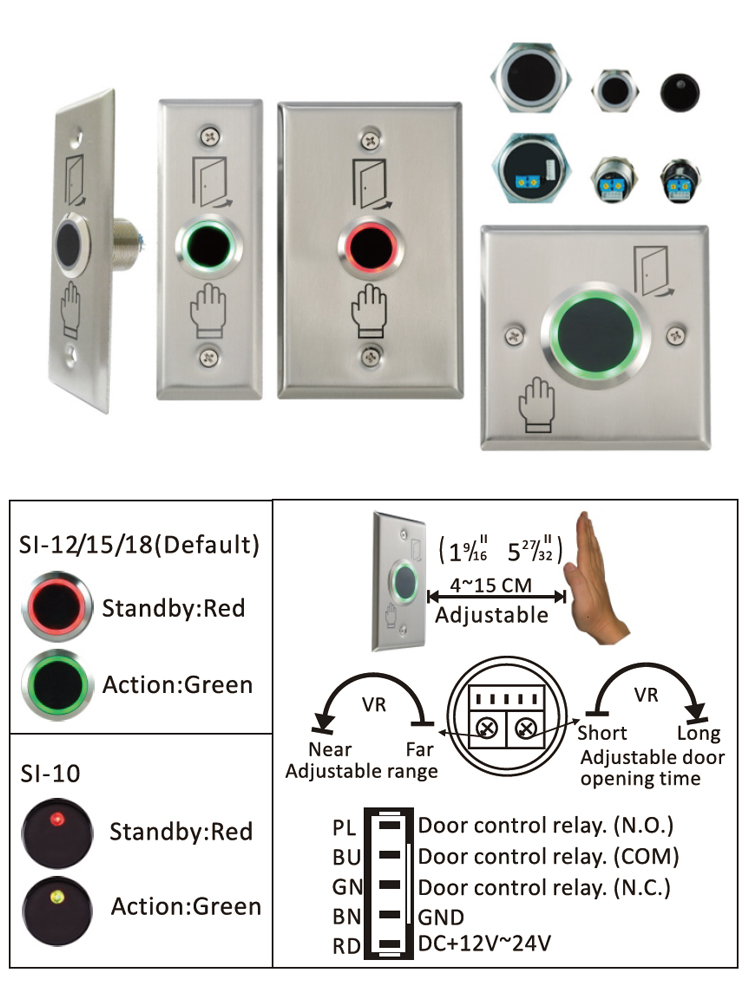

No Touch Exit Button.jpg

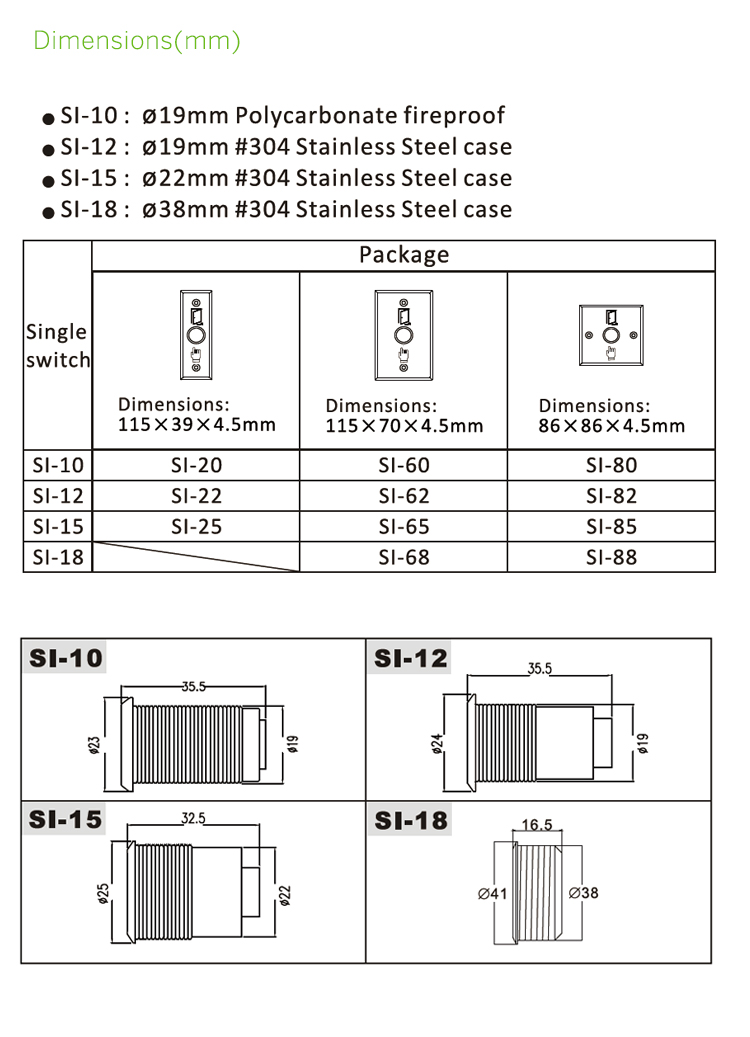

SI-18 Dimension.jpg
