Sbutton-01W Waterproof No Touch Exit Button

Zinc-alloy Housing + Acrylic Panel; NO/NC/COM

Inquiry now

Parameters

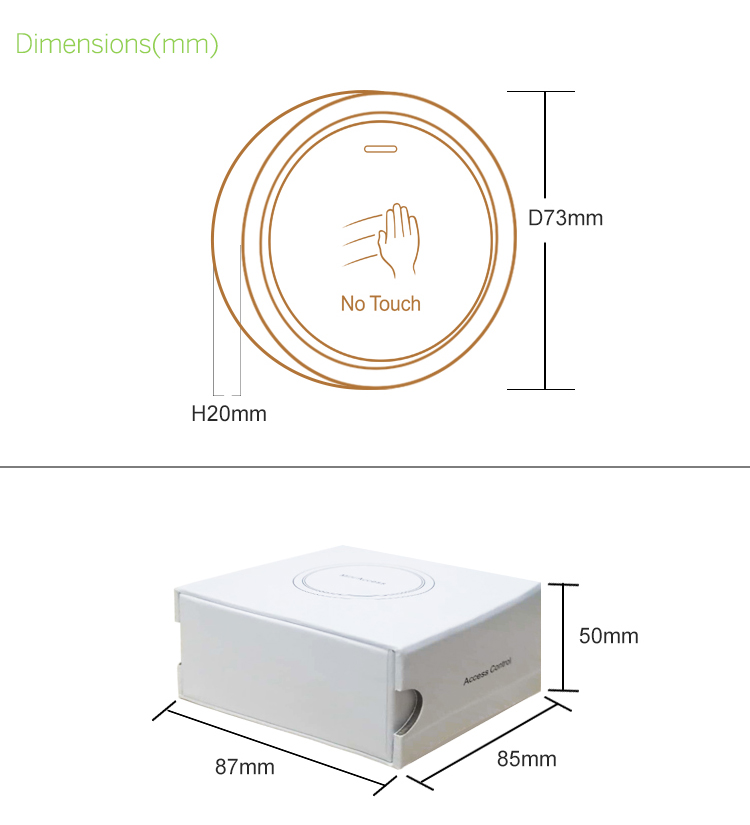

Dimensions

Diagram

Sbutton-01 Waterproof No Touch Exit Button

> Waterproof, IP66

> Zinc-alloy housing

> 9~24V DC

> Output contact: NO/NC/COM

> Sensor Distance: 3~10cm (Adjustable)

> Red LED indicator: standby

> Green LED indicator: active

> Diameter: 73mm, Thickness: 20mm

> Optional version: with 5s or 10s time delay or Toggle Mode

Product Parameter	Parameter Description
JINYINGModel	Sbutton-01
Product Name	Waterproof Zinc Alloy Housing No Touch Exit Button

Dimensions	Diameter: 73mm, Thickness: 20mm
Standard Structure	Zinc-alloy Housing + Acrylic Panel
Current Rating	<50mA@9~24V DC MAX
Output Contact	NO/NC/COM
Mechanical Life	100000 tested
Sensitive Distance	3-250px adjustable
Operating Temperature	-20 ℃ ~ 55 ℃ (-4 oF ~ 131 oF)
Operating Humidity	0% ~ 95% ( relative humidity)
Working Environment	Waterproof, IP66
Panel Material	Acrylic
Weight	240g

Waterproof No Touch Exit Button (1).jpg

Waterproof No Touch Exit Button.jpg
