Sbutton-02W Waterproof No Touch Exit Button

Zinc-alloy Housing + Acrylic Panel; NO/NC/COM

Inquiry now

Parameters

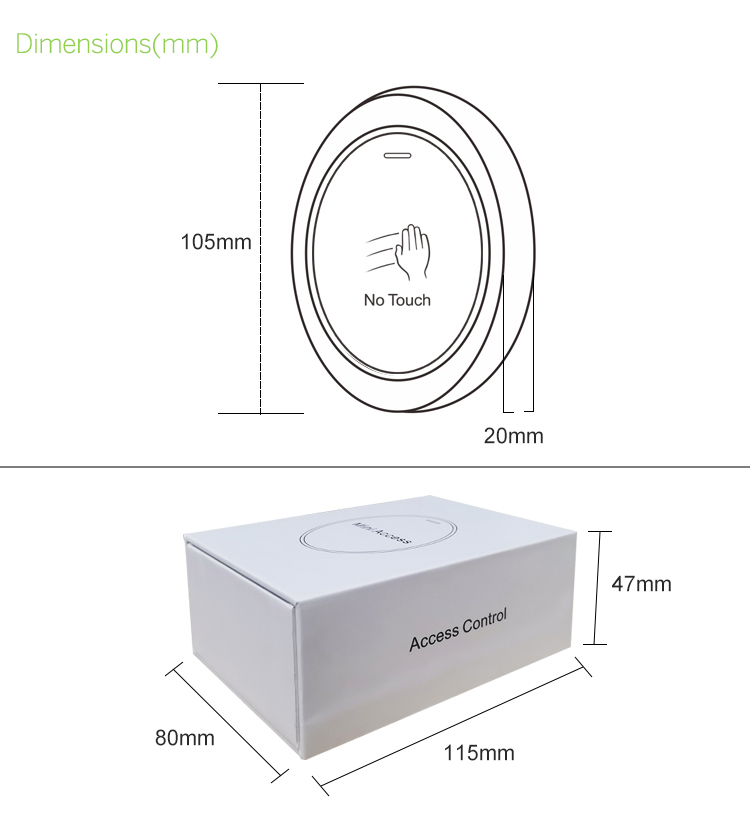

Dimensions

Diagram

Sbutton-02 Waterproof No Touch Exit Button

> Waterproof, IP66

> Zinc-alloy housing

> 9~24V DC

> Output contact: NO/NC/COM

> Sensor Distance: 3~10cm (Adjustable)

> Red LED indicator: standby

> Green LED indicator: active

> Dimensions: L105 x W69 x H20 mm

> Optional version: with 5s or 10s time delay or Toggle Mode

Product Parameter	Parameter Description
JINYINGModel	Sbutton-02
Product Name	Waterproof Housing No Touch Exit Button

Dimensions	L105 x W69 x H20 mm
Standard Structure	Zinc-alloy Housing + Acrylic Panel
Current Rating	＜50mA@12~24V DC MAX
Output Contact	NO/NC/COM
Mechanical Life	100000 tested
Sensitive Distance	3-250px adjustable
Operating Temperature	-20 oC ~ 55 oC (-4 oF ~ 131 oF)
Operating Humidity	0% ~ 95% ( relative humidity)
Working Environment	Waterproof, IP66
Panel Material	Acrylic
Weight	350g

Waterproof No Touch Exit Button (2).jpg

Waterproof No Touch Exit Button (1).jpg
