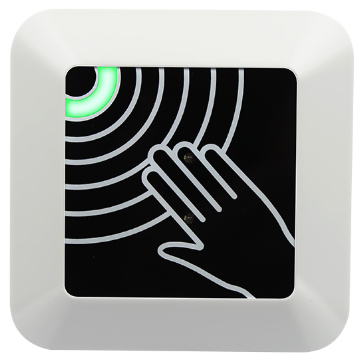

Sbutton-04W No Touch Exit Button Waterproof

PC case+ABS face plate_x000d_ NO/NC/COM

Inquiry now

Parameters

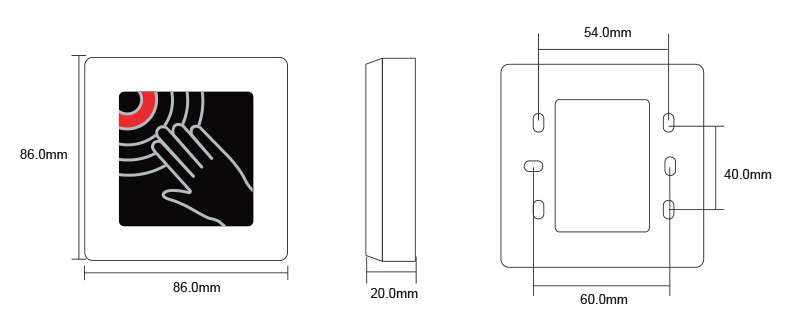

Dimensions

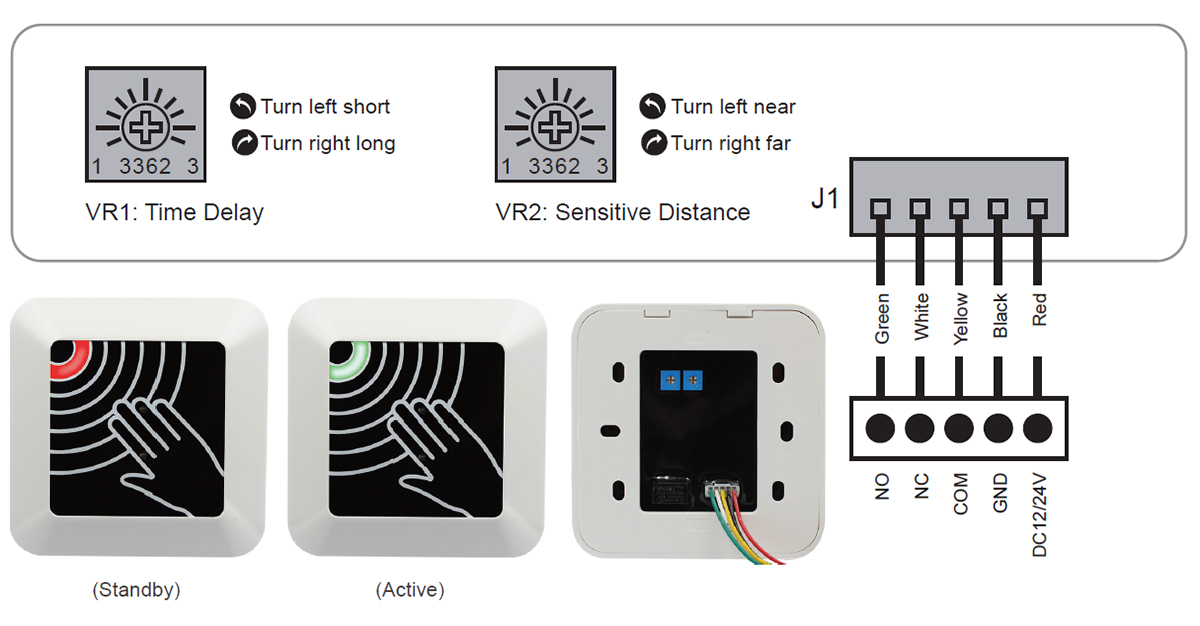

Diagram

Product Parameter	Parameter Description
JINYINGModel	Sbutton-04W
Product Name	Touchless Sensor Exit Button

Waterproof	IP67
Dimensions	86L86W20H(mm)
Output Contact	NO/NC/COM
Power	DC12V / 24V
Material	PC case+ABS face plate
Mounting Way	Surface Mount
LED Indicator	Red LED (Standby)
LED Indicator	Green LED (Active)
Sensitive Distance	3-15cm（Adjustable）
Mechanical Life	500,000 Tested
Time delay	0 ~ 30s (Adjustable)
Operating Temp	-20℃~+55℃(14-131F)
Operating Humidity	0-95%(relative humidity

Unit Weight	0.083KG
Standard Package	100PCS/carton
Carton Weight	8.5KG
Carton Size	524333cm

Waterproof No Touch Exit Button.jpg

IP67 Waterproof No Touch Exit Button.jpg
