Reader Encrypt Tag

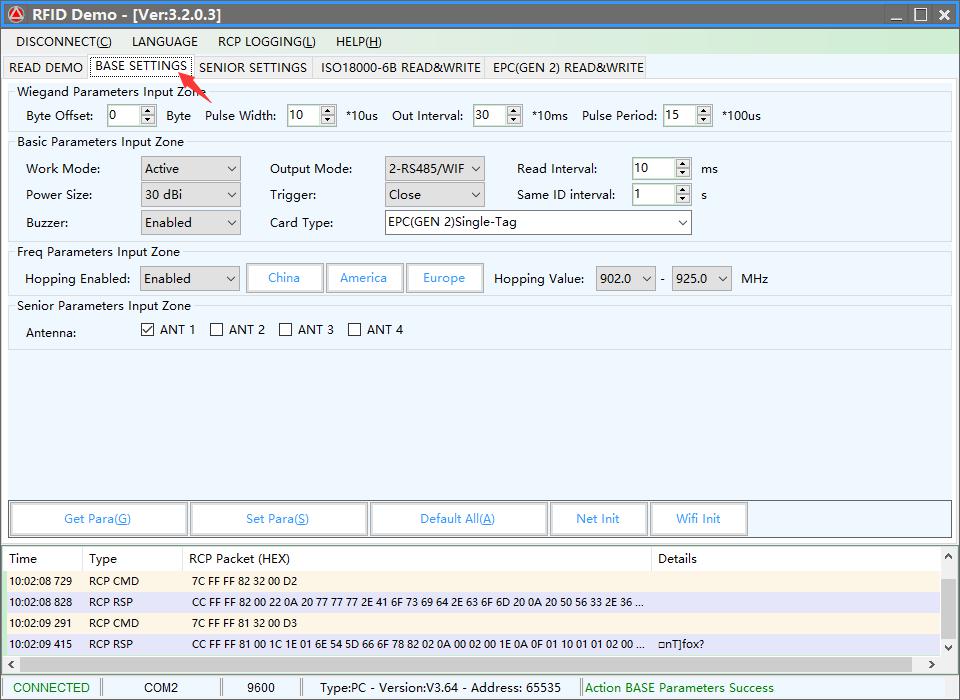

1) connect the pc and reader use the serial port, and use the “RFIDDemo.exe”;

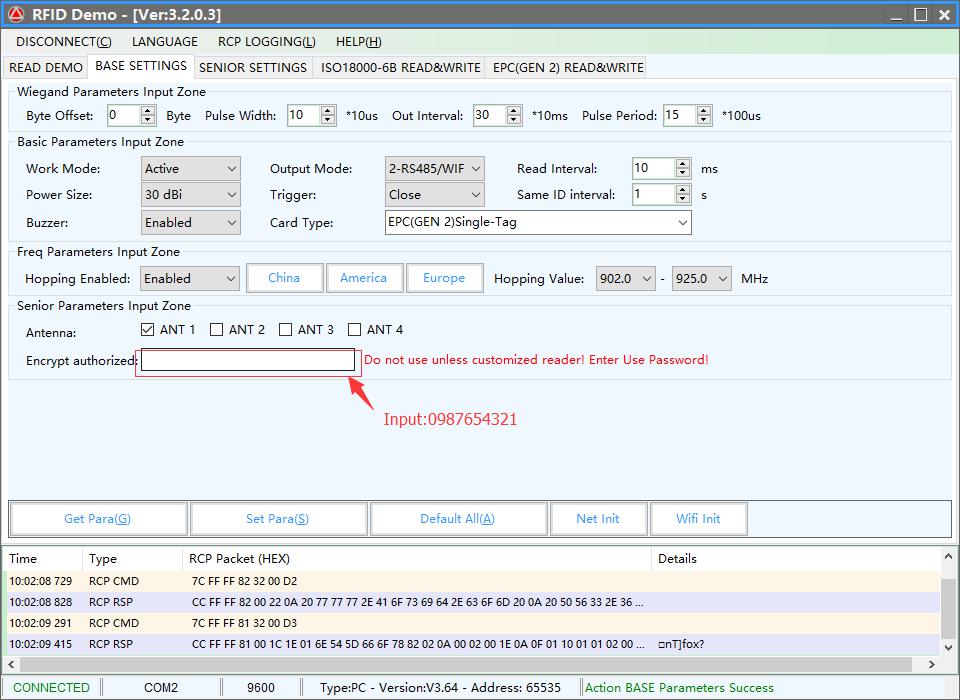

2) Press”F8” 5 Time

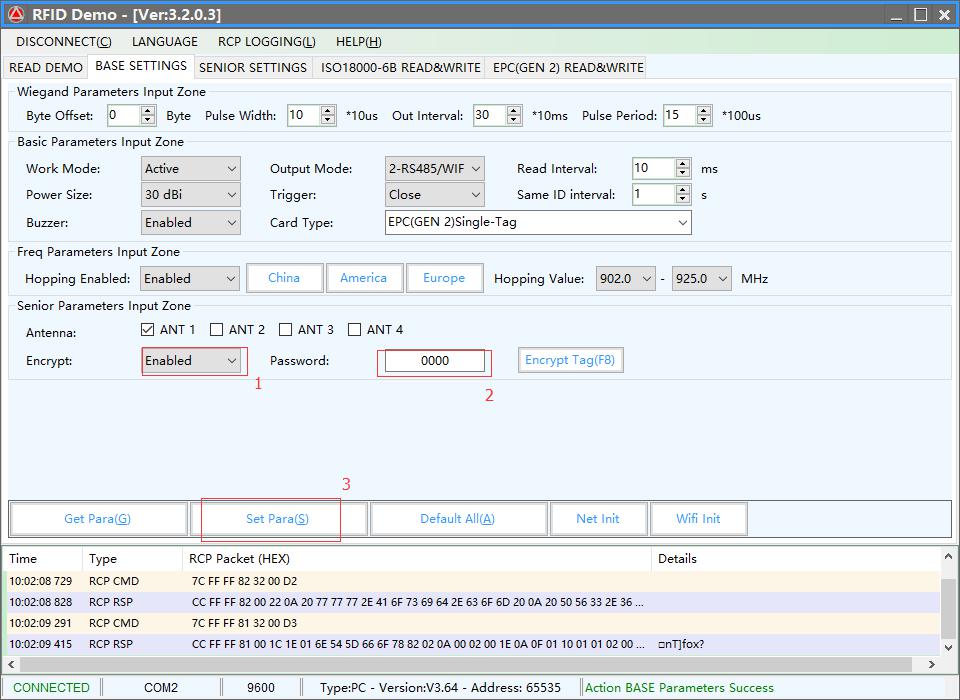

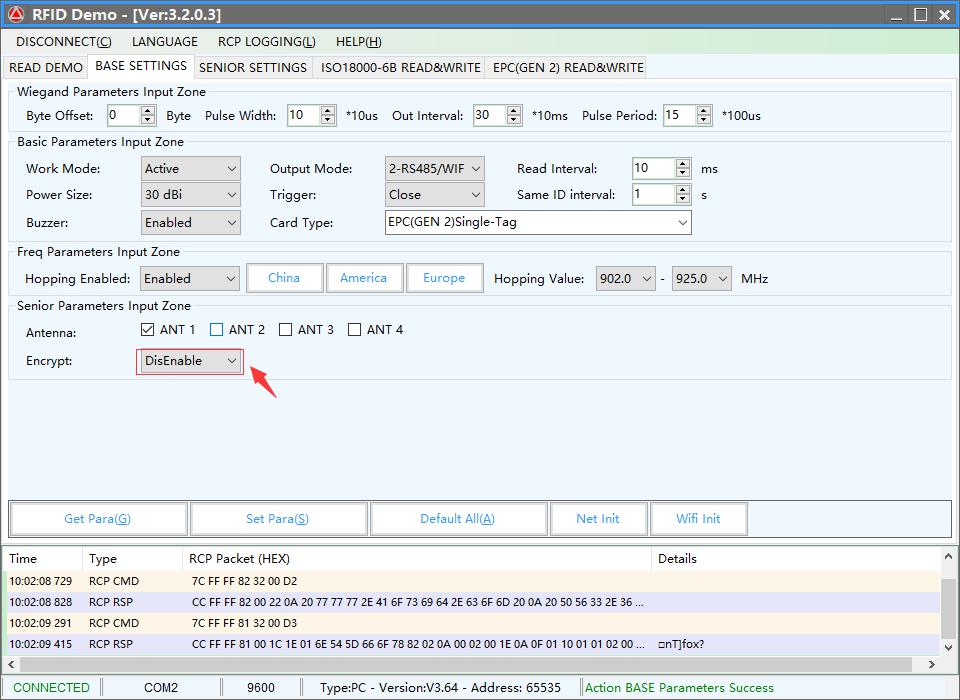

3) Choose then “Enabled”, and set password, then set Parameters [Set Para].

4) Now, put the tag on the reader, the reader is not beep;
Presses “Encrypt Tag”, until the reader beep, then encrypt succeed;

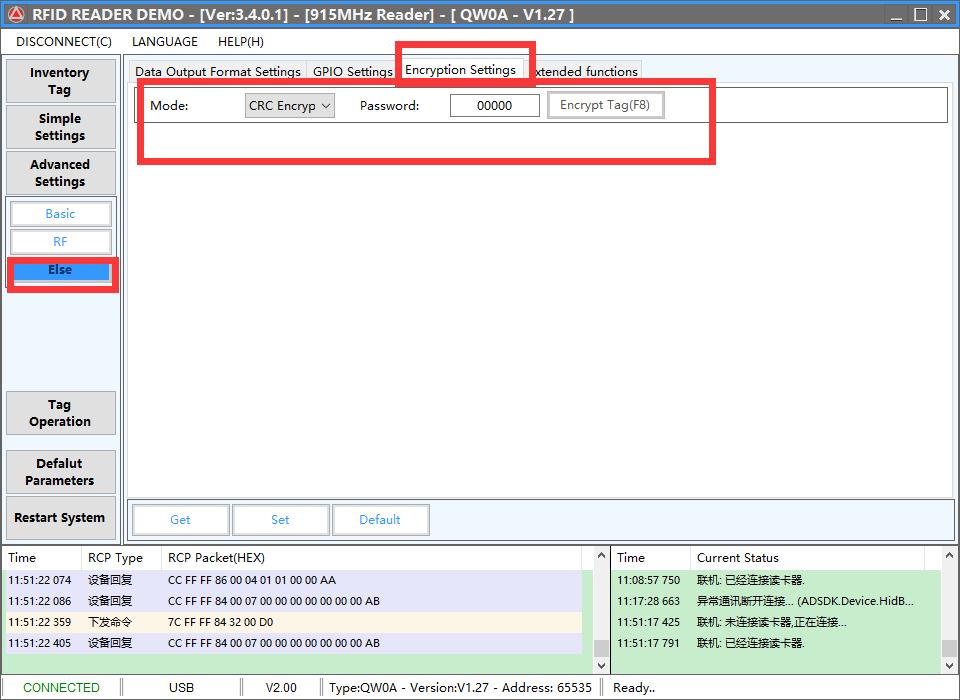

IF your UHF-105 and UHF-115 Reader is M100 Chip,

You can set up directly as below:

Note: when the encrypt tag, you can move the tag to accelerate the process of encryption.

More details for UHF RFID Long Range Reader,

you can check our website: https://www. JINYING.com.cn/list/?229_1.html
