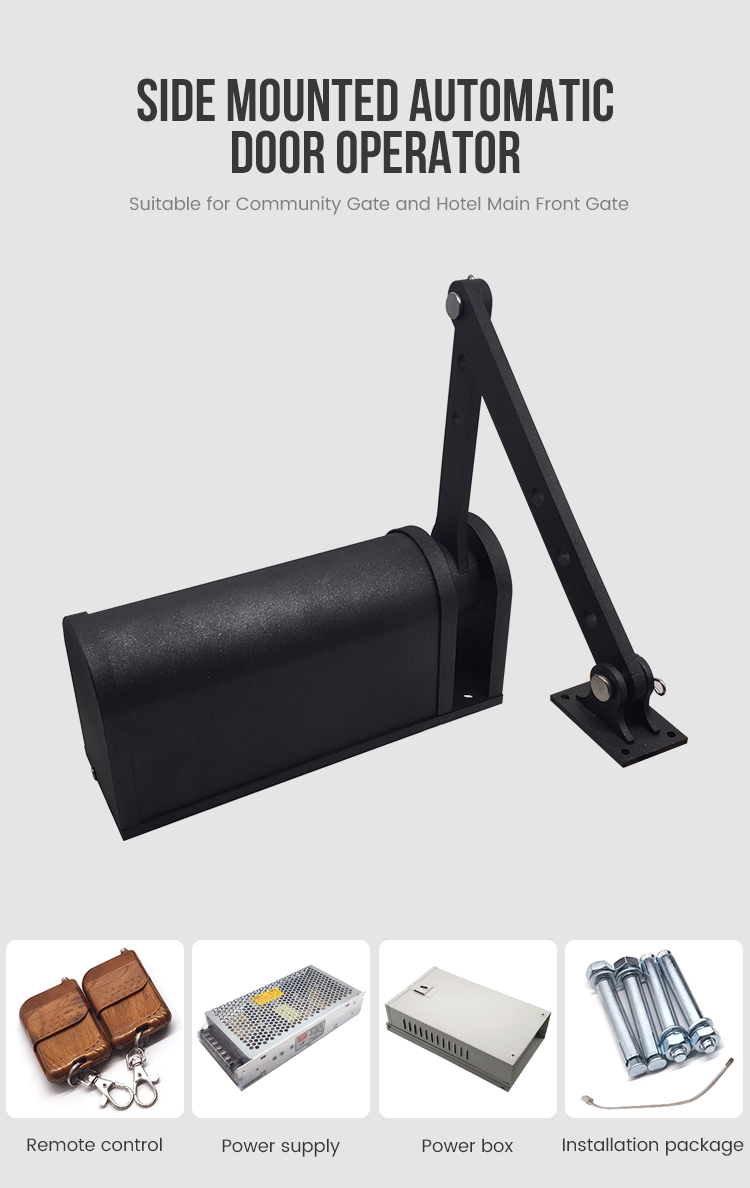

Side Mount Garage Automatic Swing Door Operators

RS-140 Automatic Side-mounted Flat Door Opener with Left arm or Right arm

Inquiry now

Parameters

Dimensions

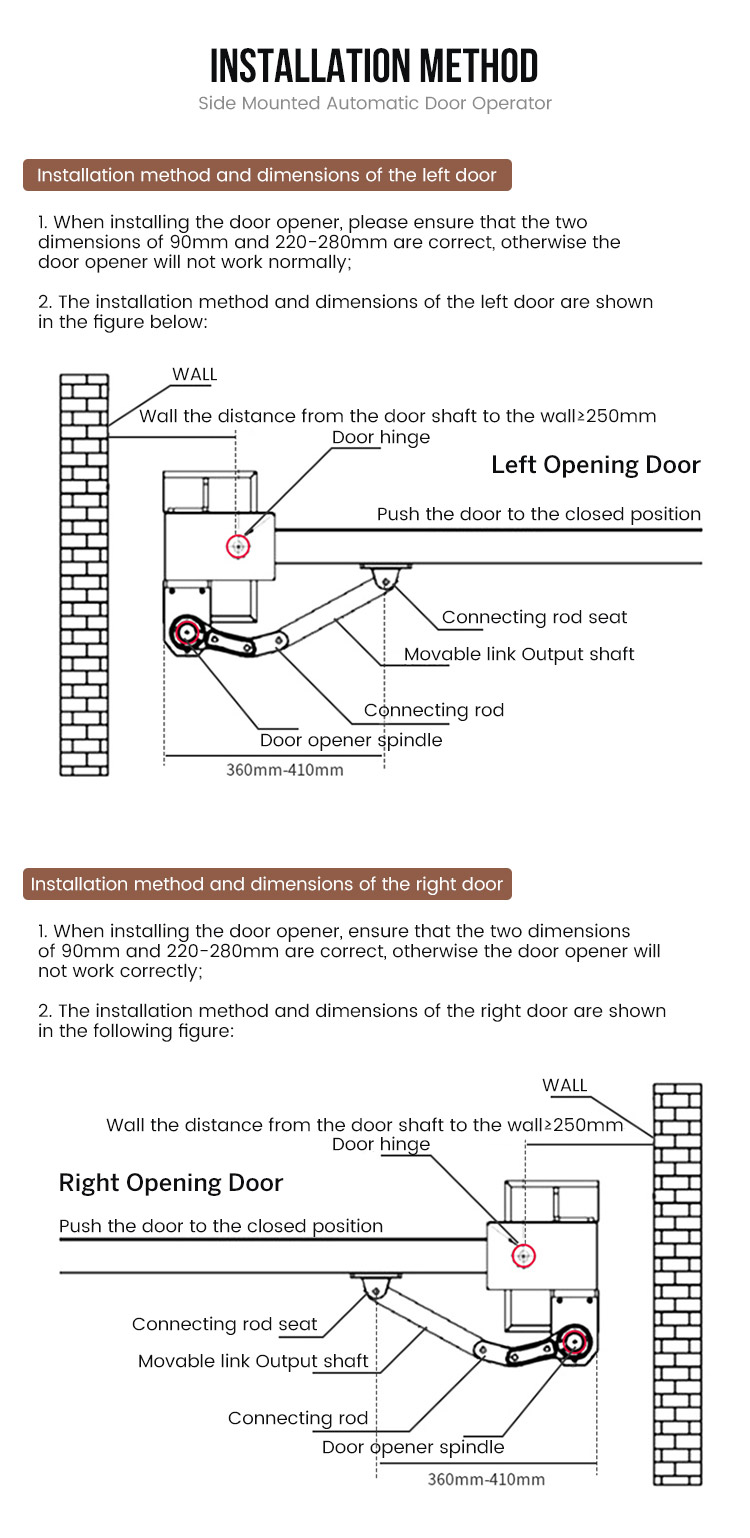

Diagram

> Low consumption, static power: 0.5W, maximum power: 25W.

> Super silence, working noise less than 50 dB.

> Small size, easy installation.

> Powerful, maximum push door weight 140kg.

> Support multiple signal input, relay signal, voltage signal (5-24V).

> Motor over-current, overload, short-circuit protection.

> Intelligent resistance, push-door reverse protection.

> Motor current (thrust), speed accurate regulation.

> Self-learning limitation, abandoning tedious limitation debugging.

> Enclosed shell, rain and dust proof.

Product Parameter	Parameter Description
JINYINGModel	R2-140
Product Name	Side Mount Garage Automatic Door Opener

Range of application	Various flat-open doors with the width ≤ 1200mm and the weight ≤ 120Kg
Open angle	90°
Power supply	DC24V 5A
Rated power	25w
Static power	0.5W (no electromagnetic lock)
Open/Close speed	1-9 gears, adjustable (corresponding opening time 10-3S)
Open hold time	1~99 seconds
Operating temperature	-20°C~60℃
Operating humidity	30%~95%(no condensation)
Atmospheric pressure	700hPa ~1060hPa

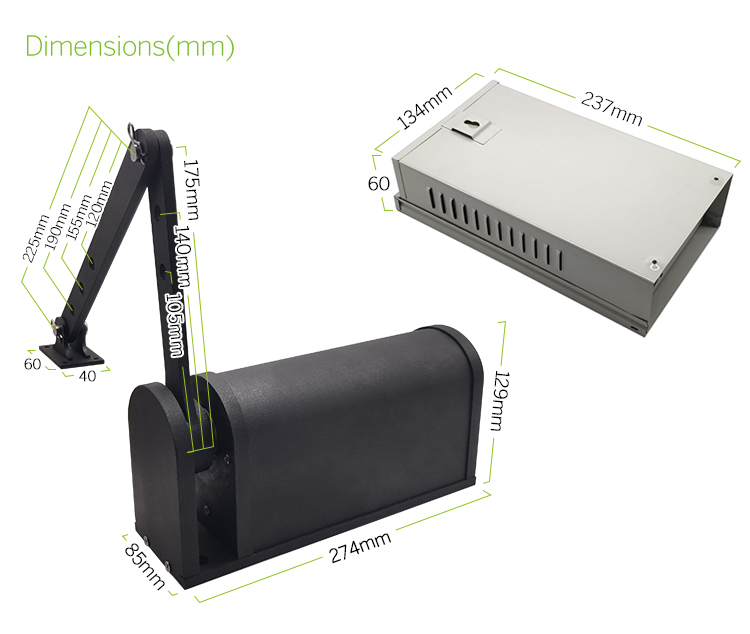

Dimensions	274x85x129mm

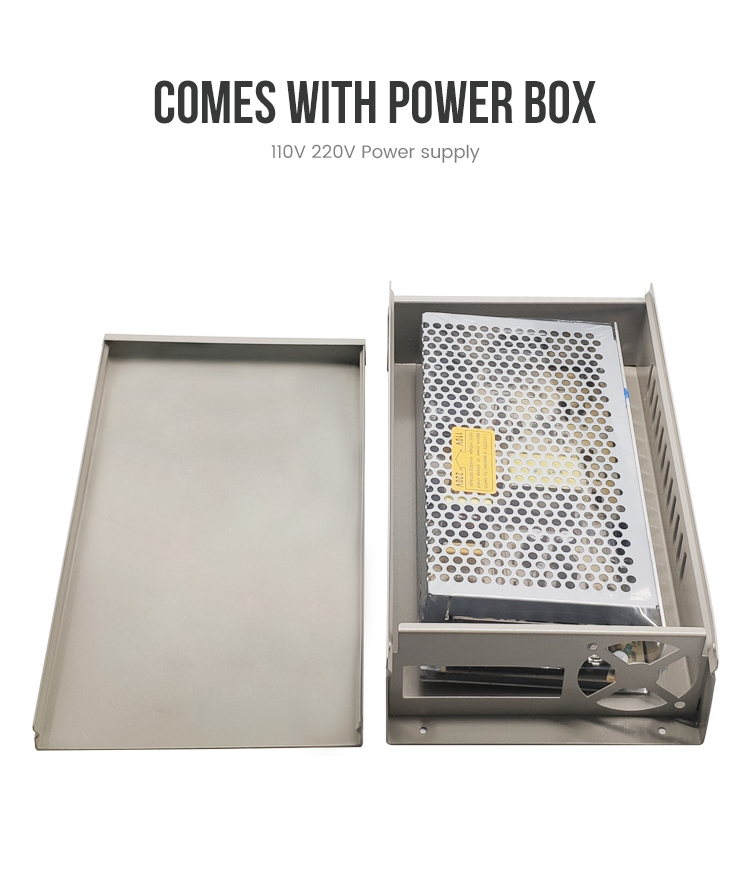

Power box size	237x134x60mm
Packing box size	370x340x150mm
Weight	9KG
