Model:
R2-140Brand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | R2-140 |

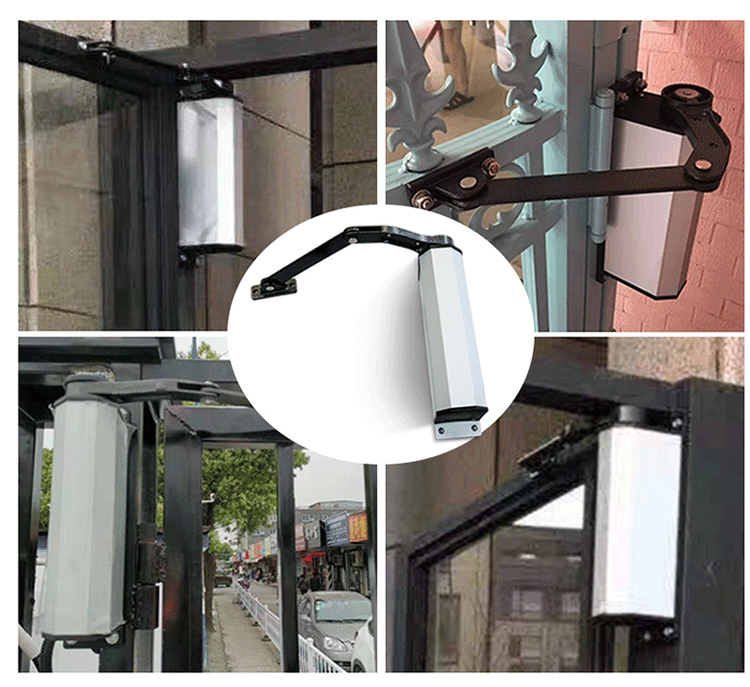

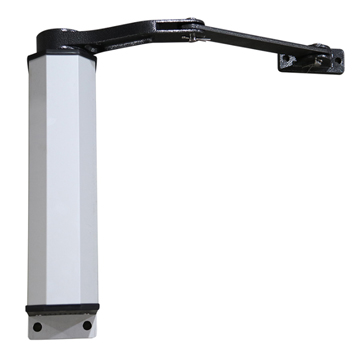

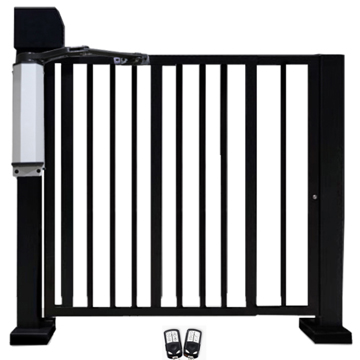

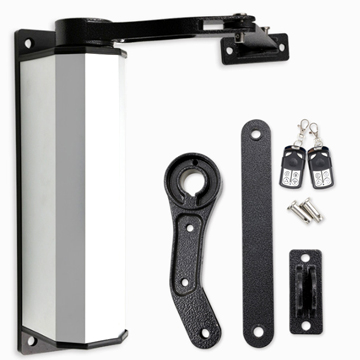

| Product Name | Side-Mounted Flat Door Opener |
| Range of application | Various Flat-open doors with the Width <=1200mm and the Weight <=140kg |
| Open Angle | 90° |
| Power Supply | DC24V 5A |
| Static Power | 0.5W |
| Open/Close Speed | 1-9 gears, adjustable (corresponding opening time 10-3S ) |
| Open Hold Time | 1 ~ 99 seconds |
| Operating Temperature | -20℃ ~ 60℃ |
| Operating Humidity | 30% ~ 90% ( no condenstation ) |

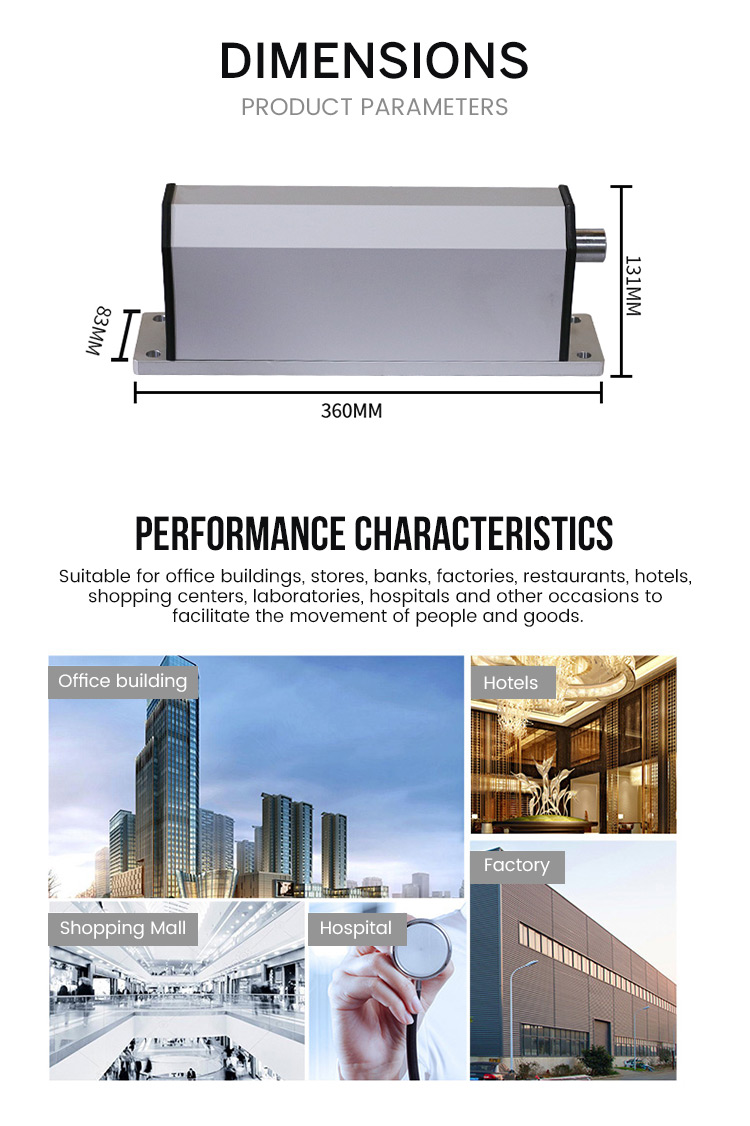

| External Size | 360mm L x 83mm W x 131mm H |
| Net Weight | 7.3KG |
