| Product Parameter | Parameter Descr1ption | |
| JINYINGModel | SM150 | |

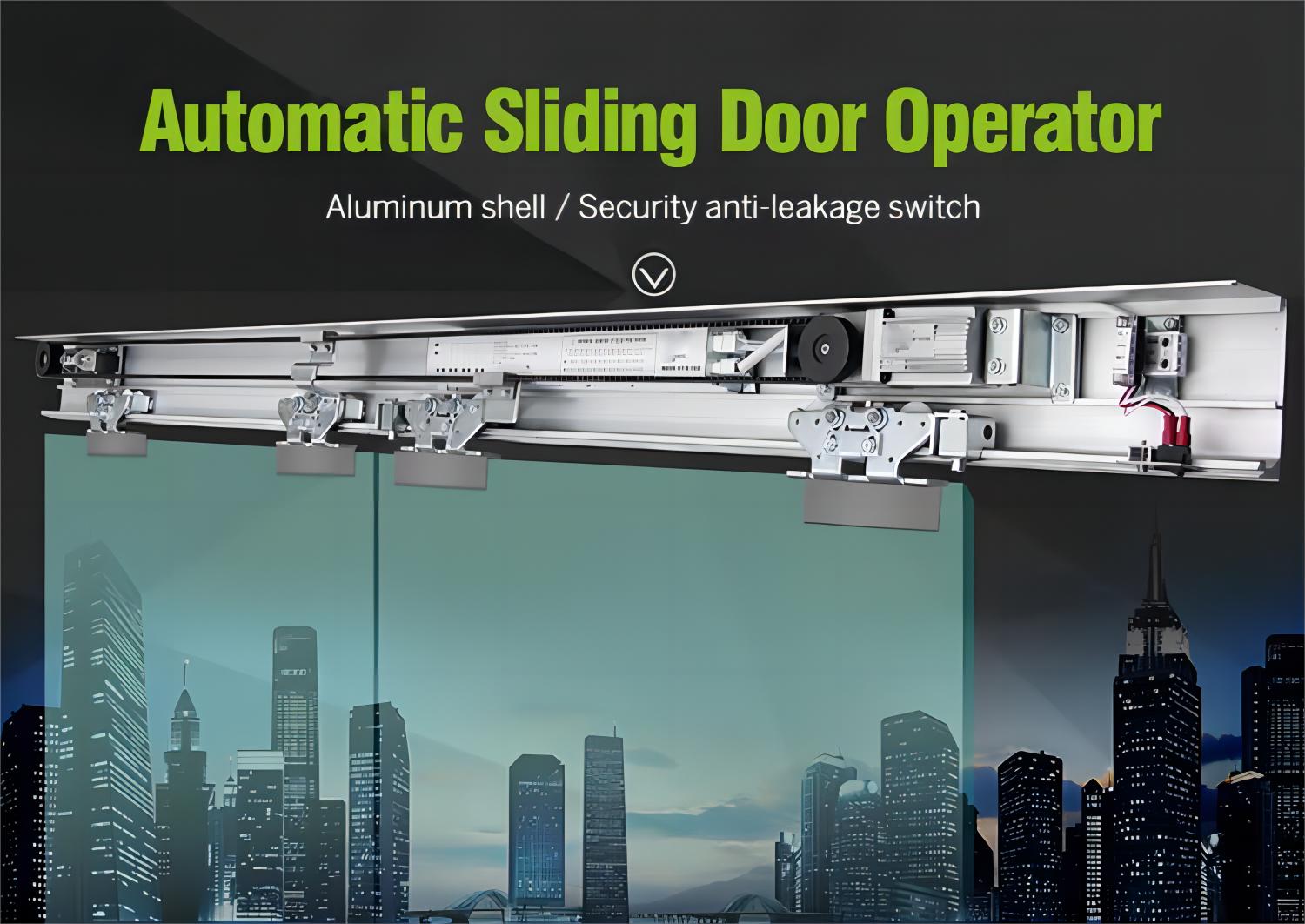

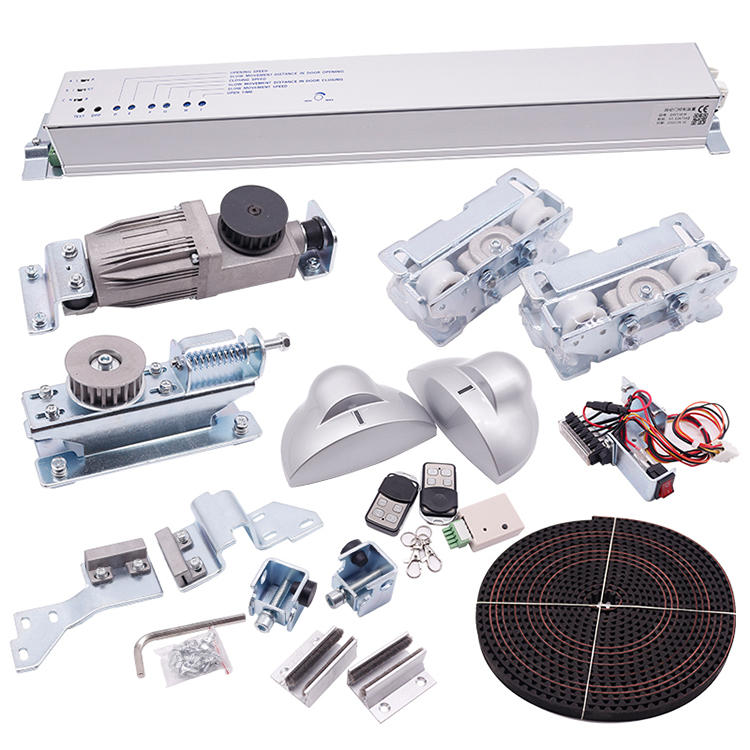

| Product Name | Automatic Sliding Door Opener | |

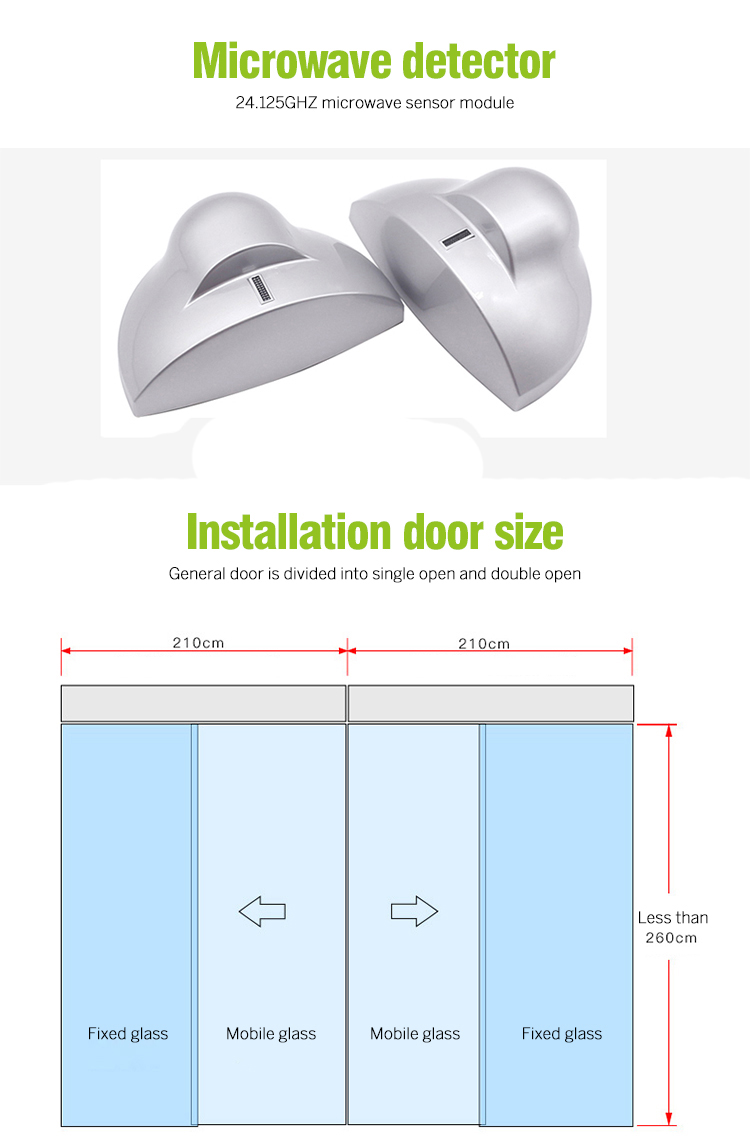

| Door-leaf Type | Single-leaf | Double-leaf |
| Door-leaf Weight | Max.150Kg | Max.150Kg *2 |
| Door-leaf Width | DW=750--1600mm | DW=650--1250mm |
| Total Width | W=1500--3200mm | W=2600--5000mm |

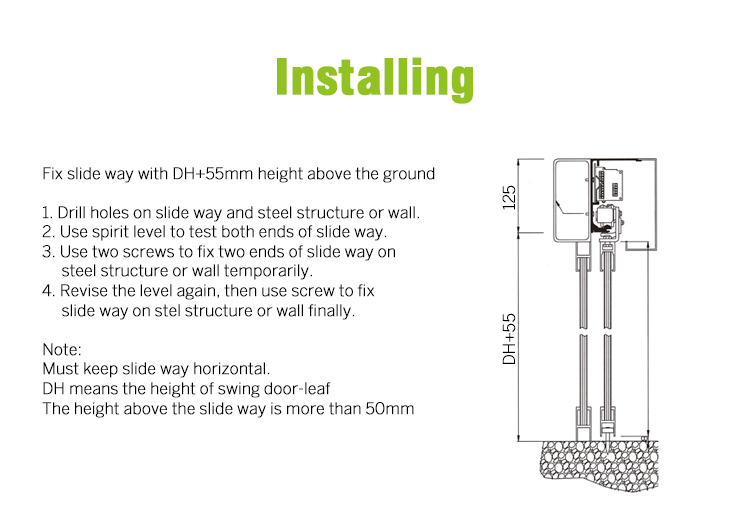

| Mounting Type | Surface Mounting | |
| Power | AC220V, 50HZ | |
| Opening Speed | 15~46cm/s (adjustable) | |
| Closing Speed | 13~ 46cm/s (adjustable) | |
| Hold-Open Time | 0~ 8S (adjustable) | |
| Manual Push Force | <40 | <50 |

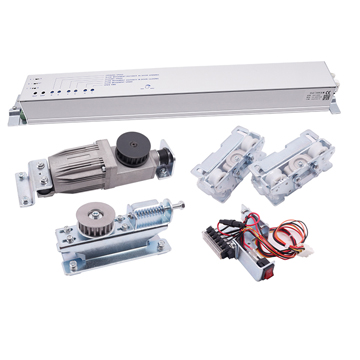

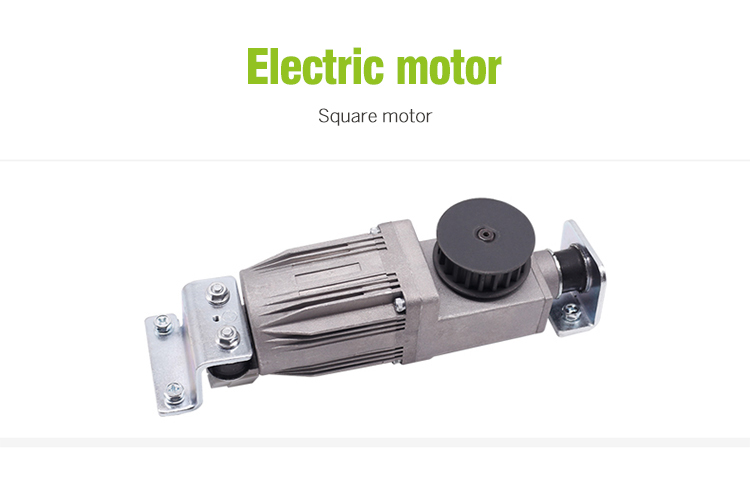

| Motor | DC24V Brushless Servo Motor | |
| Ambient Temperature | -20掳C~+50掳C | |
