150B Sliding Arm Type Window Opener

Inquiry now

Parameters

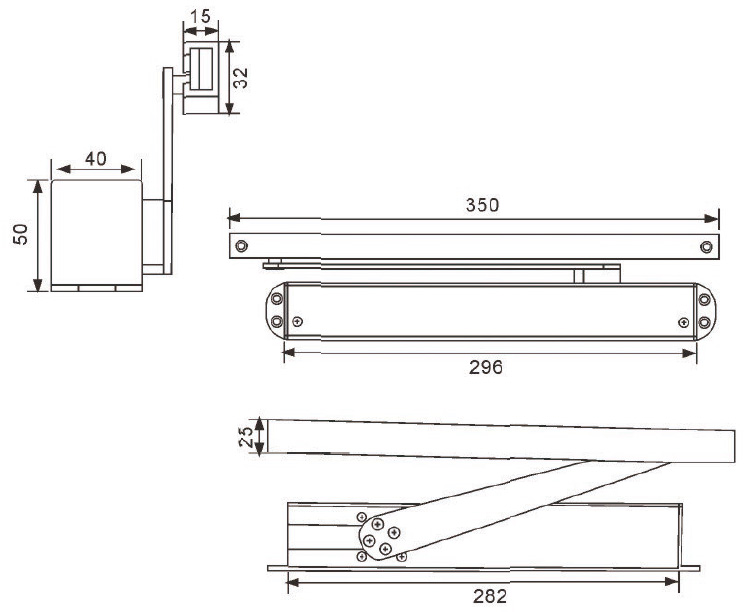

Dimensions

Diagram

Product Parameter	Parameter Descr1ption
Product Name	Sliding Arm Type Window Opener
JINYINGModel	150B

Thrust Pull ( N )	400
Locking Force ( N )	3000
Stroke Length ( mm )	360
Ouput Method	Sliding Arm
Mechanical Locking Function	√
Running Speed	6
Multipoint Lock Linkage	X
Maximum Window Width	0.6
Minimum Window Width	0.5
Reted Voltage	DC24V
Rated Current	1.2A
Rated Power	28.8
Protection Level	IP30
Single Control Switch Function	Optional
Electric Push Control Function	√
Overload Protection Function	√
Overload Protection Function	Optional
Fire Linkage/Daily Ventilation Two-Level Contral	√

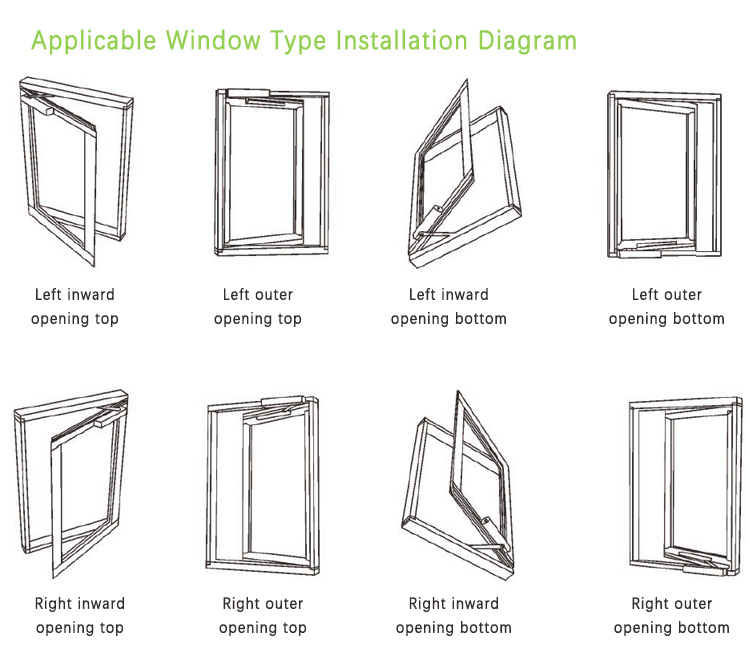

Applicable Window Type Installation Diagram
Left Inward Opening Top	Left Outer Opening Top
Left Inward Opening Bottom	Left Outer Opening Bottom
Right Inward Opening Top	Right Outer Opening Top
Right Inward Opening Bottom	Right Outer Opening Bottom
