| Product Parameter | Parameter Description |
| JINYINGModel | JINYING-204GD |
| Product Name | Unidirectional Microwave sensor |
| Power supply | AC/DC 12-36 V |
| Current consumption | Static 45MA,dynamic 105MA(When DC 12V2 power supply) |
| Environmental temperature | 40 |
| Environmental humidity | 0-90%,without condensation |
| Radio waves | 24GHz |
| Installation Height | 5M (Max) |
| Sensing Range | 5*3M |
| Cable length | 2.5M |
| Output | <=20dbm< td=""> |
| Relay output | N.O.-point output(relay) |
| Maximum switching voltage | 48V AC/DC |
| Maximum switching current | 0.5 A AC/ 1.0A DC |
| Minimum switching current | 1MA |
| The largest power switch | 55VA/24W |
| Weight | 220g |
| Protection level | 1P 54 |

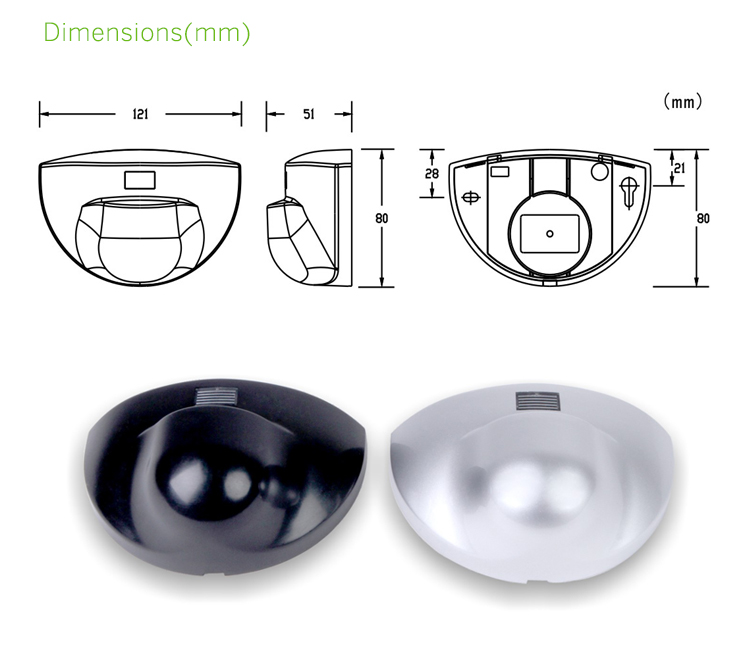

| Size | 120Lx80Wx50H (mm) |
