| Product Parameter | Parameter Description |
| JINYINGModel | JINYING-227A |

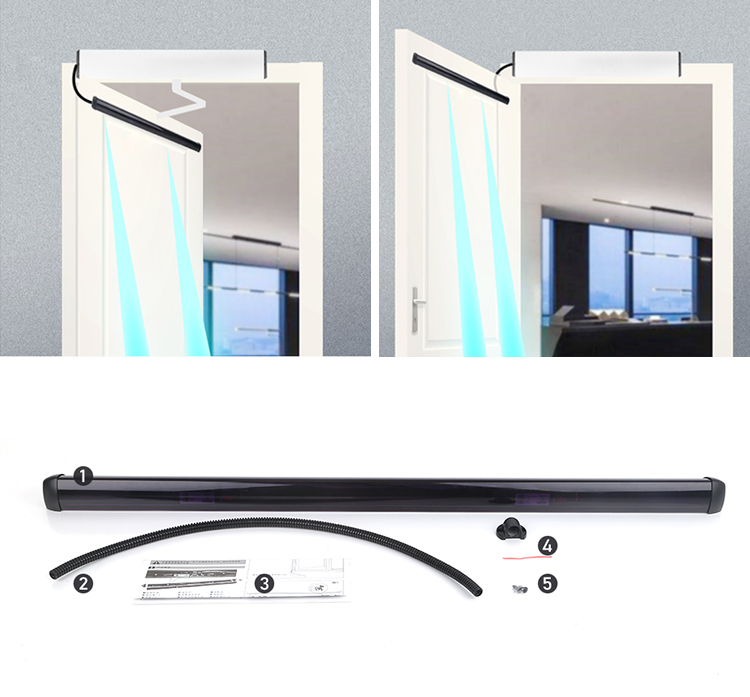

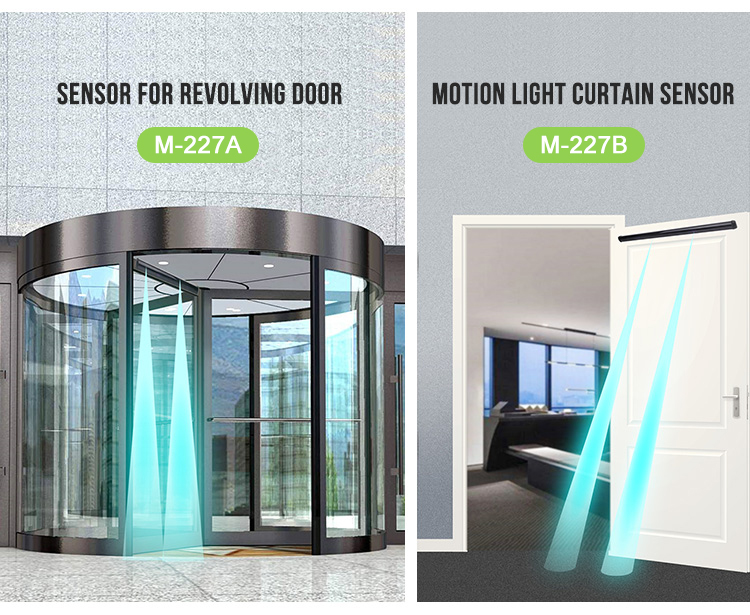

| Product Name | Moving Safety Curtain |

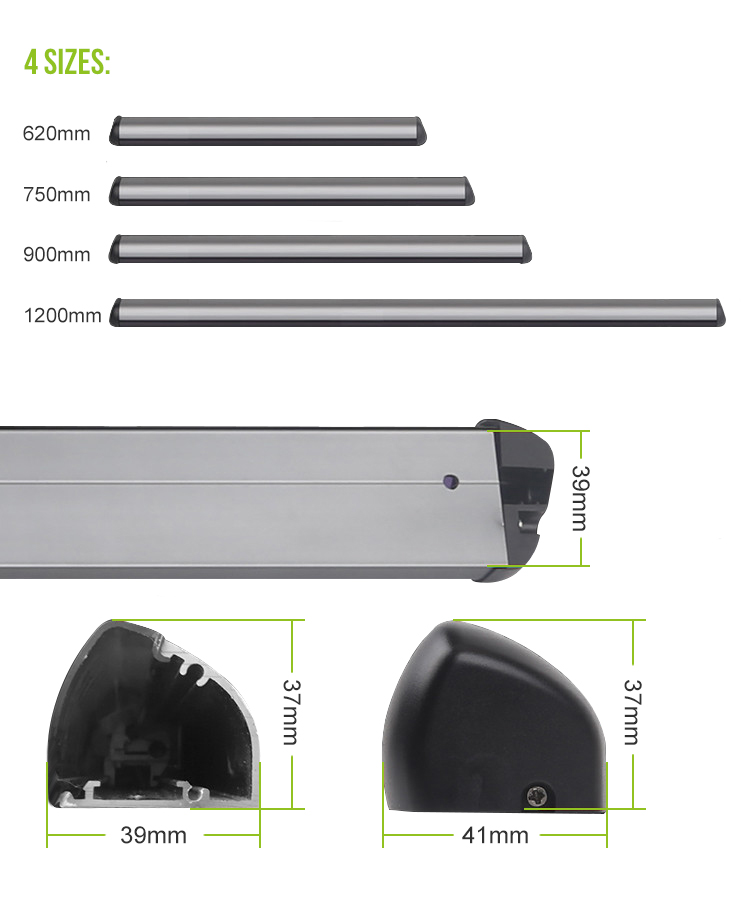

| Moving Safety Curtain Dimension | 620（L）×31（W）×20（H）mm |
| 750（L）×31（W）×20（H）mm | |
| 900（L）×31（W）×20（H）mm | |
| 1200（L）×31（W）×20（H）mm | |

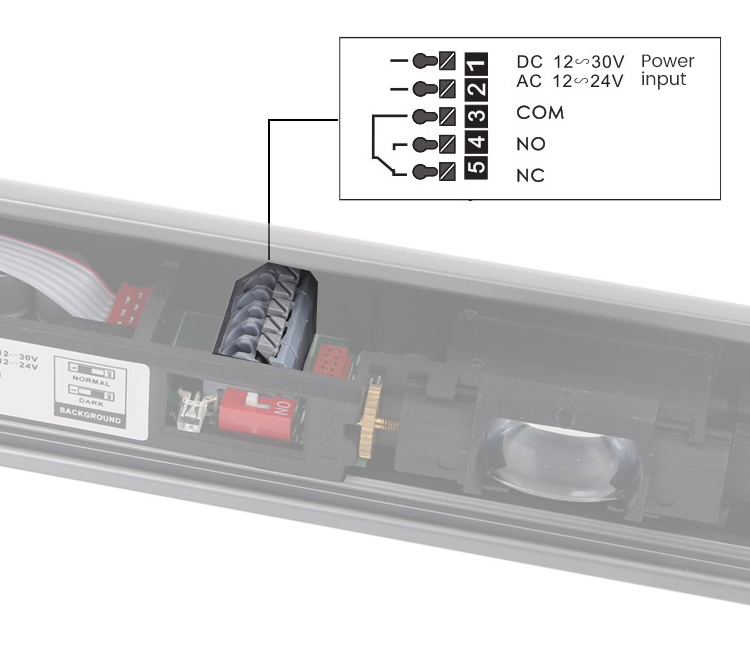

| Operation voltage | AC/DC 12-36V(-/+10%) |

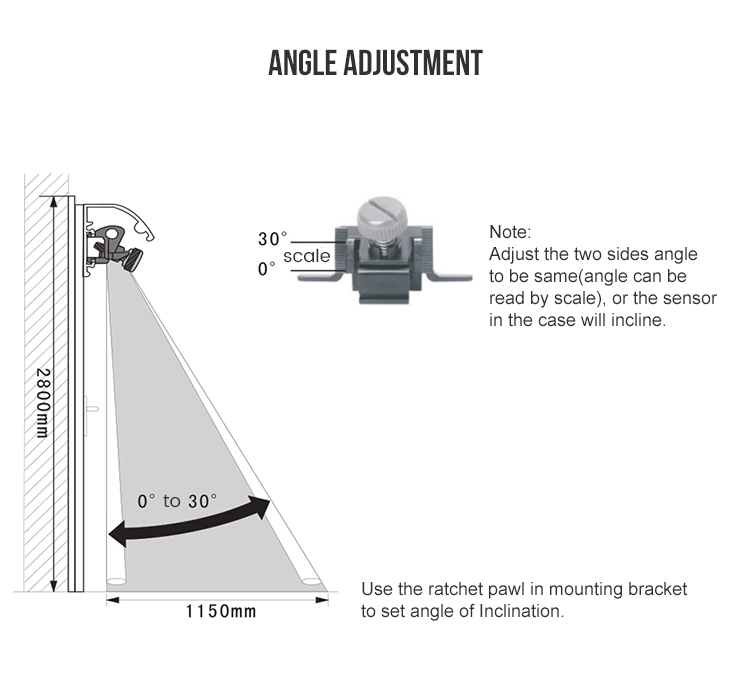

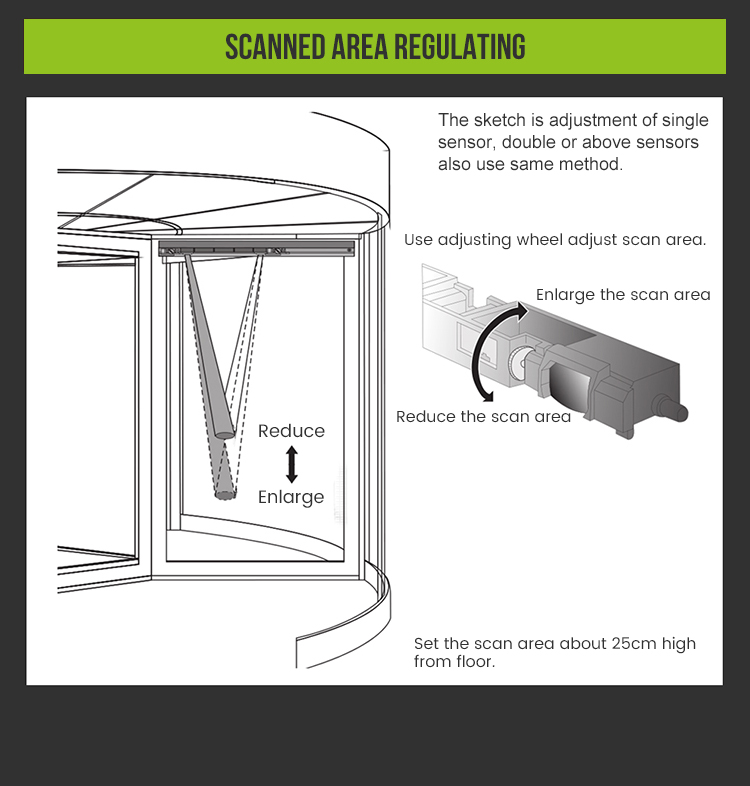

| Scanning Range | Mechanical adjustment of wheels 500-2800mm |
| Detection area diameter | around 75mm |
| Deduction re-action time | ≤100ms |
| Operating mode | mobile or static mode adaptation |
| Maximum detection area | 2000（W）×500（D）mm |
| Operation mode | Motion or standstill mode |
