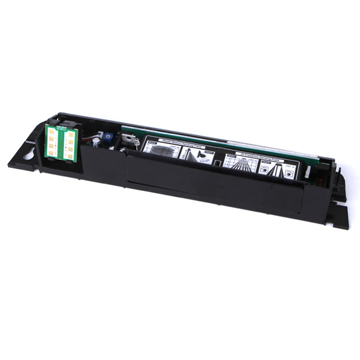

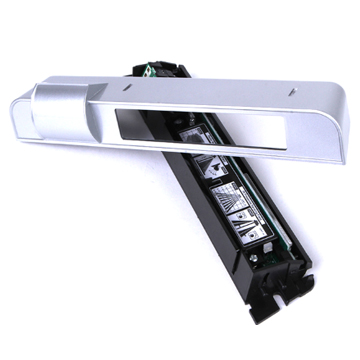

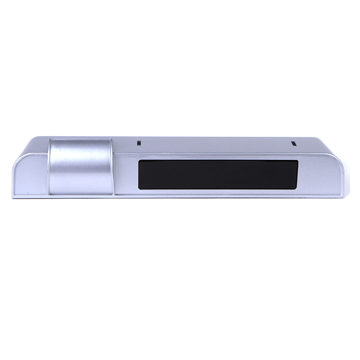

JINYING-235 Combined Radar Activation and Infrared Safety Sensor

Inquiry now

Parameters

Dimensions

Diagram

Product Parameter	Parameter Description
JINYINGModel	JINYING-235
Product Name	Combined Radar Activation and Infrared Safety Sensor

Power Input	AC/ DC 1 2 to 3 0 V( - / + 1 0 % )
Cable Length	2.5m
Protection	IP54
Signal Output	Relay
Max Installation Height	2500mm
Static Current	65mA
Action Current	130mA
Dimension	260.3（L)×53.4（W)×44(H)mm
Cover	ABS
Infrared Safety
RAY TYPE	Reflect infrared
Ray Source	Infrared9 4 0mm
QUANTITY OF RAY	8 emit rays and 8 receive rays
Self-learning time	10S
Operation Indicate	Standy by Blue LED，Action by Red LED
Temperature	- 4 0℃to 6 0℃
Detection Range	1600(W)*800(D)mm
Output time	500mS
Respond	<=100ms< td="">
Optical surface	PMMA
Microwave Activation
Technology	Microwave processor
Frequency	24.125GHz
Emission Power	＜ 20dBm EIRP
Transmission frequency density	＜5mW/cm2
Detection Mode	Movement
Detection Range	4m (W)×2m(D)
Output time	0.5S
Temperature	-20℃t o +55℃
