| Product Parameter | Parameter Description |
| JINYING Model | EL-150 |

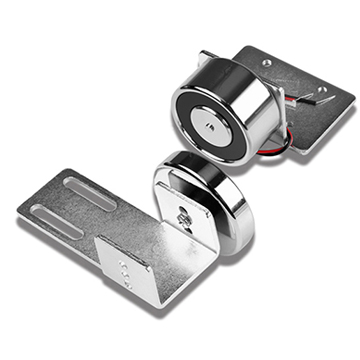

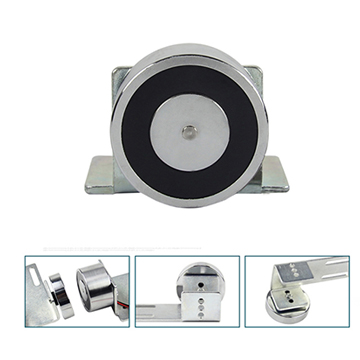

| Product Name | Magnetic lock for Auto-Door |
| Holding force | 70KG ( 150lbs ) |
| Voltage | DC12V |
| Current | 170mA ( DC12V ) / Option: 85mA ( DC24V ) |
| Power off button | NO |
| Material | High temperature paint and enviroment protection Zinc |

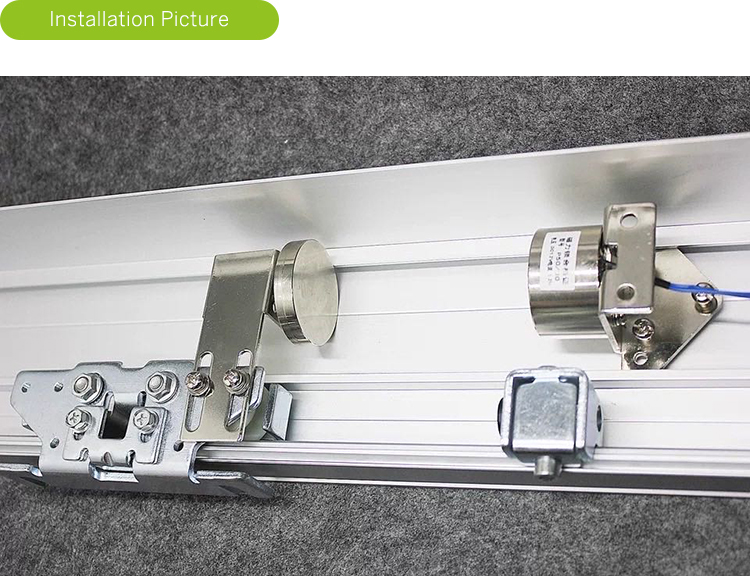

| Suitable | Auto-door |
| Surface temp | 50° |
| Operating temp | -20℃ ~ 55℃ (14°F ~ 131°F) |
| Suitable humidity | 0 ~ 90% (relative humidity) |
