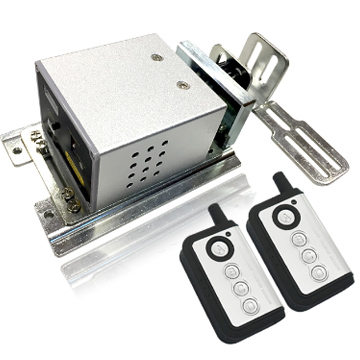

JINYING-255E Magnetic Lock for Automatic Door

Inquiry now

Parameters

Dimensions

Diagram

> Concise design and easy to install

> Demagnetizing circuit keeps no magnet effect

> Install postion can be adjusted freely on the automatic door

> Stationary frame can be adjusted freely to meet the lock position

> Power supply:AC/DC 24V, with 12V DC output for access control

> Build in Status indicator

> Maximum tension:80kg/175LBS

> Stable and low power consumption

Product Parameter	Parameter Description
JINYINGModel	JINYING-255E
Product Name	Magnetic Lock for Automatic Door

Static Power	18mA
Action Current	130mA
Frequency	315MHZ
Transmit& Receive	Microwave self- learning
Lock Body	71( L)×65(W)×45(T) (mm)
Adsorption plate	60(L)×32(W)×10(H)m m
Bracket	147(L)×65(W)×3(T)(mm)
Adsorption plate Bracket	116(L)×68(W)×38(T) (mm)
Power Supply	AC/DC24V, with 12V DC output for access control
Maximum tension	80kg/175LBS
