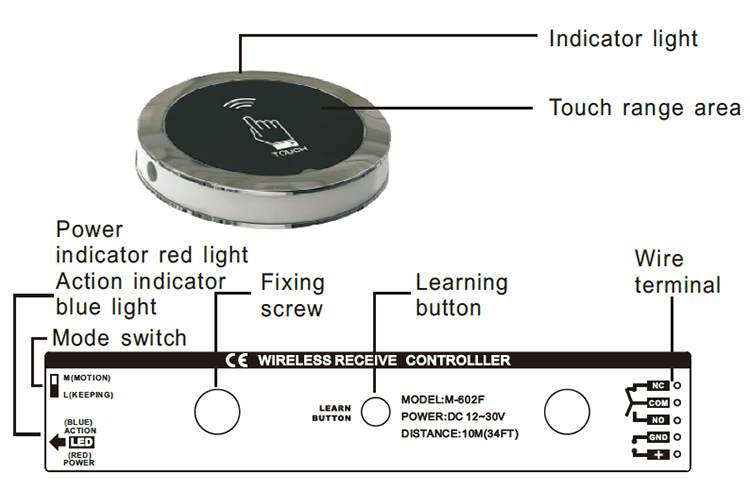

Diagram

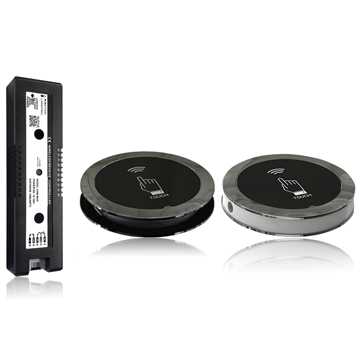

JINYING-501 Wireless Metal Touch Switch for Auto-Door

> Round panel, wireless design, installation without wiring, more flexible installation.

> Metal material, exquisite and small, gently touch can open the door.

> Adopt 2.4G wireless communication technology, good frequency consistency, high wireless transmission reception stability.

> The transmitter adopts low-power transmission technology, with long range, low power consumption and long battery life.

> The receiver adopts self-learning code,which is convenient for customers to add hand switch at any time.

> Receiver adopts wide voltage input design, 12-30V AC/DC power input are valid.

> Both embedded concealed and unfold install design, can be embedded in glass installation, and waterproof design.

Product Parameter	Parameter Description
JINYINGModel	JINYING-501
Product Name	Wireless Metal Touch Switch

Power supply (wireless receiver)	D C 1 2～3 0 V
Static current	30mA ( DC12V )
Action current	74mA ( DC12V )
Main contact capacity (wireless receiver)	1A 24VDC
Contact holding time (wireless receiver)	1.5S
Power supply (Transmitter)	3V（2pcs 3V battery payallel）
Standby current (Transmitter)	≤10μA
Emission current (Transmitter)	7.5mA
Battery life (transmitter)	Average press 200time per day, can last 300 days
Receiver sensitivity	- 95 dbm
Emission distance	Over 30 meters in no obstacles area
Product size (Transmitter)	60mm（L）×16.5mm（W）
Product size (Receiver)	110mm（L）×30mm（W）×15mm（H）

Wireless Metal Touch Switch.jpg
