| Product Parameter | Parameter Description |
| JINYINGModel | JINYING-505B |
| Product Name | Large Non-touch Switch |
| Power supply | AC/DC 12-24V |
| Static current | 7mA (DC 12V power) |
| Action current | 36mA (DC 12V power) |

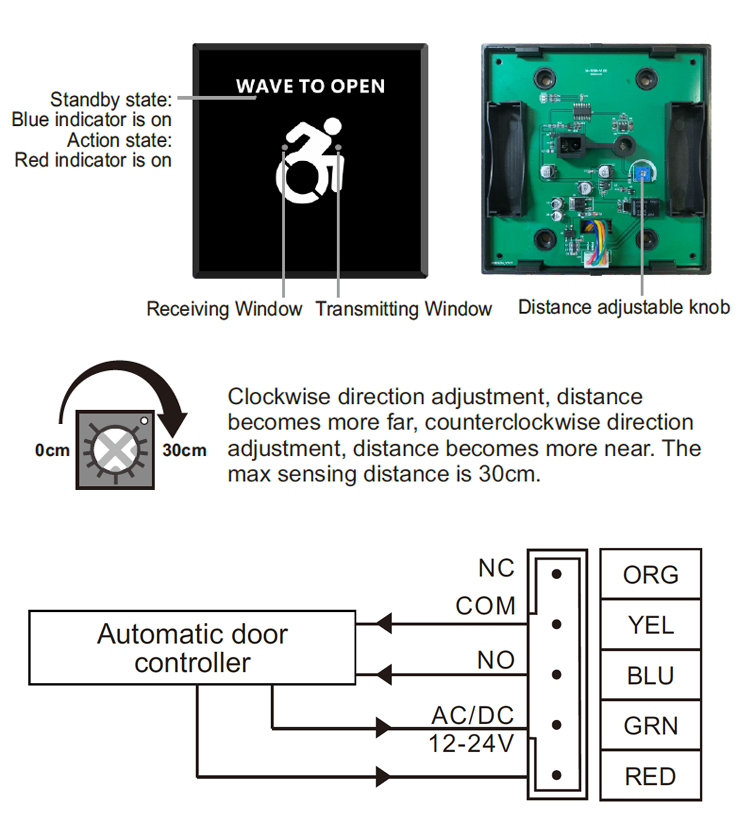

| Relay output | NO/NC |
| Relay connect capacity | 1A DC24V |
| Infrared modulation frequency | 38KHz |
| Response time | 30ms |
| Output holding time | 100ms |
| Working temperature | -45℃~45℃ |
| Working humidity | 10-90%RH |

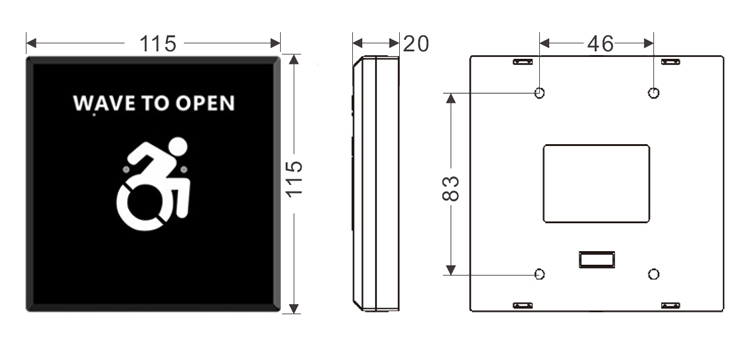

| Dimension | 115(L)x115(W)x20(H)mm |
