| Product Parameter | Parameter Description |
| JINYINGModel | JINYING-505MH |

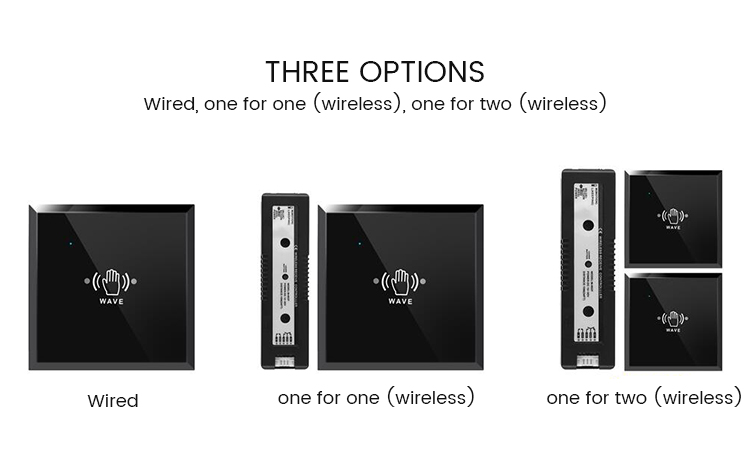

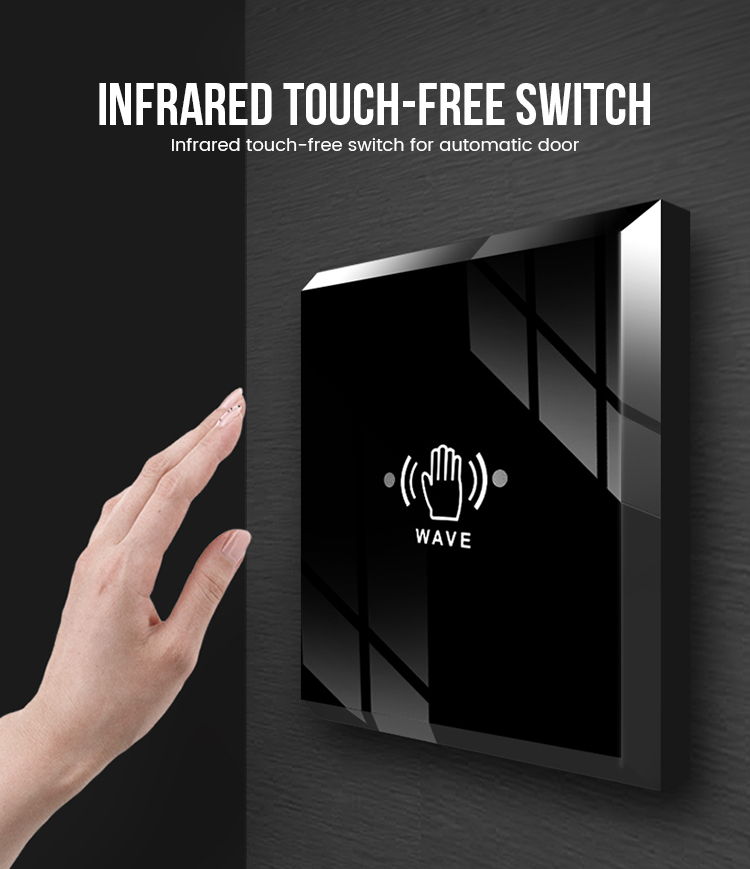

| Product Name | Wired Infrared Touchless Switch |
| Wireless transmitter | |
| Power supply | AC/DC 12-24V |
| Action current | 42mA ( DC 12V power supply) |

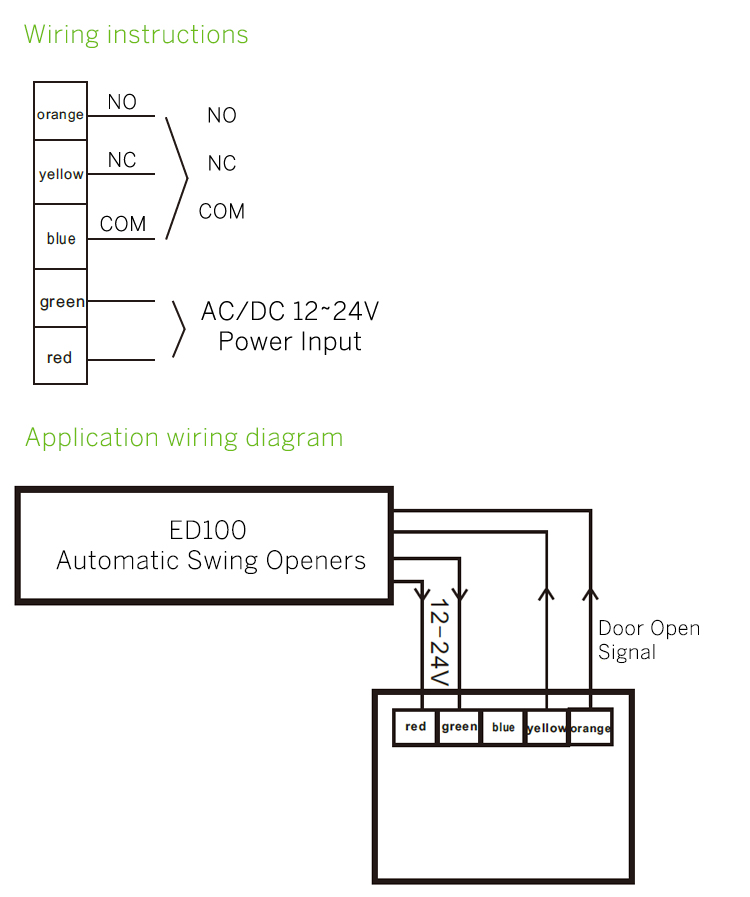

| Relay output | ON/ OFF |
| Relay contact capacity | 1A 24DC |
| Infrared modulation frequency | 38KHz |
| Response time | 30ms |
| Output maintain time | 100ms |
| Working temperature | - 42℃- 45℃ |
| Working humidity | 10- 90% RH |

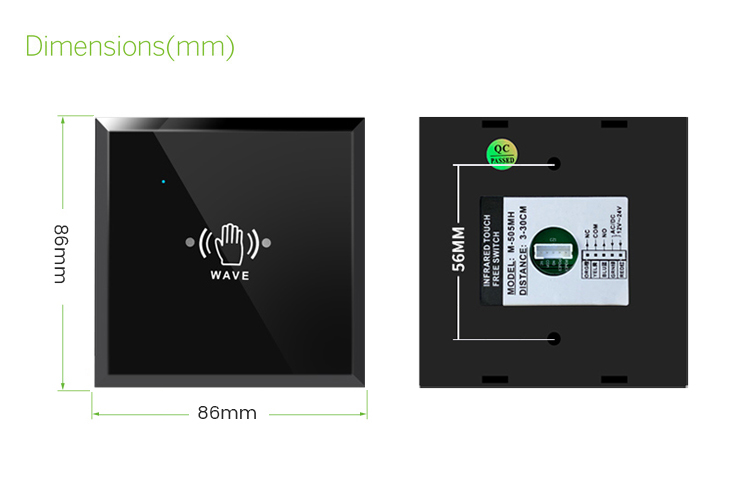

| Appearance size | 86X86mm（H）(panel) |
