JINYING-505MHW Wireless Infrared Touchless Switch

Inquiry now

Parameters

Dimensions

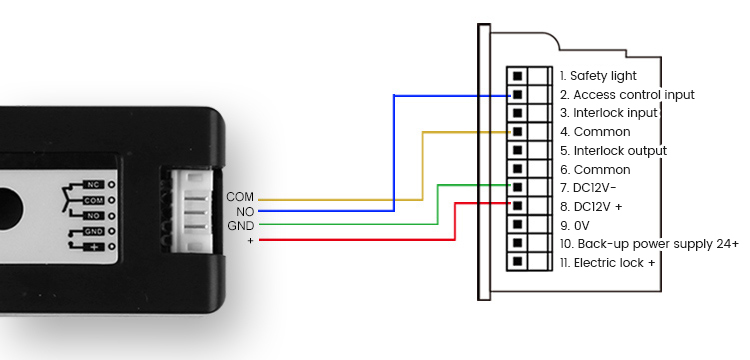

Diagram

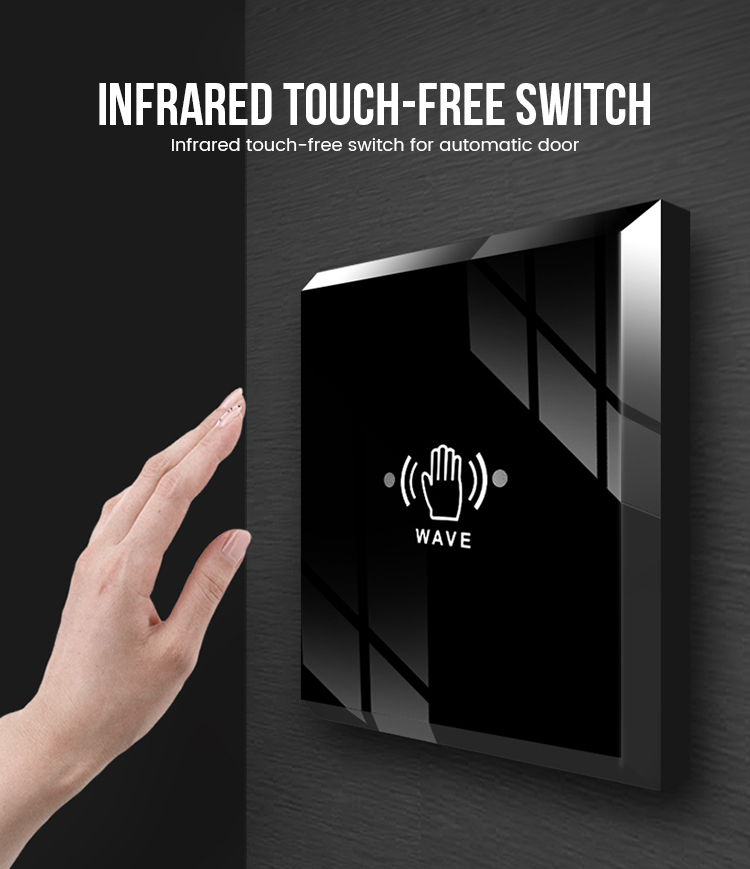

Wireless Infrared Touchless Switch

>Activetion mothed:Wave to open( technology:Capacitive induction chip）

>Using a capacitive sensor chip, by detecting the movement of the charge brought by the palm of the human body

>Max sensing distance :20CM

>Input power：AC/DC12V~24V

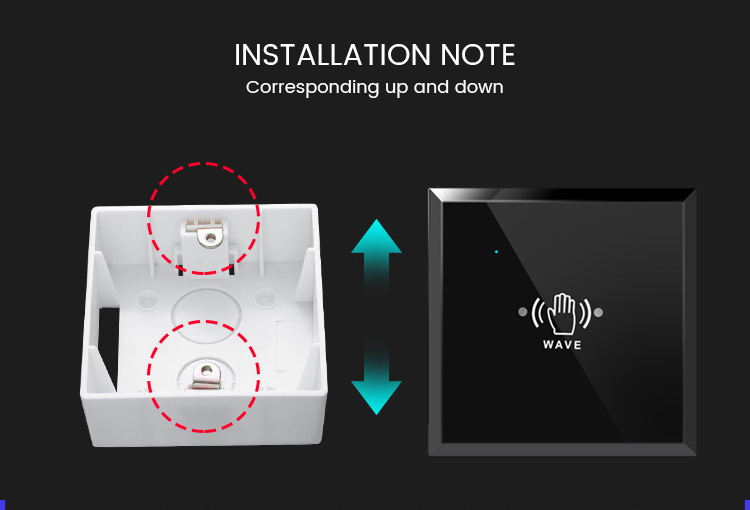

>Surface mounting

Product Parameter	Parameter Description
JINYINGModel	JINYING-505MHW
Product Name	Wireless Infrared Touchless Switch

Power supply	D C 1 2～3 0 V
Action current	74mA(DC12V power supply)
Main contact capacity (wireless receiver)	1 A 2 4 V D C
Contact holding time (wireless receiver)	1.5S
Standby current (transmitter)	≤80μA
Transmitting current (transmitter)	1 2 . 5 5 m A
Battery life (transmitter)	200 times/day, can use 220 days
Receiver sensitivity	-9 5 d b m
Launch distance	no barrier distance 30M

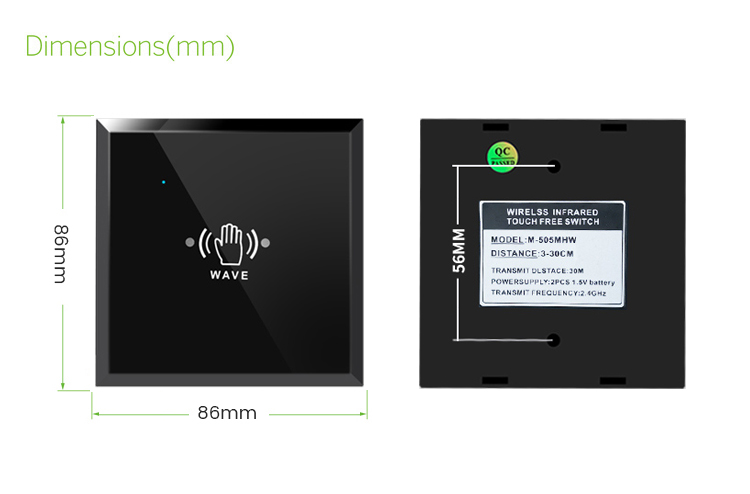

Appearance size (transmitter)	86mm×86mm
sensing distance	3-30cm
Appearance size (receiver)	110mm（L）×30mm（W）×15mm（H）
