JINYING-201S Hand Sensor Switch

  • Model:

    JINYING-201S
  • Brand:

    JINYING
  • Parameters

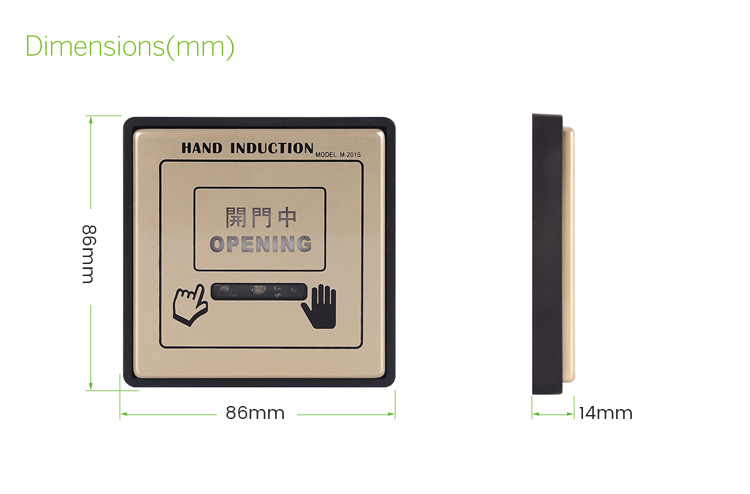

  • Dimensions

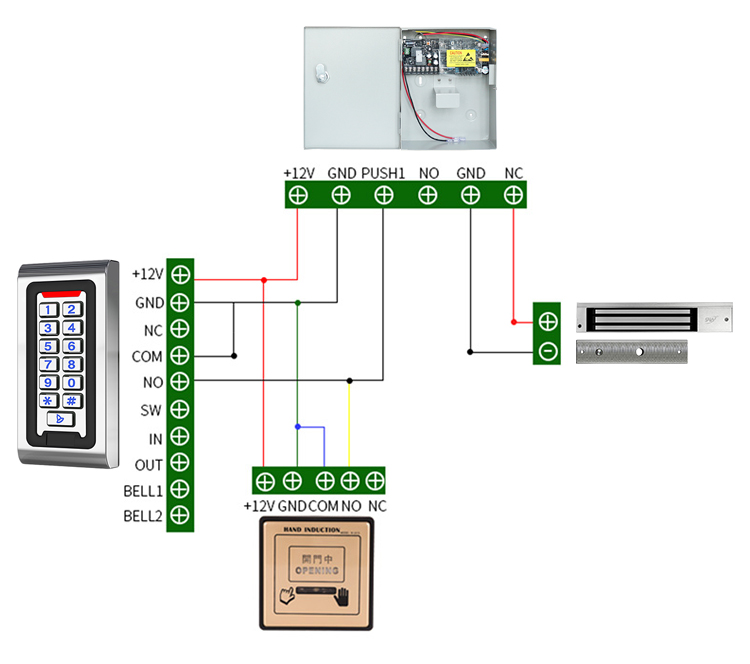

  • Diagram

JINYING-201S  Hand Inductive Switch


> Infared inductive switch with press or both function

> Open the door with hand( or reflective abject) induction, it is clean  and no pollution

> The induction distance:1—20cm( adjustable), set the distance based on your requirement

> High sensitive Infrared counter tube, Quick and convenient

> Adopt Infrared modulation and demodulation, there is no disturbance or to be disturbed

> 86 model board installation design meet your convenient installation freely

> Laser engraving process in the panel with backlight display, the style is new and fashion。

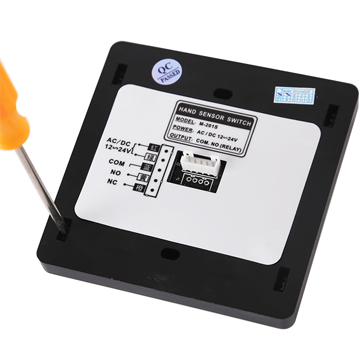

> Relay contact output, it is ready for any control equipment to connect



Product ParameterParameter Description
JINYINGModelJINYING-201S
Product NameHand Inductive Switch

Power inputAC/ DC1 2 V~24V
Induction distance1~20cm(Adjustable)
Modulation and demodulation Frequency:3 8 K H Z
Action current43mA(DC12V)
Standby Current8mA(DC12V)
Dimension86×86×14mm
