>Adopt uniformity frequency,high stability of wireless signal receiving and sending
>Siludification of PU varnished shell,dapper appearance with anti-off screw
>Operation frequency 315M,stability better than 10-5.
>Panel pushing with low-power consumption,long service life battery.
>Three point of trigger pressing design to ensure the effective action.
>With large capacity output,available to be used with autodoor,electric lock
and access controller
>Door open within 2s when signal received.
>Wide voltage input of AC/DC12-36V
>Function switch with voice indicator,power indicator turns green to confirm the validity of operation
| Product Parameter | Parameter Description |
| JINYINGModel | JINYING-202E |

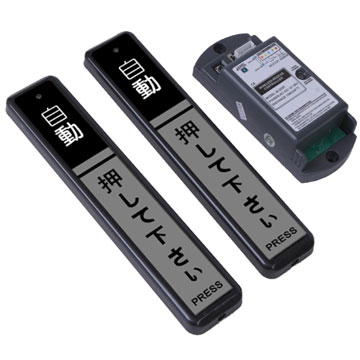

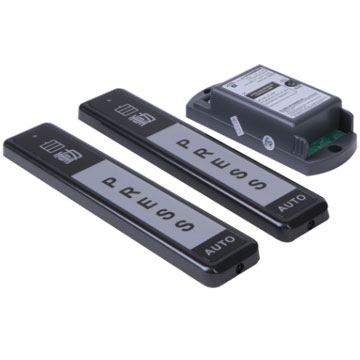

| Product Name | Wireless Touch Switch |
|
| Power Supply (Wireless Receiver) | AX/DC12V ~ 36V |
| Quiescent current | 15mA |
| Working current | 80mA ( DC12V Power Supply ) |
Relay contact capacity (Wireless Receiver) | 20A 14VDC |
| Power Supply (Wireless Receiver) | 6V (2/pcs 3V battery) |
| Emission Current | 3.9mA |
| Life of Battary | more than 20000times |
| Transmit distance | more than 25M |
| Dimension (Transmitter) | 203mm(L)×41mm(W)×12.5mm(H) |
| Dimension (Receiver) | 123mm(L)×50mm(W)×32mm(H) |
