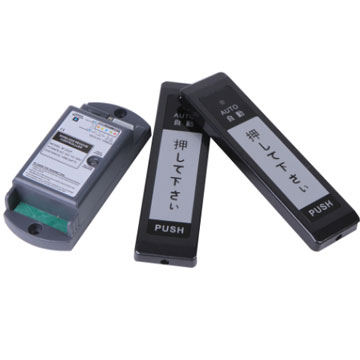

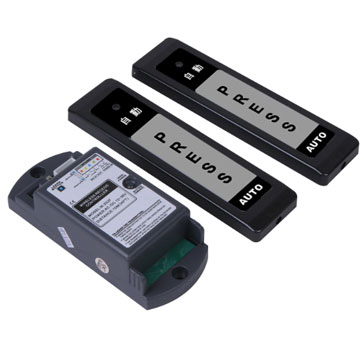

JINYING-202G Wireless Touch Switch

  • Model:

    JINYING-202G
  • Brand:

    JINYING
  • Parameters
  • Dimensions
  • Diagram

> Adopt uniformity frequency, high stability of wireless signal receiving and sending

>The inside button designed for waterproof and dustproof.

 It can prolong the service life of the product

>Operation frequency 315M,stability better than 10-5.

>Panel pushing with low-p口wer consumption, long service life battery

>Four point of trigger pressing design to ensure the effective action

>With large capacity output,available to  be used with autodoor, electric lock and access controller

>Code self-learn,easy to add switches.

>Wide voltage input of AC/DC12V-36V

>Power validity of indicator operation.turns green when push the panel to confirm the validity of operation.



Product ParameterParameter Description
JINYINGModel JINYING-202G
Product NameWireless Touch Switch

Power Supply (Wireless Receiver)AX/DC12V ~ 36V
Quiescent current15mA
Working current80mA ( DC12V Power Supply )
Relay contact capacity
 (Wireless Receiver)
20 A 14VDC
Snap action contact holding time
 (Wireless Receiver)
2s
Power supply(Transmitter)12V  2 Batteries, parallel operation
Battery life(Transmitter)200/day, 300 days
Dimension (Transmitter)150mm(L)×40mm(W)×12.5mm(H)
Dimension (Receiver)123mm(L)×50mm(W)×32mm(H)
