| Product Parameter | Parameter Description |
| JINYINGModel | JINYING-221 |
| Product Name | Automatic Time Switch |
| Voltage Rating | 12VDC |
| Minimum Interval | 1 Minute |
| Hysteresis | 2 sec/Day ( 25℃) |
| ON/OFF operation | 17 ON/OFF |
| Power Consuption | 7.5VA ( Max ) |
| Display | LCD |
| Switching Contact | 1 changeover switch |
| Time Control | 16 times on/off every day Or loop based on week |
| Service Life | Mechancal 10, Electrical 10 |
| Power Reserve | 3 years ( Lithium battery ) |
| Ambient Temperature | -10 ~ +40℃ |
| Ambient Humidity | 35 ~ 85%RH |

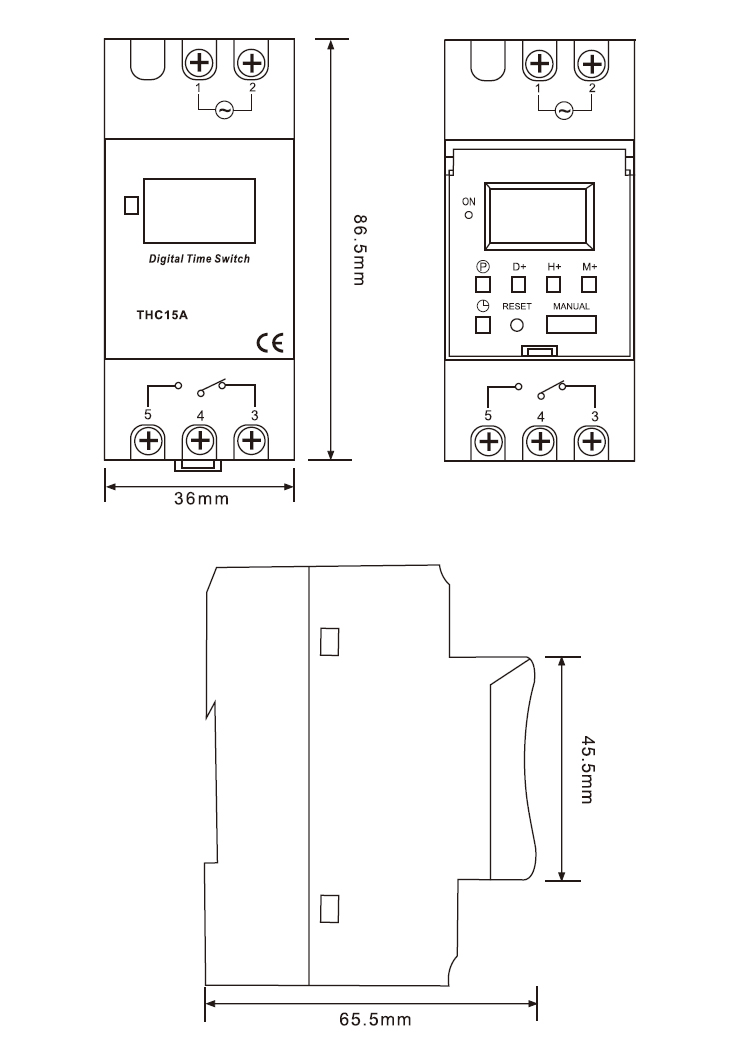

| Dimension | 86.5*36*65.5(mm) |
| Weight | approx 150g |
