Model:
EL-W220Brand:
JINYING| Product Parameter | Parameter Description |
| JINYING Model | EL-W220 |

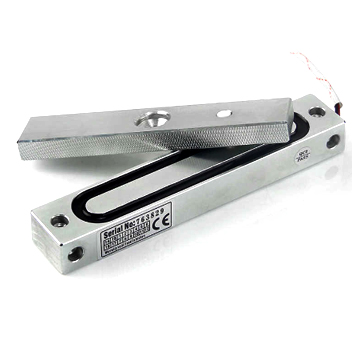

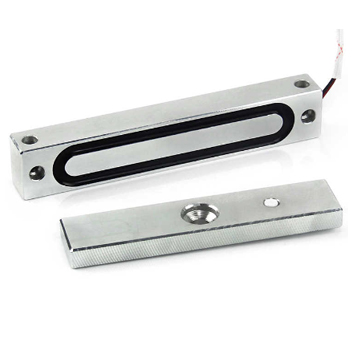

| Product Name | 220LBS Waterproof Magnetic lock |
| Fail Safe | Power on to lock |

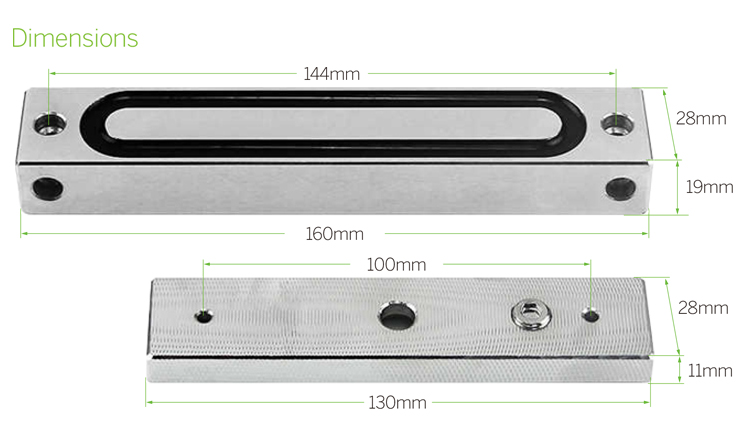

| Size | 160L*28W*19H mm |
| Armature Plate Dimension | 130L*28W* 11H mm |
| Holding force | 110KG(220LBS) |
| Current Draw | 12V200mA, 24V/100mA |
| Cover Finish | Anodized aluminum housing |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Operating temp | ≤+20°C |
| Surface Temp | -10℃ ~ 55℃ (14°F~131°F) |
| Humidity | 0~90%(non-comdensing) |
| Cover Finish | Anodized Aluminum |
| Lock Finish | Zinc |
| Arnature Plate Finish | Zinc |
| Weight | 1KG |
| Standard Packing | 20pcs |
