Home>PRODUCT>Electromagnetic Locks>180KG 350LBS

EL-350 Single Door 180KG Electromagnetic Lock

Magnetic lock with 350lbs holding force for single door ,like glass door, wooden door, fireproof door, sliding door and metal door.

  • Model:

    EL-350

  • Brand:

    JINYING
Inquiry now
  • Parameters
    •

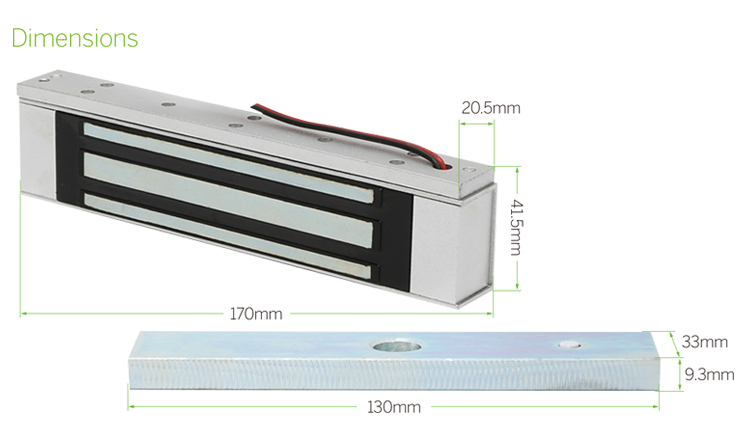

  • Dimensions
    •

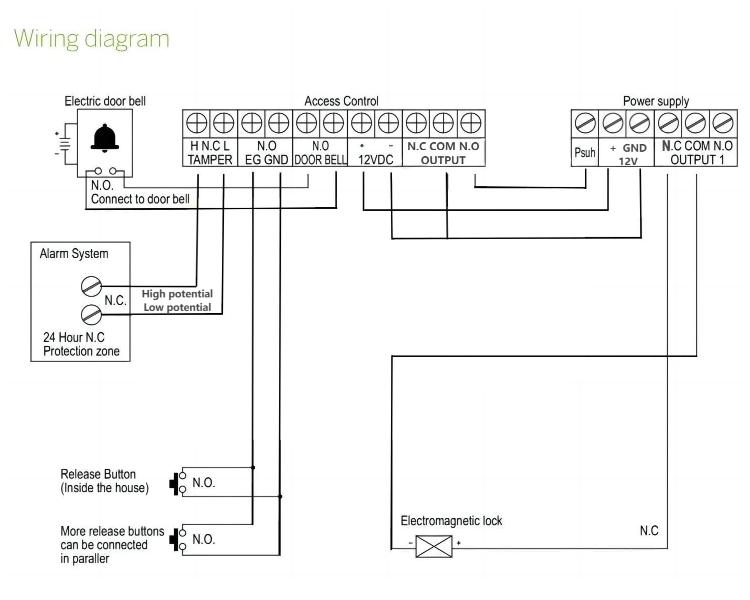

  • Diagram
    •
Product ParameterParameter Description
JINYINGModel No.EL-350
Product Name180KG Single Door Magnetic Lock

Lock Size170Lx41.5Wx20.5H(mm)
Armature Plate Dimension130Lx33Wx9.3H(mm)
Holding Force180KG(350LBS)
Input VoltageDC12V (Option DC24V)
Current12V/400mA(±10%)；24V/200mA(±10%)
Suitable

Wooden door , Glass door ,Metal door , Fireproof door

Surface Temp≤+20℃
Operating Temp-20℃~+55℃(-4—131°F)
Humidity0~90%(non-condensing)
Cover FinishAnodized aluminum
Lock FinishZinc
Armature Plate FinishZinc

Unit Weight1.02KG
Standard Package24PCS/carton
Carton Weight24.5KG
Carton Size30*35*16(cm)
