Model:
EL-350LSBrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel No. | EL-350LS |

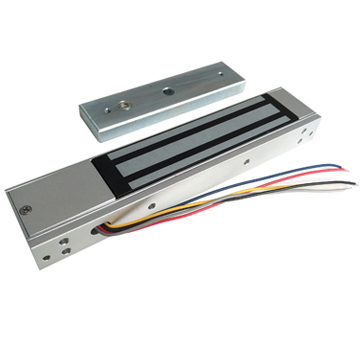

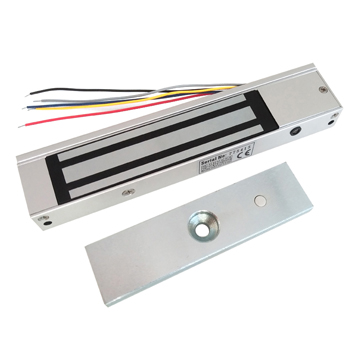

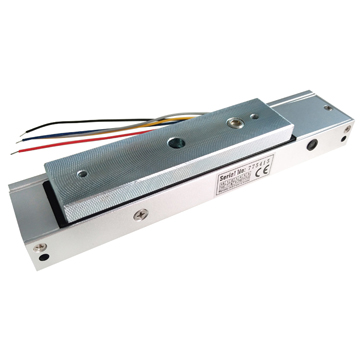

| Product Name | 180KG Single Door Magnetic Lock with LED |
| Lock Size | 200Lx41.7Wx21.7H(mm) |
| Armature Plate Dimension | 130Lx33Wx10.5H(mm) |
| Holding Force | 180KG(350LBS) |
| Input Voltage | DC12V & DC24V |
| Current | 12V/400mA(±10%)；24V/200mA(±10%) |
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -20℃~+55℃(-4—131°F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Unit Weight | 1.2KG |
| Standard Package | 20PCS/carton |
| Carton Weight | 24KG |
| Carton Size | 34.5*28*26(cm) |
