Home>PRODUCT>Electromagnetic Locks>180KG 350LBS

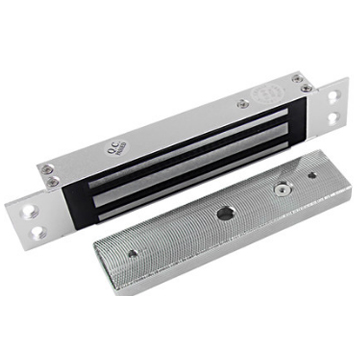

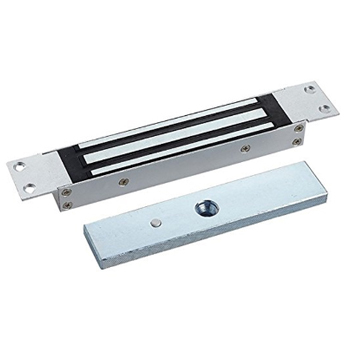

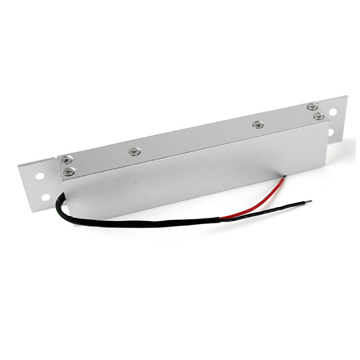

EM-350T Single Door 180KG Mortise Mount EM Lock

Embedded Door Magnetic lock with 350lbs holding force for single door ,like glass door, wooden door, fireproof door, sliding door and metal door.

  • Model:

    EM-350T

  • Brand:

    JINYING
Inquiry now
  • Parameters
    •

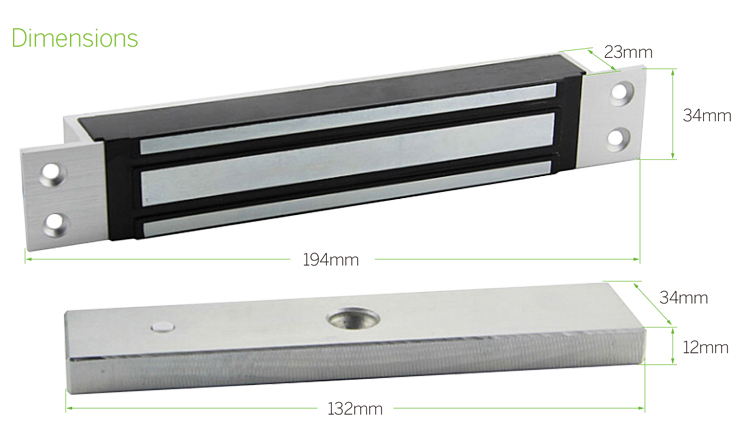

  • Dimensions
    •

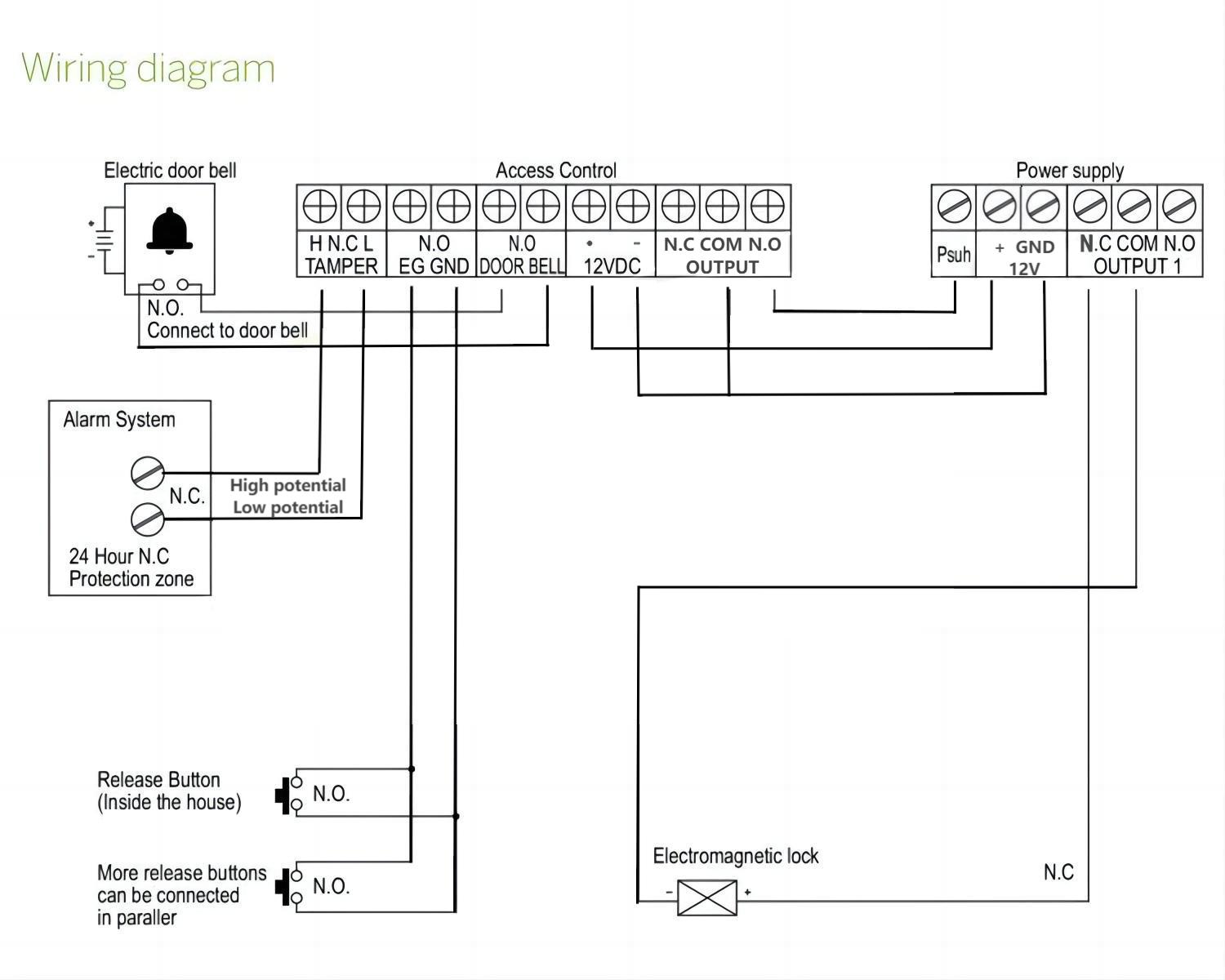

  • Diagram
    •
Product ParameterParameter Description
JINYINGModel No.EM-350T
Product Name350lbs Mortise Mount EM Lock

Lock Size194Lx34Wx23H(mm)
Armature Plate Dimension132Lx34Wx12H(mm)
Holding Force180KG(350LBS)
Input VoltageDC12V (Option DC24V)
Current12V/400mA(±10%)；24V/200mA(±10%)
SuitableWooden door , Glass door ,Metal door , Fireproof door
Surface Temp≤+20℃
Operating Temp-20℃~+55℃(-4—131°F)
Humidity0~90%(non-condensing)
Cover FinishAnodized aluminum
Lock FinishZinc
Armature Plate FinishZinc

Unit Weight1.02KG
Standard Package24PCS/carton
Carton Weight24.5KG
Carton Size30*35*16(cm)
