Home>PRODUCT>Electromagnetic Locks>180KG 350LBS

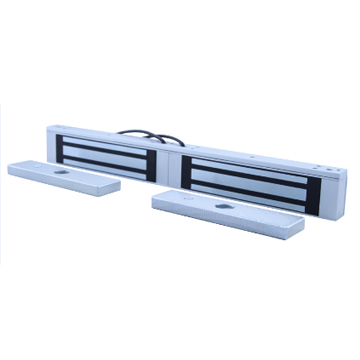

EL-350D Double Door 180KG Electromagnetic Lock

Double Door Electromagnetic lock with 350lbs holding force for Double door ,work with glass door, wooden door, fireproof door, sliding door and metal door.support OEM customized LOGO and Colored Package.

  • Model:

    EL-350D

  • Brand:

    JINYING
Inquiry now
  • Parameters
    •

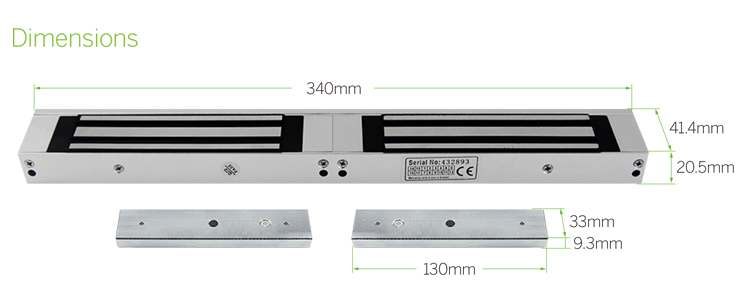

  • Dimensions
    •

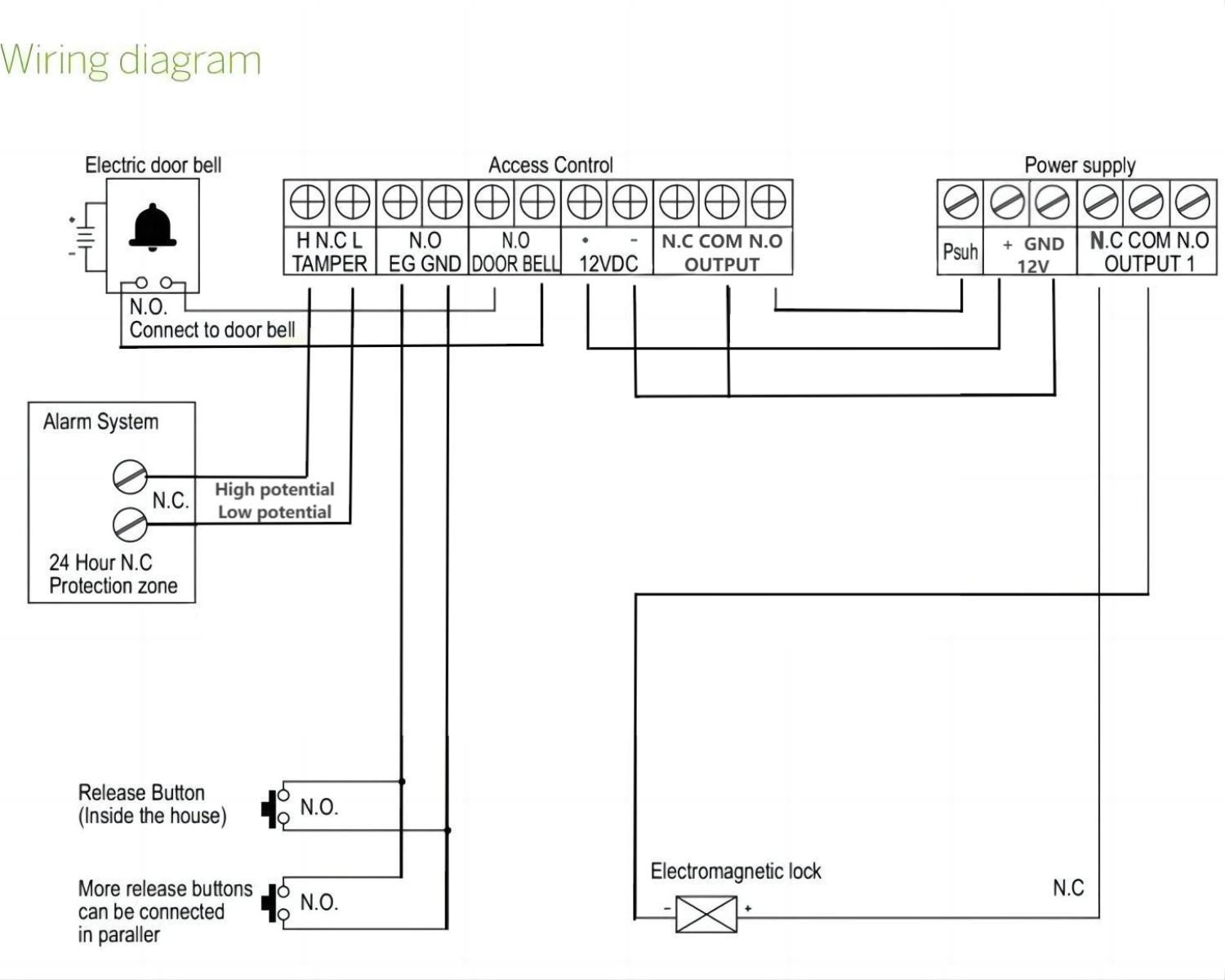

  • Diagram
    •
Product ParameterParameter Description
JINYINGModel No.EL-350D
Product Name180KG Double Door Magnetic Lock

Lock Size340Lx41.4Wx20.5H(mm)
Armature Plate Dimension130Lx33Wx9.3H(mm)
Holding Force180KG(350LBS)*2
Input VoltageDC12V (Option DC24V)
Current12V/400mA(±10%)；
24V/200mA(±10%)
SuitableWooden door , Glass door ,Metal door , Fireproof door
Surface Temp≤+20℃
Operating Temp-20℃~+55℃(-4—131°F)
Humidity0~90%(non-condensing)
Cover FinishAnodized aluminum
Lock FinishZinc
Armature Plate FinishZinc

Unit Weight2.04KG
Standard Package12PCS/carton
Carton Weight24.5KG
Carton Size30*35*16(cm)






Product Brochure
