Model:
EM-600TBrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | EM-600T |

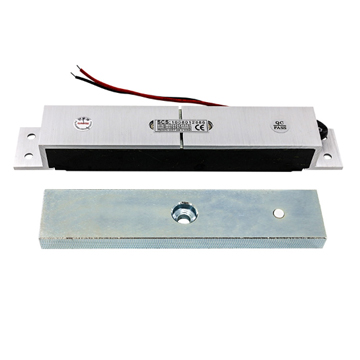

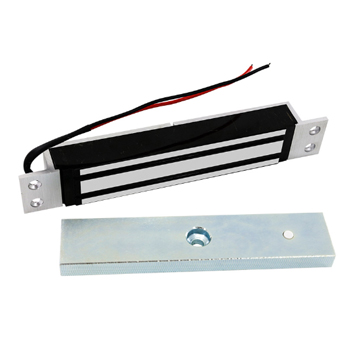

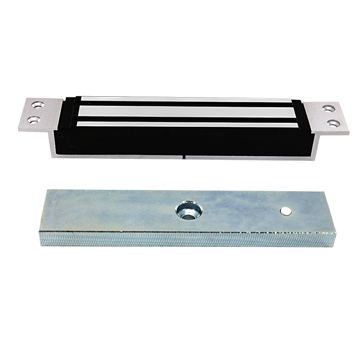

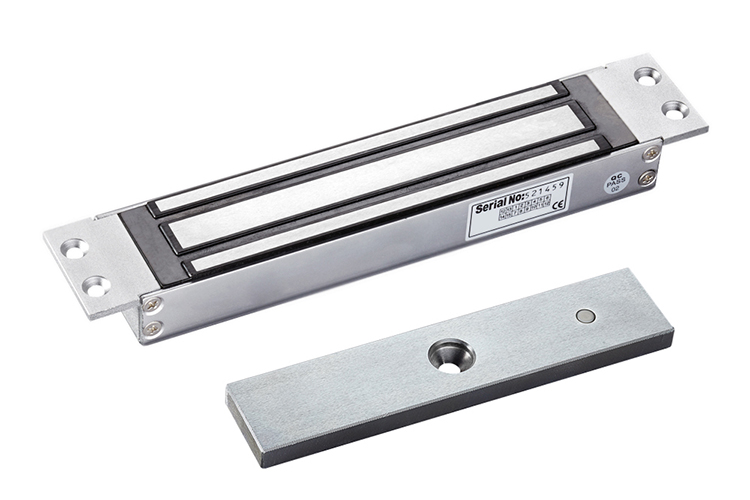

| Product Name | Embedded Door 600LBS Magnetic Lock |

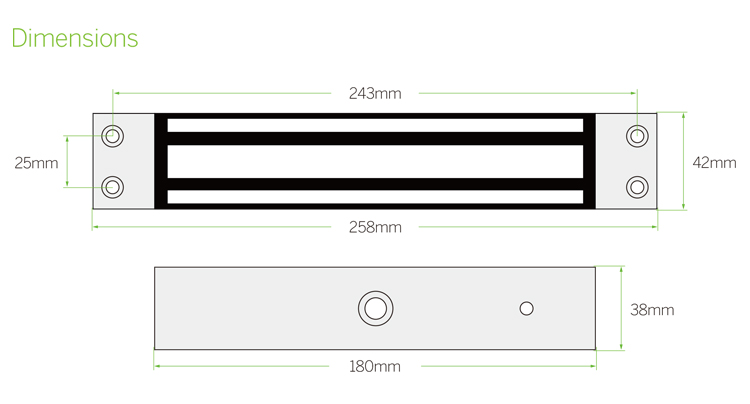

| Size | 258Lx42Wx25H(mm) |
| Armature Plate Dimension | 180Lx38Wx11H(mm) |
| Holding Force | 280kg(600Lbs) |
| Input Voltage | DC12V (Adjustable DC24V) |
| Current | 12V/500mA(±10%) ; 24V/250mA(±10%) |
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -20℃~+55℃(-4—131°F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
| Weight | 2.1kg |
