Model:
EL-600DBrand:
JINYING| Model No. | LED | Lock Sensor | Time Delay | Buzzer | Voltage |
| EL-600D | X | X | X | X | 12V |
| EL-600DS | √ | √ | X | X | 12V & 24V |
| EL-600DST | √ | √ | √ | X | 12V & 24V |
| EL-600DSZ | √ | √ | X | √ | 12V & 24V |
| Product Parameter | Parameter Description | ||||

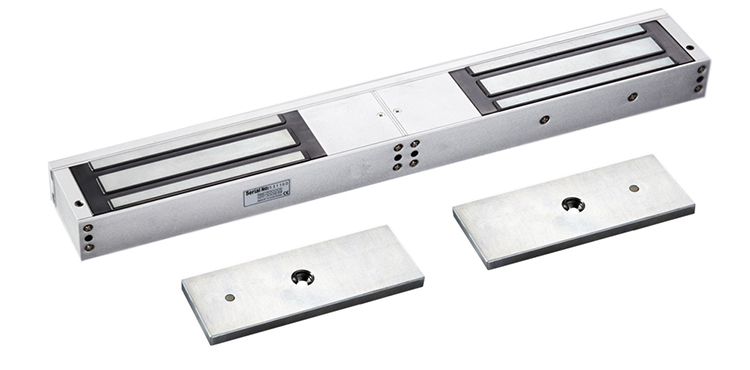

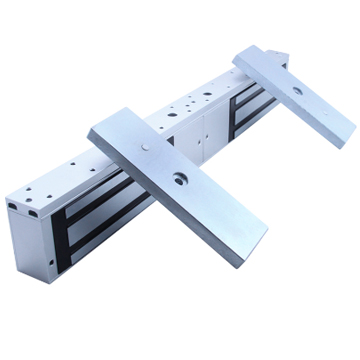

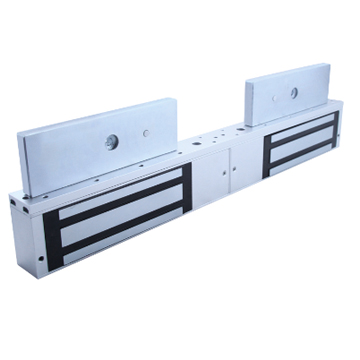

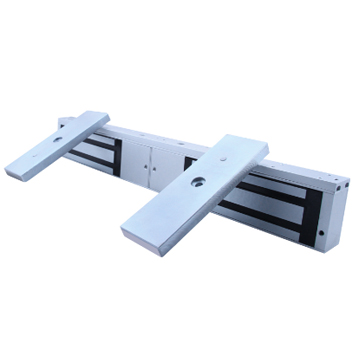

| Product Name | Single Door 600LBS Magnetic Lock | ||||

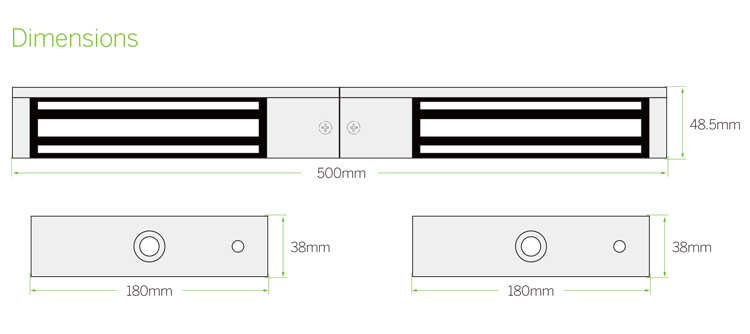

| Size | 500Lx48.5Wx25H(mm) | ||||
| Armature Plate Dimension | 180Lx38Wx11H(mm)*2 | ||||
| Holding Force | 280KG(600LBS)*2 | ||||
| Input Voltage | DC12V (Adjustable DC24V) | ||||
| Current | 12V/500mA(±10%) ; 24V/250mA(±10%) | ||||
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door | ||||
| Surface Temp | ≤+20℃ | ||||
| Operating Temp | -20℃~+55℃(-4—131°F) | ||||
| Humidity | 0~90%(non-condensing) | ||||
| Weight | 1.8KG | ||||
| Standard Package | 10PCS/CTS | ||||
| Carton Weight | 38KG | ||||
| Carton Size | 52*30*15 (cm) | ||||
