Model:
EL-W600Brand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | EL-W600 |

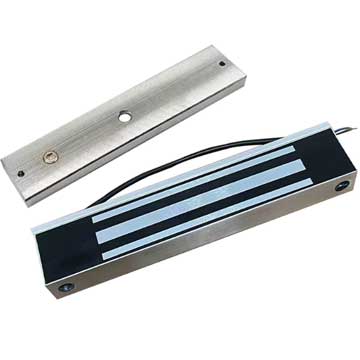

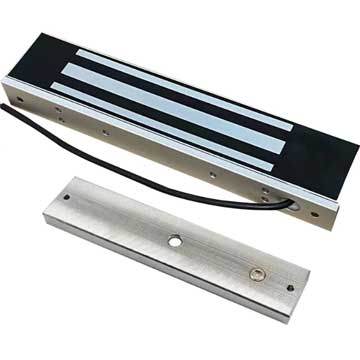

| Product Name | Waterproof 600LBS Magnetic Lock |

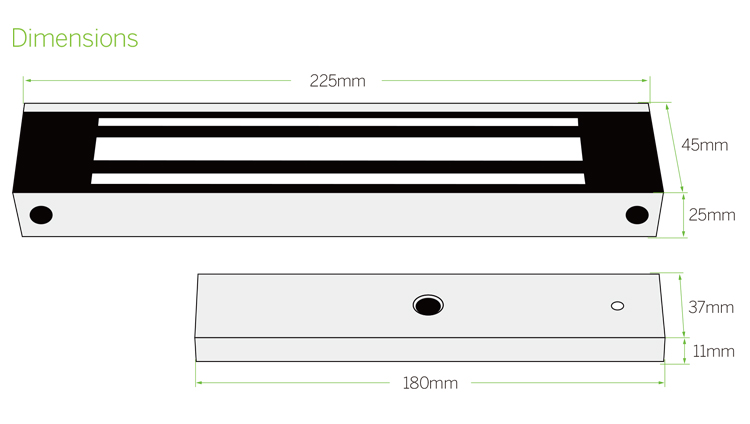

| Size | 222Lx48Wx25H(mm) |
| Armature Plate Dimension | 180Lx38Wx13H(mm) |
| Holding Force | 280kg(600Lbs) |
| Input Voltage | DC12V (Adjustable DC24V) |
| Current | 12V/500mA(±10%) ; 24V/250mA(±10%) |
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -20℃~+55℃(-4—131°F) |
| Humidity | 0~90%(non-condensing) |

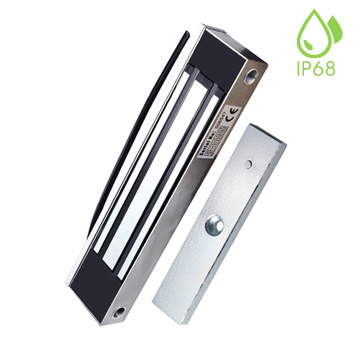

| Waterproof Level | IP68 |
| Weight | 2KG |
| Standard Package | 20PCS/CTS |
| Carton Weight | 40KG |
| Carton Size | 45.5*29*22 (cm) |
