Model:
EL-W600SBrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | EL-W600S |
| Product Name | Waterproof 600LBS Magnetic Lock |
| Material | 304 Stainless Steel |

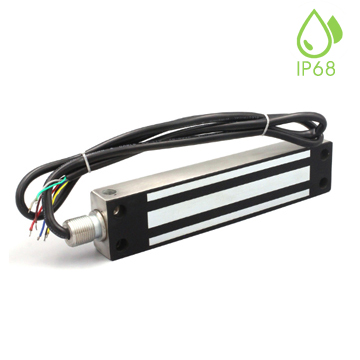

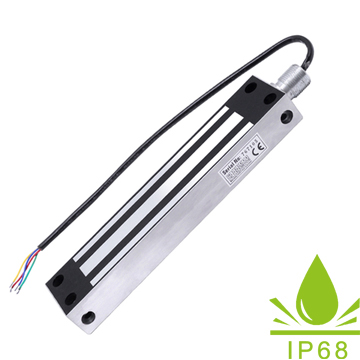

| Waterproof Level | IP68 |
| EL-W600S 4 wires | 12V & 24V adjustable |

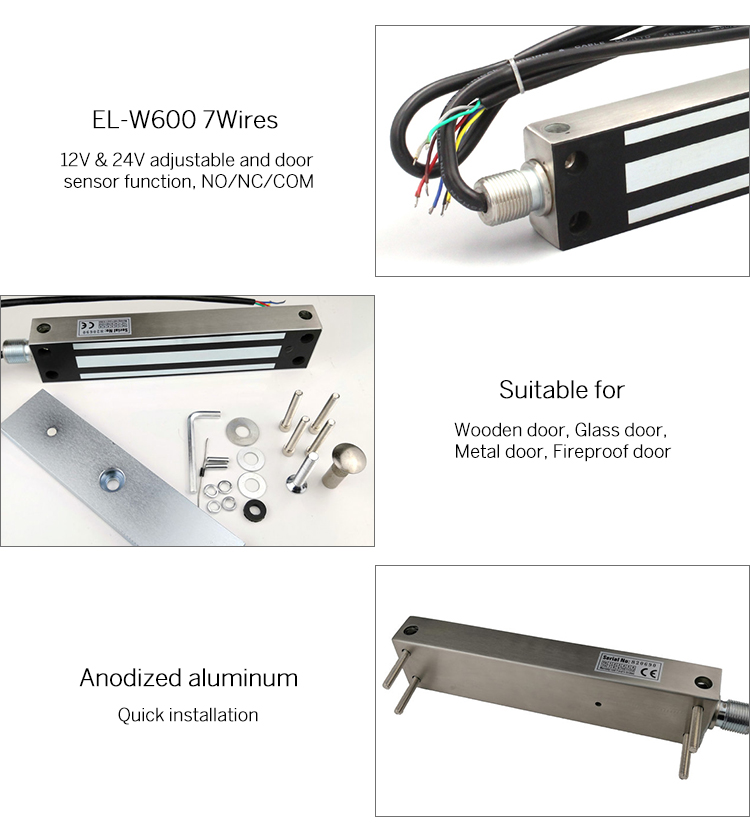

| EL-W600S 7 wires | 12V & 24V adjustable and door sensor function NO/NC/COM |
| Size | 220Lx47Wx25H(mm) |
| Armature Plate Dimension | 200Lx45Wx22.5H(mm) |
| Holding Force | 280kg(600Lbs) |
| Input Voltage | DC12V (Adjustable DC24V) |
| Current | 12V/500mA(±10%) ; 24V/250mA(±10%) |
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -20℃~+55℃(-4—131°F) |
| Humidity | 0~90%(non-condensing) |
| Weight | 2.5KG |
| Standard Package | 10PCS/CTS |
| Carton Weight | 25KG |
| Carton Size | 38*32*25 (cm) |
