Model:
LZ-600Brand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | LZ-600 |

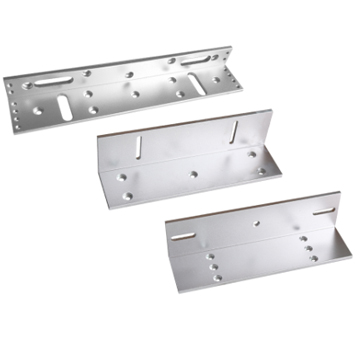

| Product Name | ZL Bracket for Inward Door |
| Material | High Strength Aluminum, Sandblast Finish |
| Suitable | Narrow Door |
| Opening Mode | 90 Degree Door |
| Finish for Shell | Anodized aluminum |
| Weight | 0.58KG |
| Standard Package | 30PCS/CTS |
| Carton Weight | 17.5KG |
| Carton Size | 41*27.5*35 (cm) |
> For In-Swing Door, install the lock body inside and then need to install the ZL Bracket at the same time.
> Discharge the mounting plate from lock body.
> Fix the L Bracket on the door frame and then fix the lock body on the L bracket.
> Assemble the Z Bracket and then fix it on the door frame.
> Fix the armature plate on the Z Bracket.
