Model:
EM-800TBrand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | EM-800T |
| Product Name | Embedded Door 800LBS Magnetic Lock |

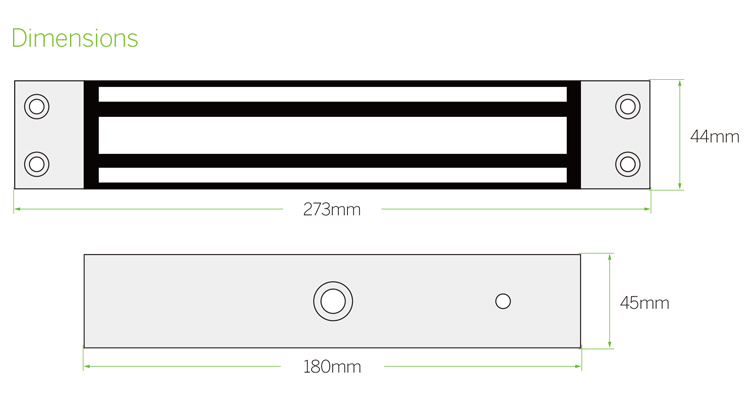

| Size | 273Lx44Wx25H(mm) |
| Armature Plate Dimension | 180Lx45Wx11H(mm) |
| Holding Force | 350kg(800Lbs) |
| Input Voltage | DC12V (Adjustable DC24V) |
| Current | 12V/500mA(±10%) ; 24V/250mA(±10%) |
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door |
| Surface Temp | ≤+20℃ |
| Operating Temp | -20℃~+55℃(-4—131°F) |
| Humidity | 0~90%(non-condensing) |
| Cover Finish | Anodized aluminum |
| Lock Finish | Zinc |
| Armature Plate Finish | Zinc |
