Model:
EL-800DSBrand:
JINYING| Model No. | Red&Green LED | Lock Sensor | Time Delay | Buzzer | Voltage |
| EL-800D | Red LED | X | X | X | 12V |
| EL-800DS | √ | √ | X | X | 12V & 24V |
| EL-800DST | √ | √ | √ | X | 12V & 24V |
| Product Parameter | Parameter Description | ||||

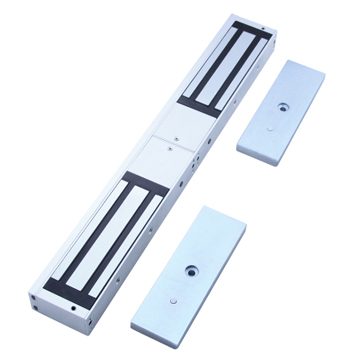

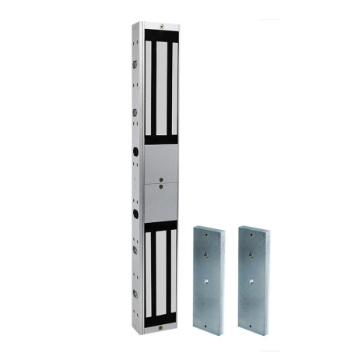

| Product Name | Double Door 800LBS Magnetic Lock | ||||

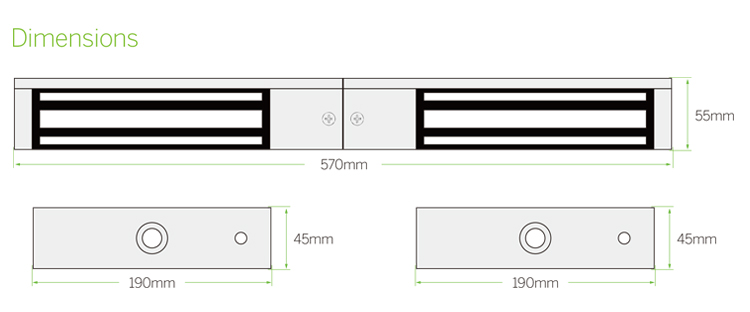

| Lock Size | 570Lx55Wx25H(mm) | ||||
| Armature Plate Dimension | 190Lx45Wx11H(mm)*2 | ||||
| Holding Force | 350KG(800LBS)*2 | ||||
| Input Voltage | DC12V (Adjustable DC24V) | ||||
| Current | 12V/500mA(±10%) ; 24V/250mA(±10%) | ||||
| Suitable | Wooden door , Glass door ,Metal door , Fireproof door | ||||
| Surface Temp | ≤+20℃ | ||||
| Operating Temp | -20℃~+55℃(-4—131°F) | ||||
| Humidity | 0~90%(non-condensing) | ||||
| Cover Finish | Anodized aluminum | ||||
| Lock Finish | Zinc | ||||
| Armature Plate Finish | Zinc | ||||
| Weight | 5KG | ||||
| Standard Package | 5PCS/CTS | ||||
| Carton Weight | 50KG | ||||
| Carton Size | 35*36*18 (cm) | ||||
