Home>PRODUCT>Electromagnetic Locks>500KG 1200LBS

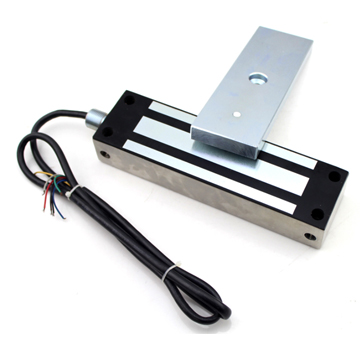

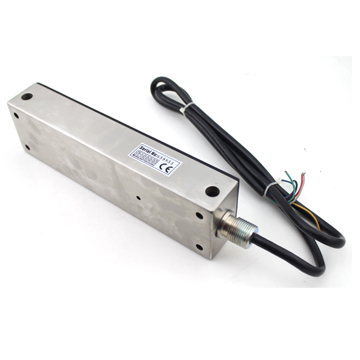

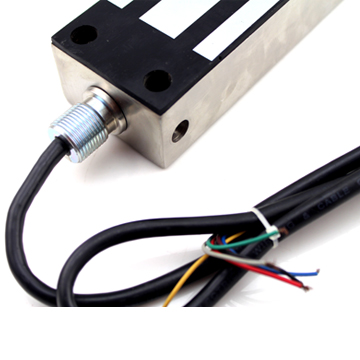

EL-W1200 Stainless Steel Waterproof 1200lbs Magnetic Lock

Reach IP68 waterproof Grade .The case is 100% waterproof treatment. Which made of stainless steel material.With Door status signal output

  • Model:

    EL-W1200

  • Brand:

    JINYING
Inquiry now
  • Parameters
    •

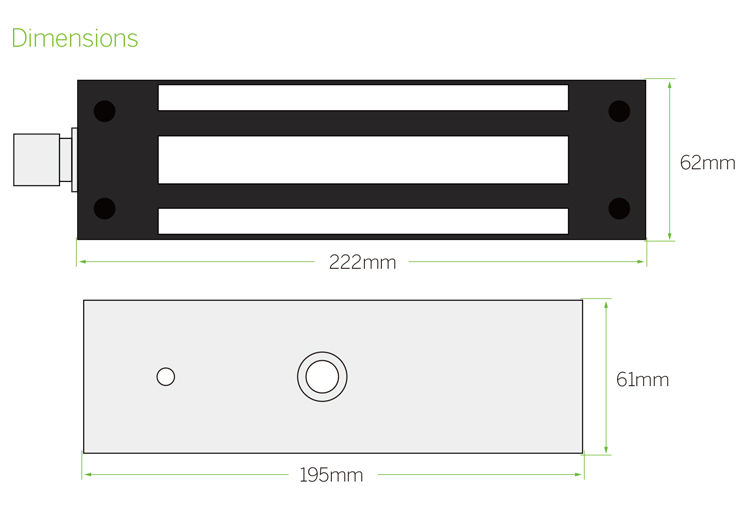

  • Dimensions
    •

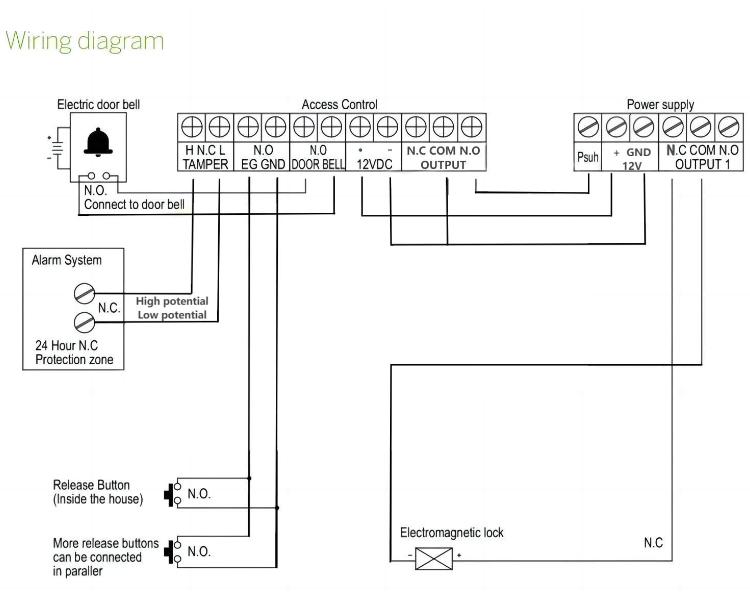

  • Diagram
    •
Product ParameterParameter Description
JINYINGModelEL-W1200
Product NameWaterproof 1200LBS Magnetic Lock

Material304 Stainless Steel
Waterproof  LevelIP68
EL-W1200 4 wiresDC12V (Adjustable DC24V)
EL-W1200 7 wires12V & 24V adjustable and door sensor function
NO/NC/COM
Lock Size220Lx47Wx25H(mm)
Armature Plate Dimension200Lx45Wx22.5H(mm)
Holding Force280KG(600LBS)
Current12V/500mA(±10%) ; 24V/250mA(±10%)
SuitableWooden door , Glass door ,Metal door , Fireproof door
Surface Temp≤+20℃
Operating Temp-20℃~+55℃(-4—131°F)
Humidity0~90%(non-condensing)

Weight4.5KG
Standard Package4PCS/CTS
Carton Weight18KG
Carton Size31*21*19 (cm)
