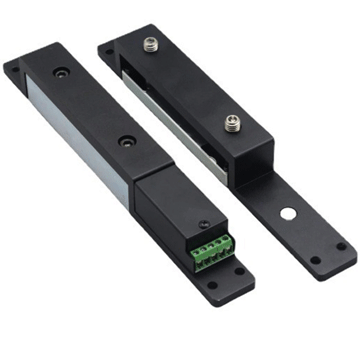

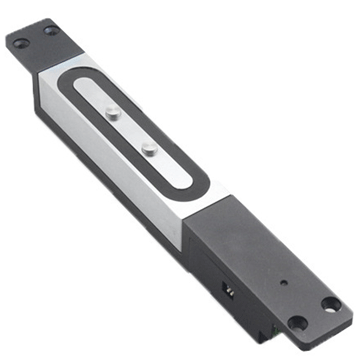

SL-1200 Shear Lock

  • Model:

  • Brand:

    JINYING
  • Parameters

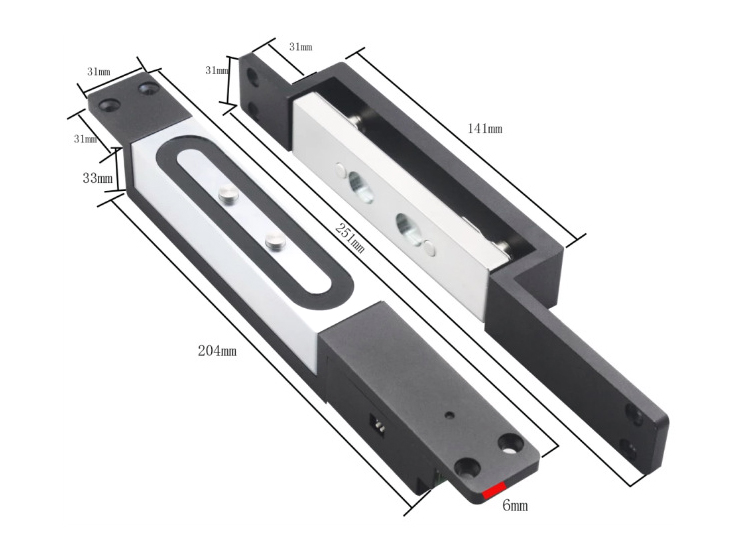

  • Dimensions
  • Diagram

> Brushed aluminum

> Holding force: Up to 2,000lbs(1200kg)

> Magnet size: 267x30x34mm

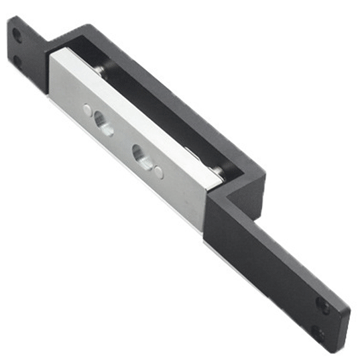

> Armature Plate size: 267x30x34mm

> Operating voltage: DC12V or DC24V

> Working current:

DC12V: Pull in: 1.5A, Holding: 0.55A.

DC24V: Pull in: 1.2A, Holding: 0.35A.



Product ParameterParameter Descr1ption
JINYINGModelSL-2000
Product NameShear Locks

MaterialBrushed aluminum
VoltageDC12V or DC24V
Working currentDC12V: pull in: 1.9A, holding: 0.55A.
DC24V: pull in: 1.2A, holding: 0.35A.
Holding force2,000lbs
Magnet size251x31x33mm
Armature Plate size251x31x33mm
FeedbackDoor sensor NO NC COM
Time delay0.3.6.9S adjustable
Weight2.2KG
