Model:
SL-2000Brand:
JINYING| Product Parameter | Parameter Description |
| JINYINGModel | SL-2000 |
| Product Name | Shear Locks |

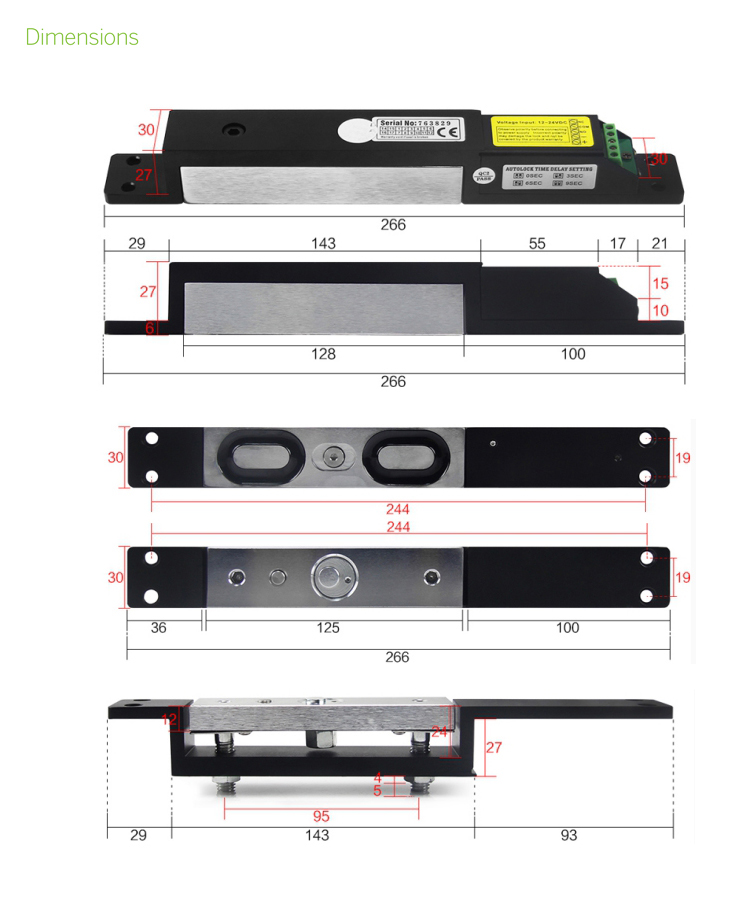

| Magnets Dimensions | 267Lx30Wx34H(mm) |
| Armature Plate Dimensions | 267Lx30Wx34H(mm) |
| Holding Force | Max 2000lbs(1260kg) |
| Lock Status Sensors | Dry contact NO,NC,COM |
| Relock Delay Timer | 0,3,6,9 seconds open time delay is adjustable |
| Rated Operating Voltage | DC 12V or 24V (selectable) |
| Current consumption | 540mA@12VDC / 300mA@24VDC |
| Optional Functions | LED,Buzzer |
| Surface finish for magnet | Zinc plated |
| Surface finish for armature plate | Zinc plated |
| Ambient temperature in °C | -10~+55℃(14-131F) |
| Suitable for | Wooden & Aluminum & Glass & Fireproof &Metal |
| Weight | 1.7KG |
| Standard Package | 10PCS |
| Carton Weight | 17.5KG |
| Carton Size | 40*25*22 (cm) |
