| Product Parameter | Parameter Description |
| JINYINGModel | BL-C2001A |

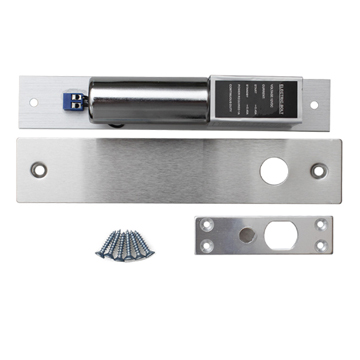

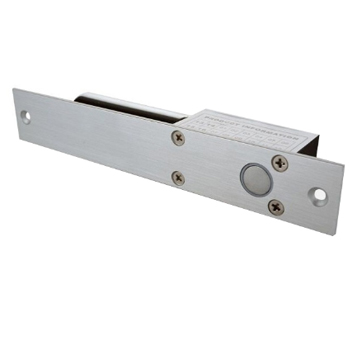

| Product Name | Normal Temperature Electric Bolt Lock |
| Feature | Fail-safe type (Power to lock) |

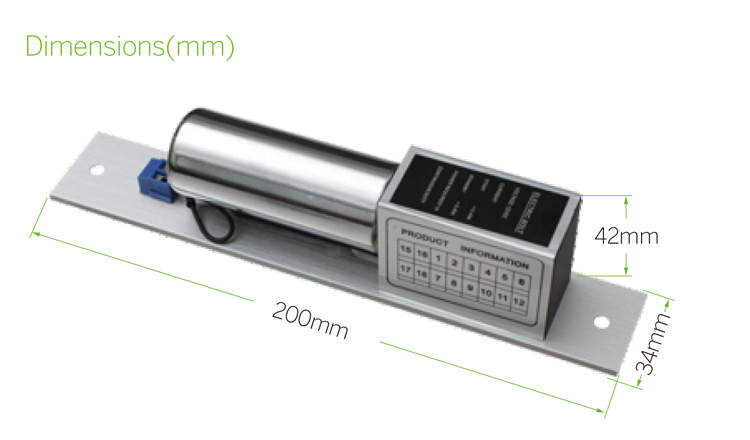

| Face Plate | default: 200Lx34WX42H(mm) option: 205Lx34Wx42H(mm) |
| Voltage | DC12V |
| Start Current | 750mA |
| Standby Current | 100mA |
| Solid Bolt | polishing housing, 1000Kg Holding Force |
| Suitable For | Wooden Door,Glass Door,Metal Door,Glass Door |
| Surface Temp | Normal Temperature |
| Induction Distance | 8mm |
| Operating temp | -10～+55℃(14~131F) |
| Operating Humidity | 0～90%(non-condensing) |
| Special Designed | Tested to 500000 cycles |
| Face place material | High Aluminum |
| JINYINGModel | BL-C2001A |
| Product Name | Electric Bolt Lock |
| Packing Quantity | 40 PCS/CTN |
| Packing Size(L*W*H) | 43*24*34.5 (cm) |
| Gross Weight | 25.3KG |
